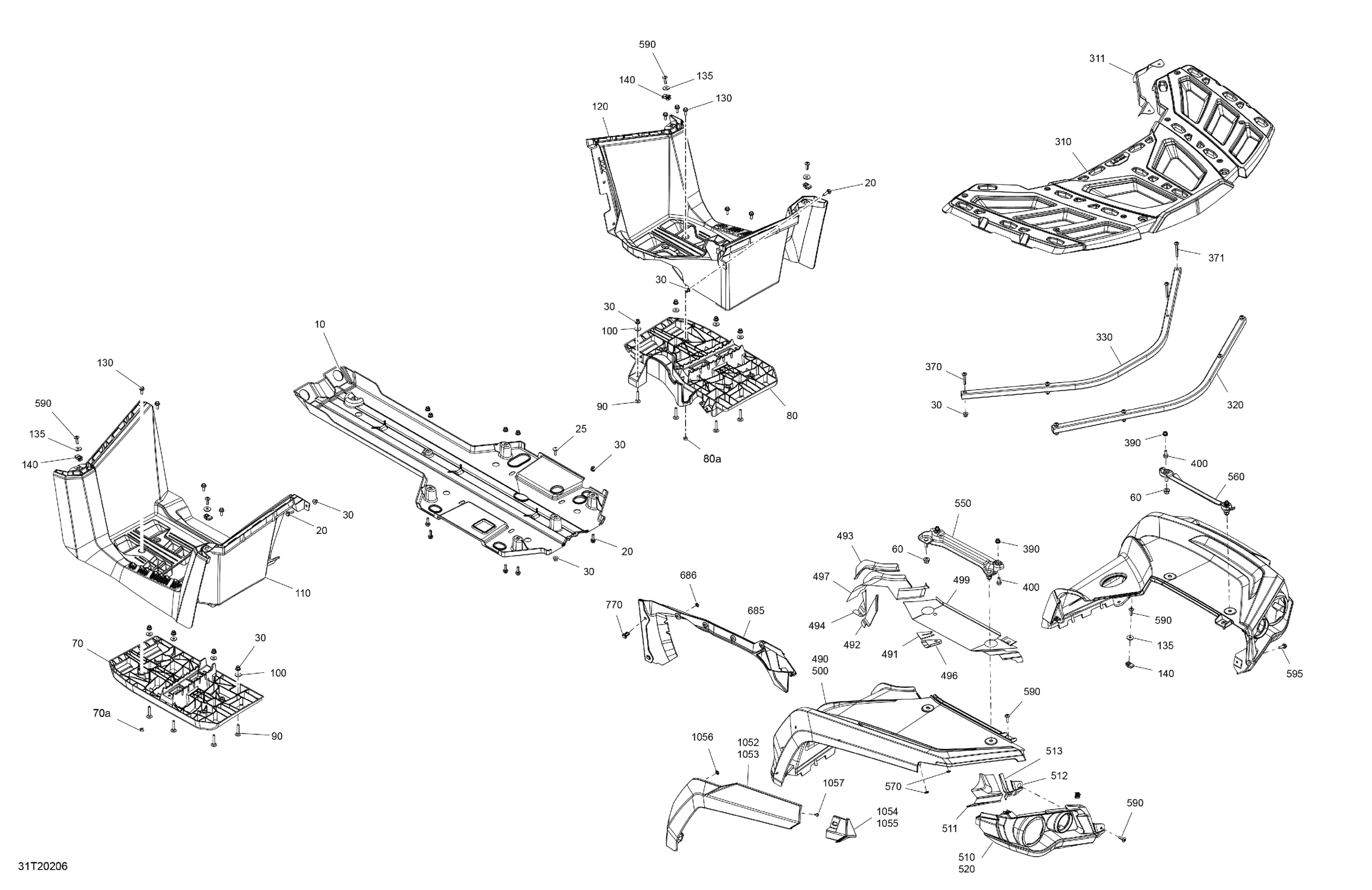

Can-Am Outlander T 570 EFI - PRO+ - T Regulation, 2020 Body - Rear Section - PRO+ Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.58

20

Hex. Flange Screw M6 X 20

207662054

$0.83

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

30

Flange Elastic Nut M6

233261434

$3.61

60

Hex. Flange Elastic Nut M8

233281434

$1.74

70

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

80

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

90

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Step

705007040

$92.28

120

RH Step

705007039

$119.97

130

Hex. Flange Screw M6 X 20

207662054

$0.83

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

310

Rack Kit | Europe, Int'l

715002784

$184.58

311

ESD Bracket

705013222

$44.58

320

Sectional Bent Tube

705016640

$35.35

330

Sectional Bent Tube

705016641

$39.20

370

Black, Torx Screw M6 X 35

250000646

$0.78

371

Screw-torx Button Head M6 X 40

235564054

$6.46

390

Insert Half Hex Body M6 x 1.0

250100199

$2.54

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

490

LH Rear Fender

705009756

Unavailable

491

Heat Shield

707002456

$3.98

492

Heat Shield

707002457

$3.98

493

Heat Shield

707002458

$16.89

494

Heat Shield

707002459

$3.98

496

Heat Shield

707002461

$3.98

497

Heat Shield

707002462

$3.98

499

Heat Shield

707002464

$3.98

500

Squadron Green, RH Rear Fender Kit

715005789

$128.43

510

LH Rear Facia | Europe

705006651

$14.71

511

Heat Shield

707002103

$9.29

512

Heat Shield

707002107

$2.31

513

Heat Shield

707002594

$0.91

520

RH Rear Facia | Europe

705006652

$14.71

550

LH Support

705007277

$28.43

560

RH Support

705007278

$28.43

570

Push Nut

732610072

$1.72

590

Torx Screw M6 X 20

250000722

$1.34

595

Hex. Flange Screw M6 X 16

207661654

$1.74

685

Hex. Flange Screw M6 X 16

207661654

$1.74

686

Push Nut

732610072

$1.72

770

Tuflok Plastic Rivet

293150230

$1.21

1052

LH Rear Mudguard

705003918

$12.31

1053

RH Front Mudguard

705003915

$12.31

1054

LH Mudgard Cap

705004888

$4.62

1055

RH Mudgard Cap

705004889

$4.62

1056

Push Nut

732610072

$1.72

1057

Self Tapping Screw 8 X 5/8

250001072

$1.12
