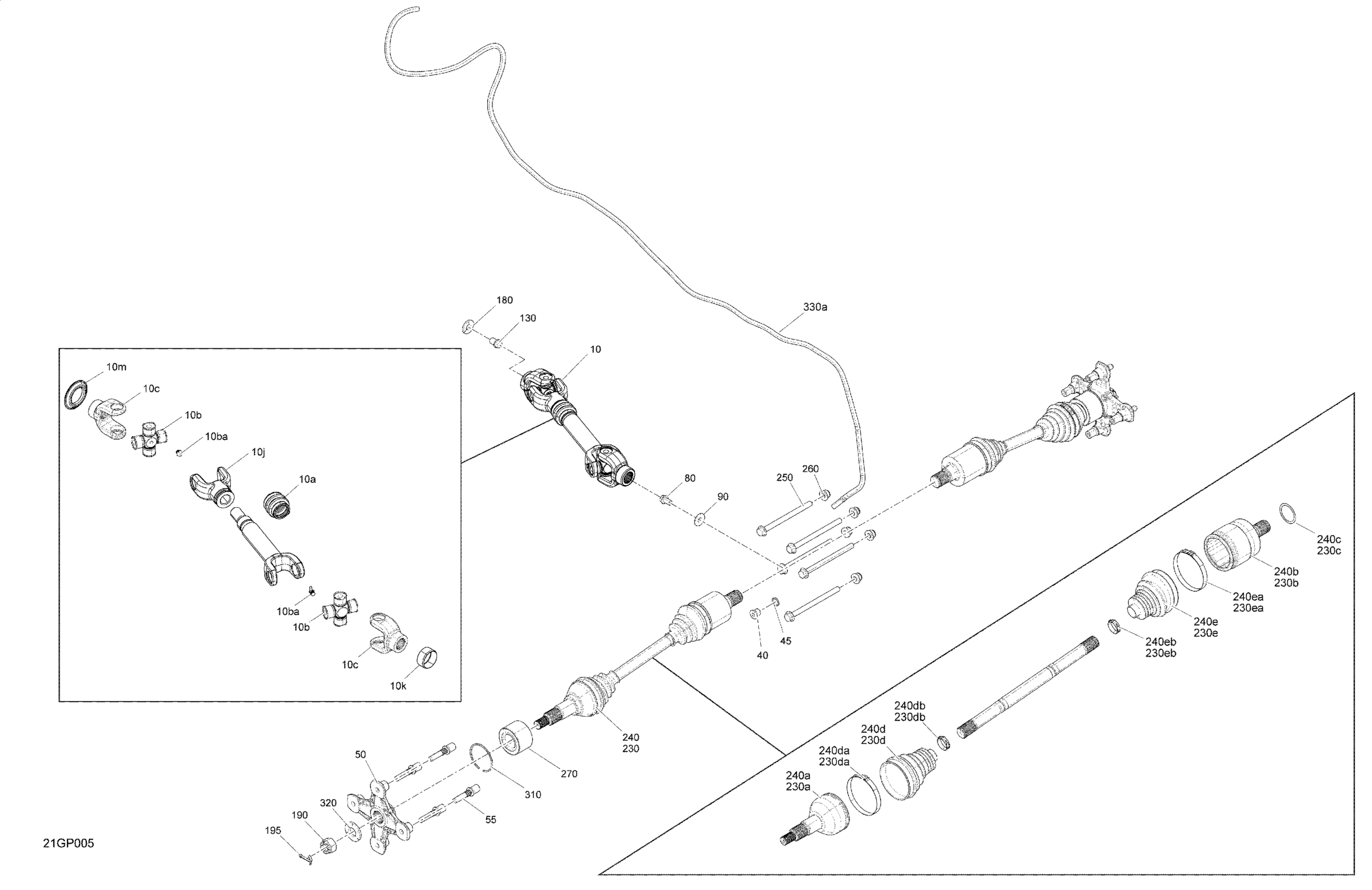

Can-Am Outlander L - 570 EFI 0002CGA00 0002CGB00 0002CGC00 0002CGD00 0002CGE00 0002CGF00 0002CGG00 0002EGA00 0002FGA00 0002FGB00 0002FGC00 0002FGD00 0002FGE00 0002FGF00 0002TGA00 0002TGB00 0002TGC00 0003ZGA00 0004AGA00 Drive - Rear - Common Parts - MAX Diagram

Description

Price

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$396.89

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$78.43

10ba

Grease Fitting

715900184

$4.62

10c

Fixe Yoke

715900296

$23.05

10j

Spline Yoke

715900106

$41.51

10k

Wear Ring | 4X4

705400036

$25.35

10m

Protector

705501123

$7.37

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub

705501900

$129.20

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Half Shaft Ass'y

705501897

$233.82

230a

CV Joint

705401344

$253.82

230b

Plunging Joint

715900304

$115.35

230c

Circlip

705501781

$5.38

230d

Boot Kit, Wheel Side

705401345

$41.51

230da

Oetiker Clamp

715900282

$4.39

230db

Oetiker Clamp, Small

715900283

$4.39

230e

Boot Kit, Differential Side

705401346

$41.51

230ea

Oetiker Clamp, Large

715900284

$4.39

230eb

Oetiker Clamp, Small

715900261

$4.39

240

LH Half Shaft Ass'y

705501898

$233.82

240a

CV Joint

705401344

$253.82

240b

Plunging Joint

715900304

$115.35

240c

Circlip

705501781

$5.38

240d

Boot Kit, Wheel Side

705401345

$41.51

240da

Oetiker Clamp

715900282

$4.39

240db

Oetiker Clamp, Small

715900283

$4.39

240e

Boot Kit, Differential Side

705401346

$41.51

240ea

Oetiker Clamp, Large

715900284

$4.39

240eb

Oetiker Clamp, Small

715900261

$4.39

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 10000Mm Long

219704410

$46.12
