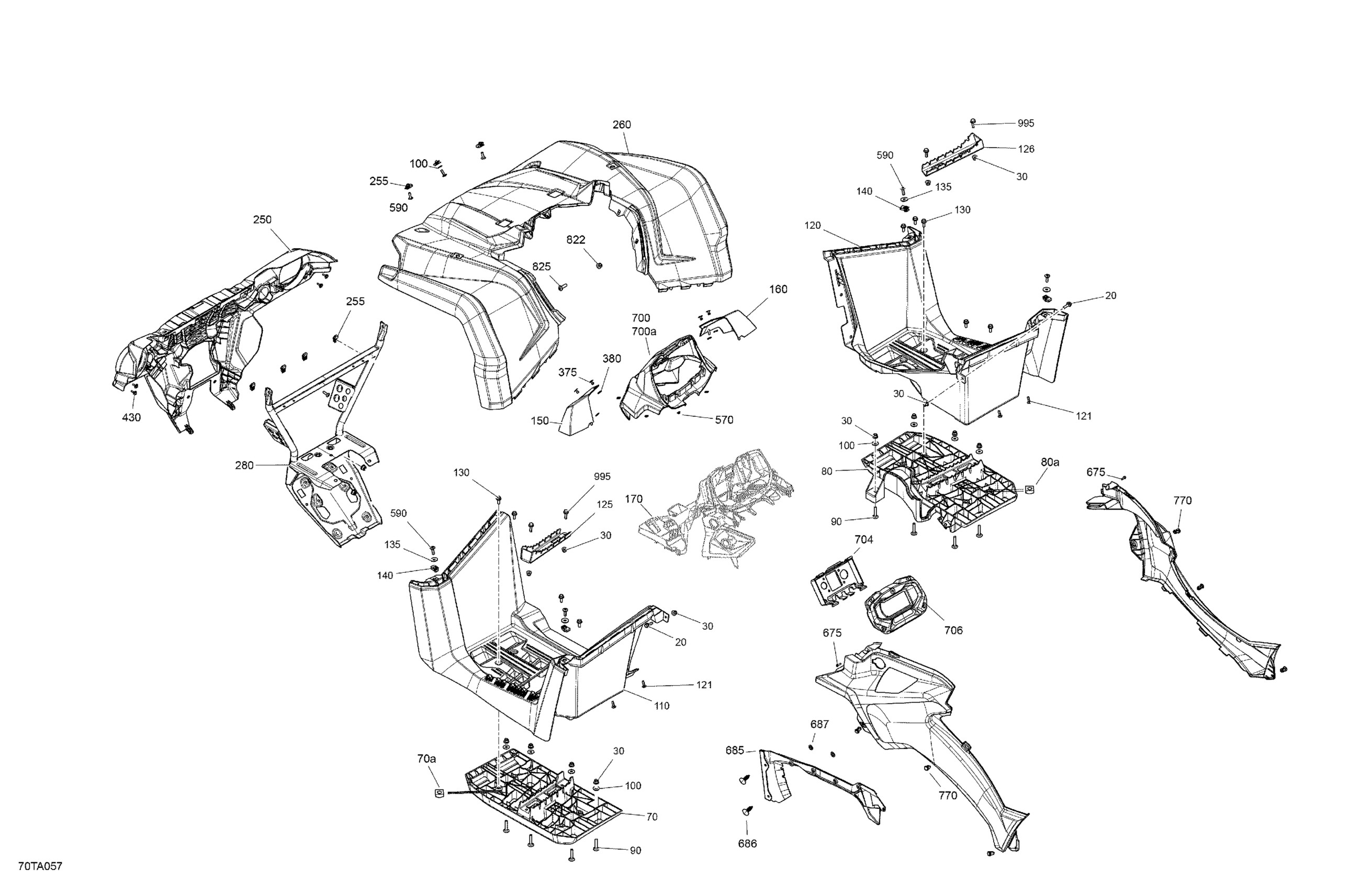

Can-Am Outlander 570 EFI - XMR - 2021 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.83

30

Flange Elastic Nut M6

233261434

$3.61

70

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

80

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

90

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Step

705007040

$92.28

120

RH Step

705007039

$119.97

121

Torx Screw K50 X 16

250000720

$1.39

125

LH Footrest

705004352

$34.58

126

RH Footrest

705005395

$39.97

130

Hex. Flange Screw M6 X 20

207662054

$0.83

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

150

LH Air Deflector

705006134

$24.58

160

RH Air Deflector

705006135

$23.05

170

Console Support Ass'y | Model-Europe/International

715006101

$54.58

250

Front Facia | Model-North America, International

705009334

$111.51

255

Panel Nut M6 X 1.0

250100198

$1.73

260

Granit Gray, LH Front Fender | North America

715007042

$189.97

280

Front Frame

705017337

$243.82

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

380

Washer

517124300

$0.16

430

Screw M4 X 16

250000725

$2.87

570

Push Nut

732610072

$1.72

590

Torx Screw M6 X 20

250000722

$1.34

675

Phillips Screw K40 X 16

250000723

$0.81

685

Deflector Body Panel

705014061

$39.97

686

Push Nut

732610072

$1.72

687

Black, Dart

293730006

$0.81

700

Gauge Support

705013983

$41.51

700a

Gauge Support

705013984

$18.43

703

Extruded Panel Nut M4 X 0.7

250100143

$6.77

704

Interior Gauge Support

705015548

$6.45

706

Gauge Trim

705015547

$20.74

708

Torx Head Screw M4 X 16

250000797

$1.63

770

Tuflok Plastic Rivet

293150230

$1.21

822

Elastic Flange Nut M8

233281464

$0.83

825

Pan Torx Screw M8 X 25

250000898

$1.74

995

Hex. Flange Screw M6 X 20

207662034

$1.74
