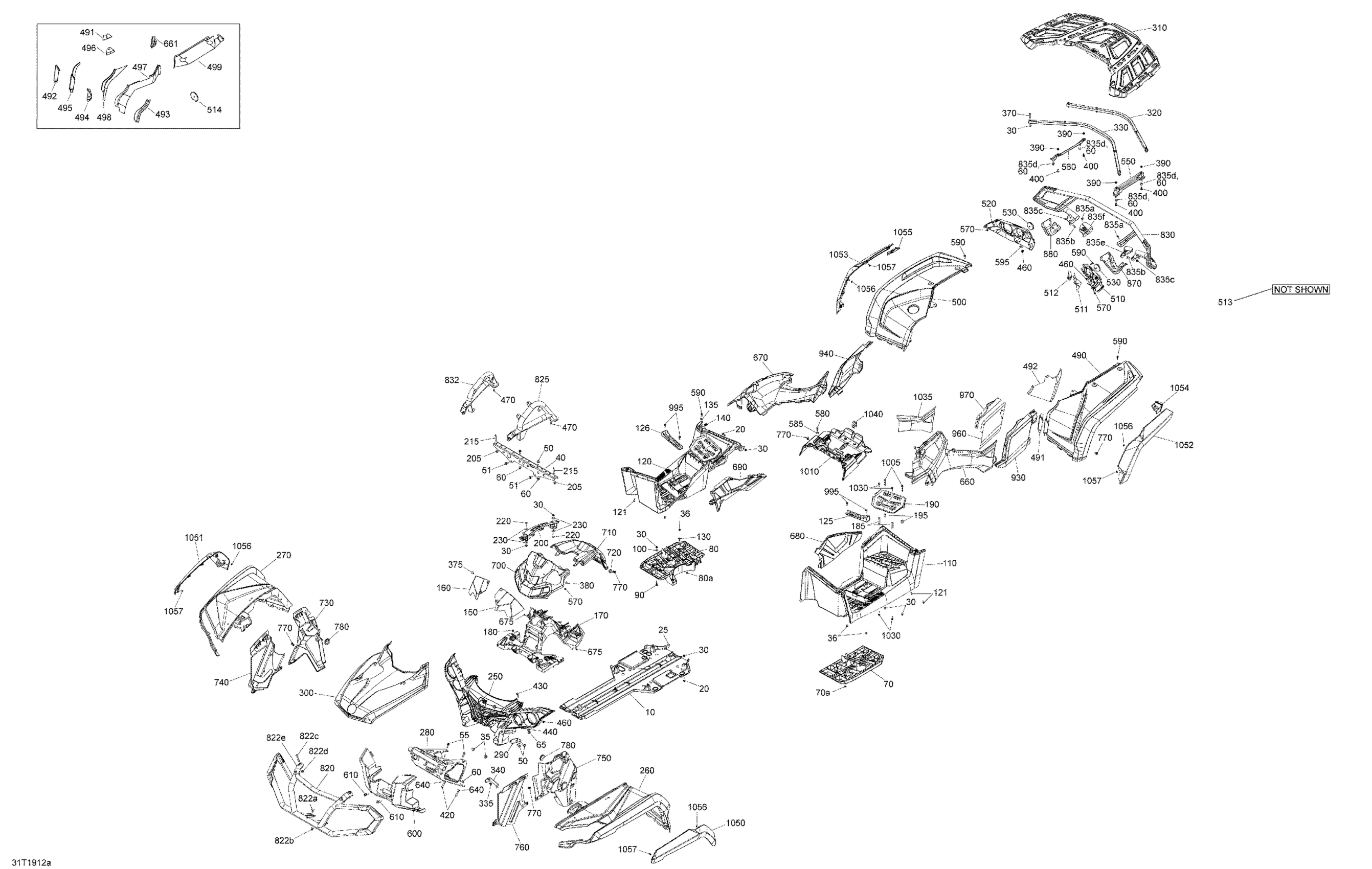

Can-Am Outlander 1000R EFI - International - European Communities, 2019 Body Package XMR Diagram

Protective Plate Kit

715002374

$59.67

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 20

207662054

$0.83

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M10

233201434

$1.63

Flange Elastic Nut M6

233261434

$3.61

Front Bumper Center Support

705006220

$79.82

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$1.74

Elastic Flange Nut M8

233281464

$0.83

LH Structural Footboard

705011540

$108.18

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$95.49

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

Flat Washer 6 mm

234062410

$0.64

LH Footboard

705005978

$162.66

RH Footboard

705005977

$162.66

Torx Screw K50 X 16

250000720

$1.39

LH Footrest

705004352

$30.57

RH Footrest

705005395

$35.79

Hex. Flange Screw M6 X 16

207661654

$1.74

Flat Washer

224061201

$1.11

Panel Nut M6 X 1.0

250100198

$1.73

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Rubber Bumper

293830005

$5.33

Coupling Nut, Large

705006819

$11.64

Black, Footrest | Package XMR, Engine 1000R

705015693

$64.90

Coupling Nut, Short

705006818

$8.87

Indicator | Package PRO International

715004085

$23.85

Hex. Flange Elastic Nut M8

233281434

$1.74

Socket Set Screw M8 x 50

206285044

$3.81

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Flat Washer

224061201

$1.11

Fascia

705012822

$108.18

Front Bumper Support

705016893

$314.90

Black, Hood

708302435

$129.82

Black, Hood | Model Liquid Gold

708302764

$532.06

Rack Kit | Europe, Int'l

715002784

$172.36

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Hex. Flange Screw M6 X 10

210261040

$1.25

LH Inner Fender Bracket

705007140

$18.63

Black, Torx Screw M6 X 35

250000646

$0.78

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Washer

517124300

$0.16

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Torx Screw M8 X 30

250000886

$1.74

Hex. Cap Screw M8 X 30

207183054

$3.61

Stainless Steel Flat Washer 8 mm

234081670

$0.56

Edge Clip

517302785

$0.70

Hex. Flange Screw, Scotch Grip

207551634

$1.66

Heat Shield

707002456

$3.81

Heat Shield

707002457

$3.81

Heat Shield

707002458

$16.39

Heat Shield

707002459

$3.81

Heat Shield

707002460

$3.81

Heat Shield

707002461

$3.81

Heat Shield

707002462

$3.81

Heat Shield

707002463

Unavailable

Heat Shield

707002464

$3.81

LH Rear Facia | North America, International

705006643

$14.27

Heat Shield

707002103

$8.66

Heat Shield

707002107

$1.91

Heat Shield

707002293

$8.66

Heat Shield

707002465

$3.81

RH Rear Facia | North America, International

705006650

$14.27

Red Reflector

705011221

$11.96

LH Support

705007277

$27.58

RH Support

705007278

$27.58

Push Nut

732610072

$1.72

Push Nut

732610072

$1.72

Hex Flange Screw M6 X 25

250000841

$6.15

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

Hex. Flange Screw M6 X 16

207661654

$1.74

Front Guard Plate | North America, International

705006299

$46.24

Socket Screw M10 x 30 | XT

205003044

$2.61

Ring

705004497

$3.87

Heat Shield

707002467

$3.81

Phillips Screw K40 X 16

250000723

$0.81

Deflector_Body Panel Kit

715007008

$49.97

Engine Cover

705003444

$18.63

Gage Support

705006373

$40.27

Dash Kit | Europe, Int'l

715002783

$58.18

Grommet

705003264

$3.43

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.18

Bumper F B-354

705014576

$259.67

Can-Am Red, Front Bumper | P-XMR White/Red/Black

705014575

$259.67

Carriage Bolt, M8 X 20

207782044

$1.56

Hex. Flange Elastic Nut M8

233281434

$1.74

Torx Screw M8 X 55

250000535

$2.63

Elastic Flange Nut M8

233281464

$0.83

Yellow, Upper Bracket

705012126

$42.51

Red, Upper Bracket

705009891

$42.51

Sunburst Yellow, LH Rad Bracket

705013936

$219.37

Red, LH Bracket | P-XMR White/Red/Black

705013934

$223.10

Sunburst Yellow, Rear Bumper

705014580

$216.39

Can-Am Red, Rear Bumper | P-XMR White/Red/Black

705018601

$267.88

Sunburst Yellow, RH Rad Bracket

705013937

$219.37

Red, RH Rad Bracket | P-XMR White/Red/Black

705013935

$223.10

Stainless, Torx Screw M6 X 30

250000842

$1.74

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

LH Bracket | XT

705005094

$6.39

RH Bracket | XT

705005095

$6.39

LH Rear Bracket | XT

705008164

$33.55

RH Rear Bracket | XT

705008165

$33.55

LH Extension Panel

715001897

$24.60

RH Extension Panel

705004348

$23.85

Heat Shield

705006870

$4.76

Heat Shield

705006871

$4.76

Hex. Flange Screw M6 X 20

207662034

$1.74

Hex. Flange Screw M6 X 45

207664536

$2.35

Seat Holder

705007948

$52.21

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Heat Shield

705008438

$8.66

Rod Cap

708200462

$2.97

LH Mud Guard

705006988

$34.30

RH Mud Guard

705006989

$33.55

LH Rear Mudguard

705003918

$11.51

RH Rear Mudguard

705003920

$11.51

LH Mudgard Cap

705004888

$3.81

RH Mudgard Cap

705004889

$3.81

Push Nut

732610072

$1.72

Self Tapping Screw #8 X 5/8

250000202

$1.25
