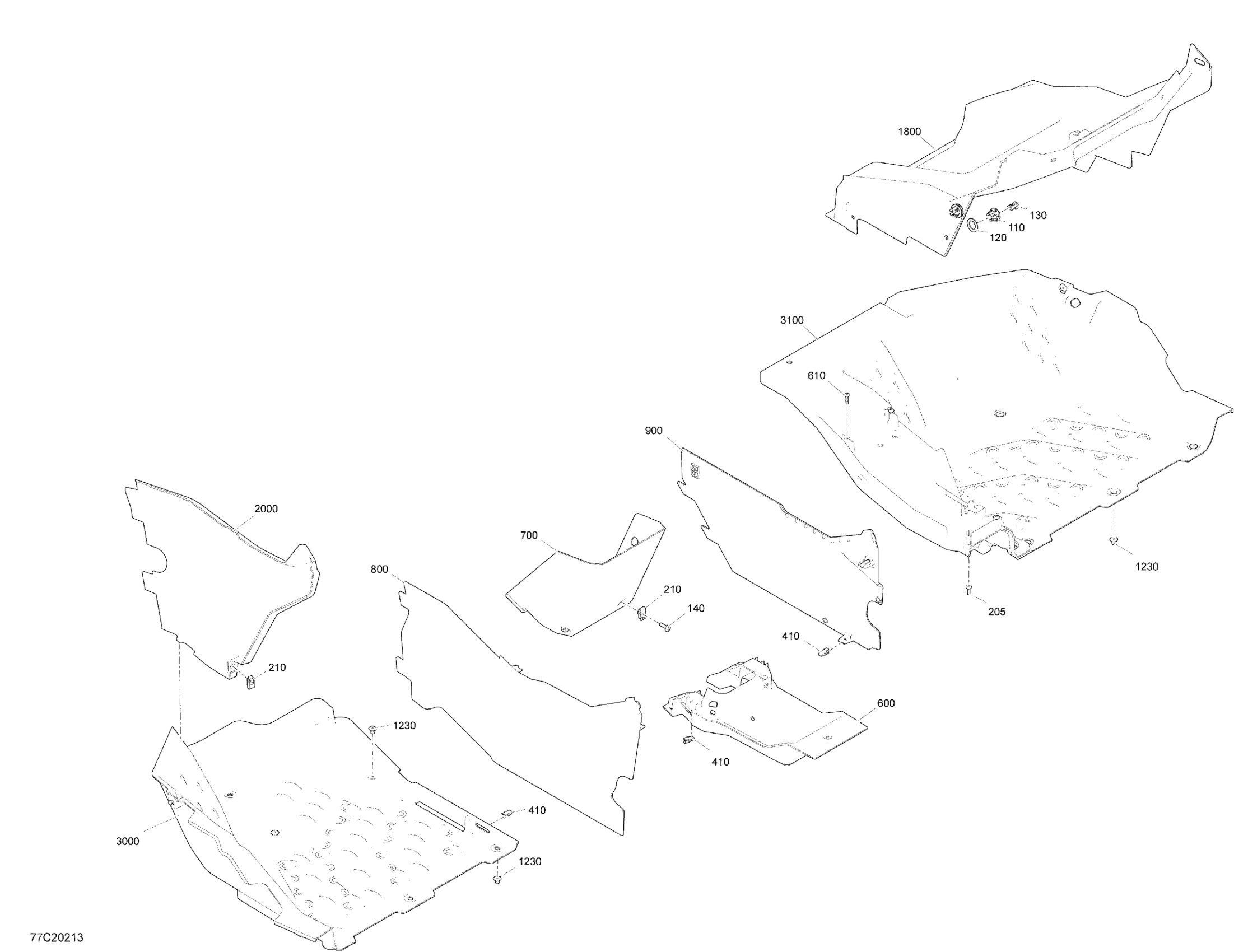

Can-Am Maverick Turbo - XMR - 2020 Cab Interior - Floor Section - XMR Diagram

Description

Price

110

Insert

707900133

$2.75

120

Washer

503189273

$3.20

130

Tuflok Plastic Rivet

293150230

$1.21

140

Torx Screw M6 X 20

250000722

$1.34

205

Torx Screw K50 X 16

250000720

$1.39

210

Panel Nut M6 X 1.0

250100198

$1.73

410

Clip

705010721

$2.31

600

Front Top Console

707900460

$23.05

610

Torx Screw Truss Head K50X20 T20

250000760

$1.74

700

Cover Central Console

707900473

$27.66

800

LH Console Panel

707901087

$69.20

900

RH Console Panel

707901088

$69.20

1230

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1800

RH Lower Dash Panel

707900410

$73.82

2000

Side Panel Cover

707900477

$59.97

3000

LH Front Floor

707900339

$64.58

3100

RH Front Floor

707900340

$64.58
