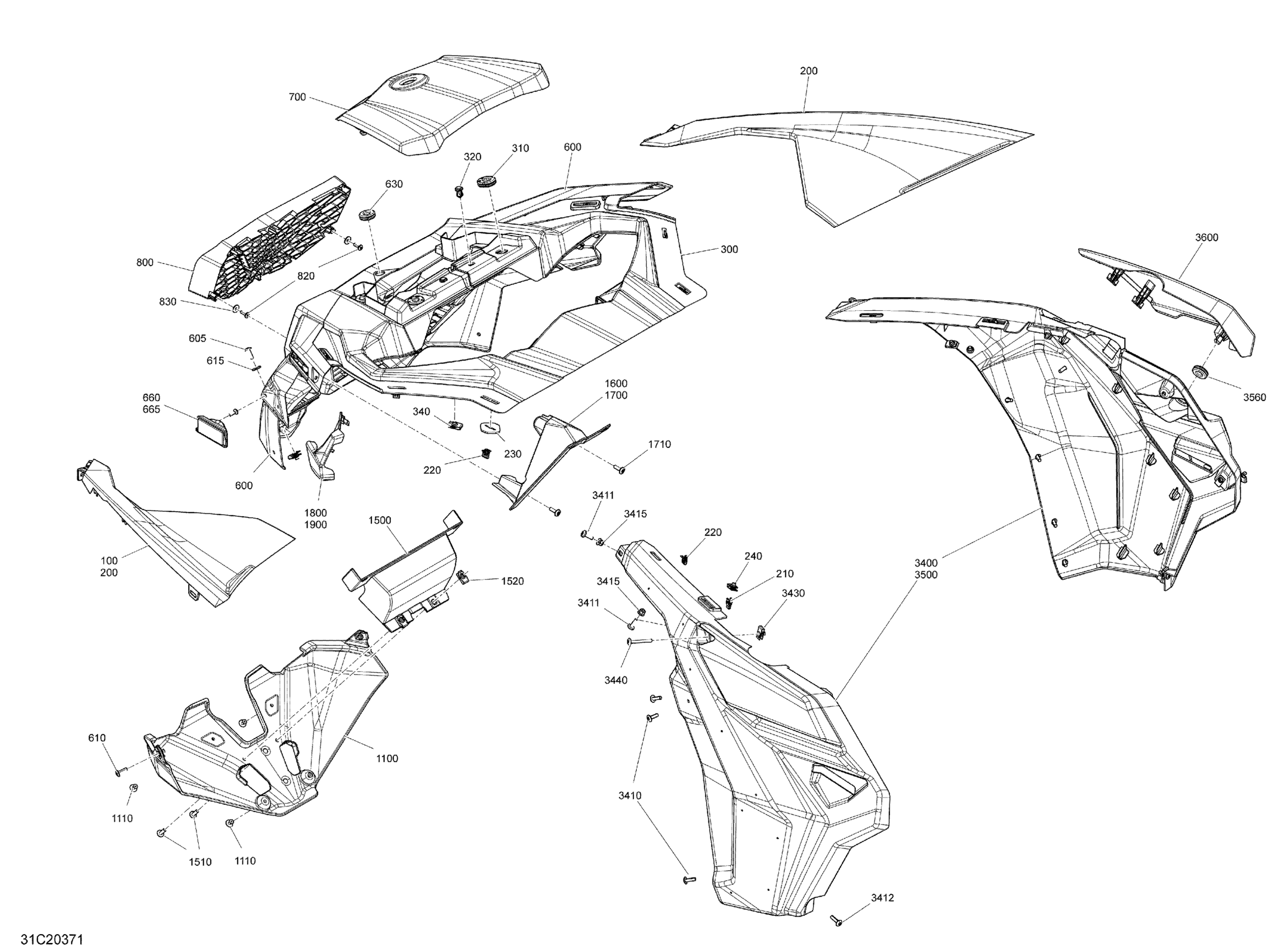

Can-Am Maverick Turbo - XMR - 2020 Body - Front Section - XMR - Manta Green Diagram

#

Description
Price

100

Mineral Satin Gray, LH Front Fender

705014304

$128.43

200

Mineral Satin Gray, RH Front Fender

705014312

$128.43

210

Clip

705010721

$2.31

220

Edge Clip

517302785

$0.70

230

Support Plate

705003841

$0.91

240

Panel Nut M6 X 1.0

250100198

$1.73

300

Manta Green, Front Panel

705014098

$79.97

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.21

340

Panel Nut M6 X 1.0

250100198

$1.73

600

Front Facia

705009508

$115.35

605

Torx Screw M6 X 20

250000722

$1.34

610

Not Available As Spare Parts

XXX

Unavailable

615

Stainless Steel Flat Washer

234062670

$1.74

630

Grommet

517303756

$3.15

640

Amber, Reflector

520000271

$19.20

660

LH Reflector Support

705011806

$4.06

665

RH Reflector Support

705011814

$4.06

700

Mineral Satin Gray, Front Hood

705014316

$159.97

800

Radiator Front Grille

703501021

$50.74

820

Torx Screw K50 X 16

250000720

$1.39

830

Washer M5

250200025

$0.61

1100

Not Available As Spare Parts

XXX

Unavailable

1110

Not Available As Spare Parts

XXX

Unavailable

1500

Not Available As Spare Parts

XXX

Unavailable

1510

Not Available As Spare Parts

XXX

Unavailable

1520

Not Available As Spare Parts

XXX

Unavailable

1600

LH Front Radiator Deflector

705017559

$17.66

1700

RH Front Radiator Deflector

705017560

$17.66

1710

Torx Screw M6 X 20

250000722

$1.34

1800

LH Light Cover

705010628

$30.74

1900

RH Headlight Trim

705017566

$30.74

3400

Black, LH Front Lateral Panel Kit

715006594

$115.35

3400

Black, LH Front Lateral Panel Kit | International

715006648

$96.89

3410

Torx Screw M6 X 20

250000722

$1.34

3411

Torx Screw M6 X 20

250000712

$1.74

3412

Torx Truss Screw M6 X 25

250000807

$1.74

3415

Hex. Flange Elastic Nut M6

233261494

$1.26

3430

Panel Nut M6 X 1.0

250100198

$1.73

3440

Torx Truss M6 X 50

250000868

$1.74

3500

Black, RH Front Lateral Panel Kit

715006596

$96.89

3560

Grommet

517303756

$3.15

3600

Lateral Cover

705017564

$40.74
