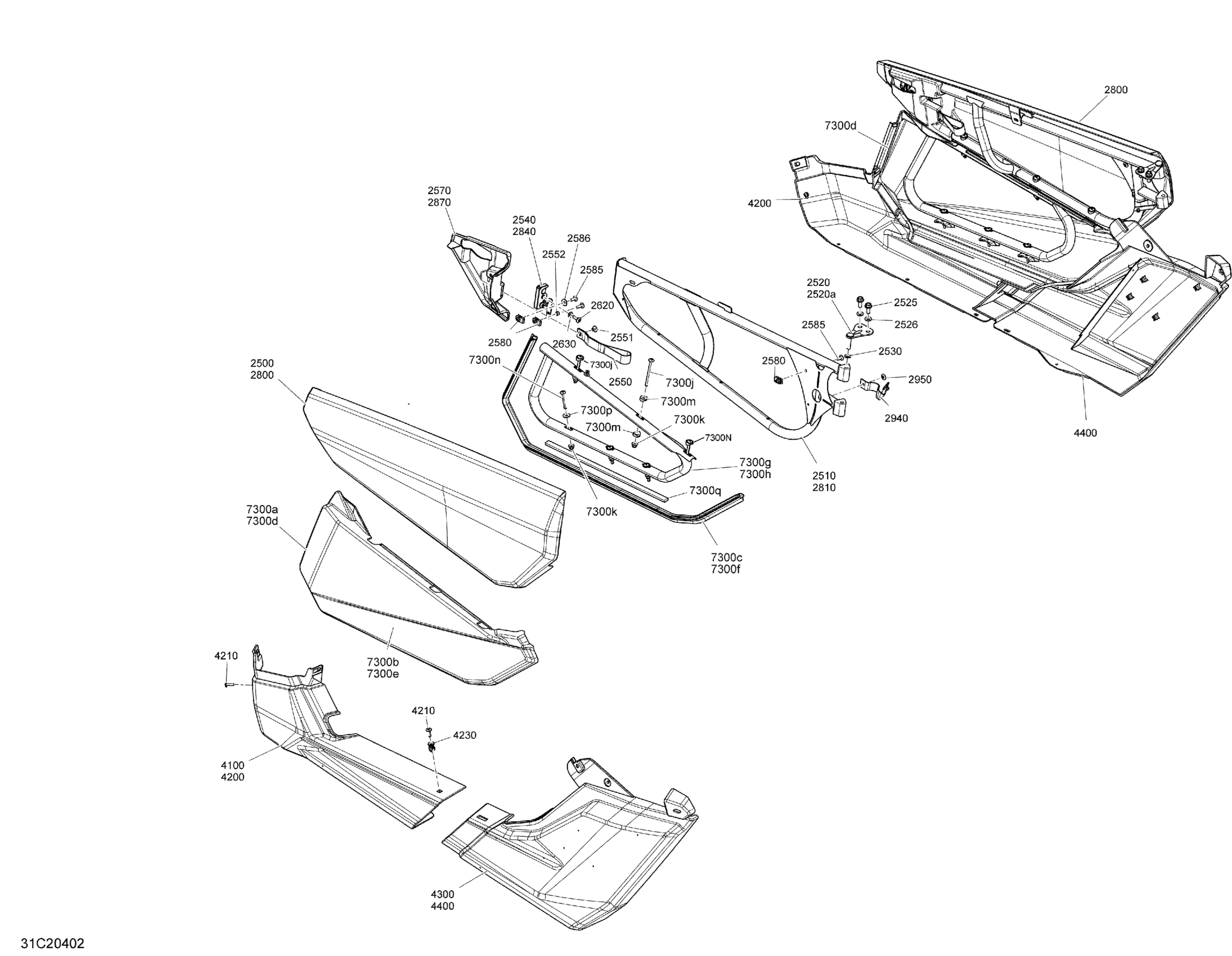

Can-Am Maverick Turbo - XMR - 2020 Body - Door Section - XMR - Manta Green Diagram

#

Description
Price

2500

Mineral Satin Gray, LH Front Door Panel

705014083

$191.76

2510

Deep Black, LH Front Door

705018468

$141.01

2520

Door Support

705011187

$10.55

2520a

Weld Pin 8mm X 40mm

250000913

$1.85

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Pop Rivet 3/16"

293150103

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2620

Torx Screw M6 X 20

250000722

$1.54

2630

Flat Washer

224061121

$0.51

2800

Mineral Satin Gray, RH Front Door Panel

705014084

$191.76

2810

Deep Black, RH Front Door

705018470

$141.01

2840

RH Latch

705013096

$53.70

2870

RH Latch Cover

705013536

$35.79

2940

Door Belt

293850129

$14.61

2950

Pop Rivet 3/16"

293150103

$0.52

4100

LH Central Lateral Panel

705009513

$60.42

4200

Deep Black, RH Central Body Panel

705017555

$66.39

4210

Torx Screw M6 X 20

250000722

$1.54

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705010676

$104.45

4400

Deep Black, RH Rear Lateral Panel

705010677

$104.45

7300a

Door Panels | Includes 7300 to 7300m

715002903

$425.99

7300b

LH Lower Door Decal

704907650

$21.61

7300c

Door Seal

705012018

$17.88

7300d

Door Panels | Includes 7300 to 7300m

715002903

$425.99

7300e

RH Lower Door Decal

704907651

$21.61

7300f

Door Seal

705012018

$17.88

7300g

Black, LH Door Frame

705012750

$116.39

7300h

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$116.39

7300j

Torx-Truss M/S M6 X 80

250000902

$2.52

7300k

Hex. Flange Elastic Nut M6

233261494

$1.45

7300m

Offset Washer

705202223

$4.09

7300n

Torx Truss Screw M6 X 50

250000749

$3.01

7300p

Stainless Steel Flat Washer

234062670

$2.00

7300q

Neoprene Seal (1PAC=3M)

219704364

$26.09
