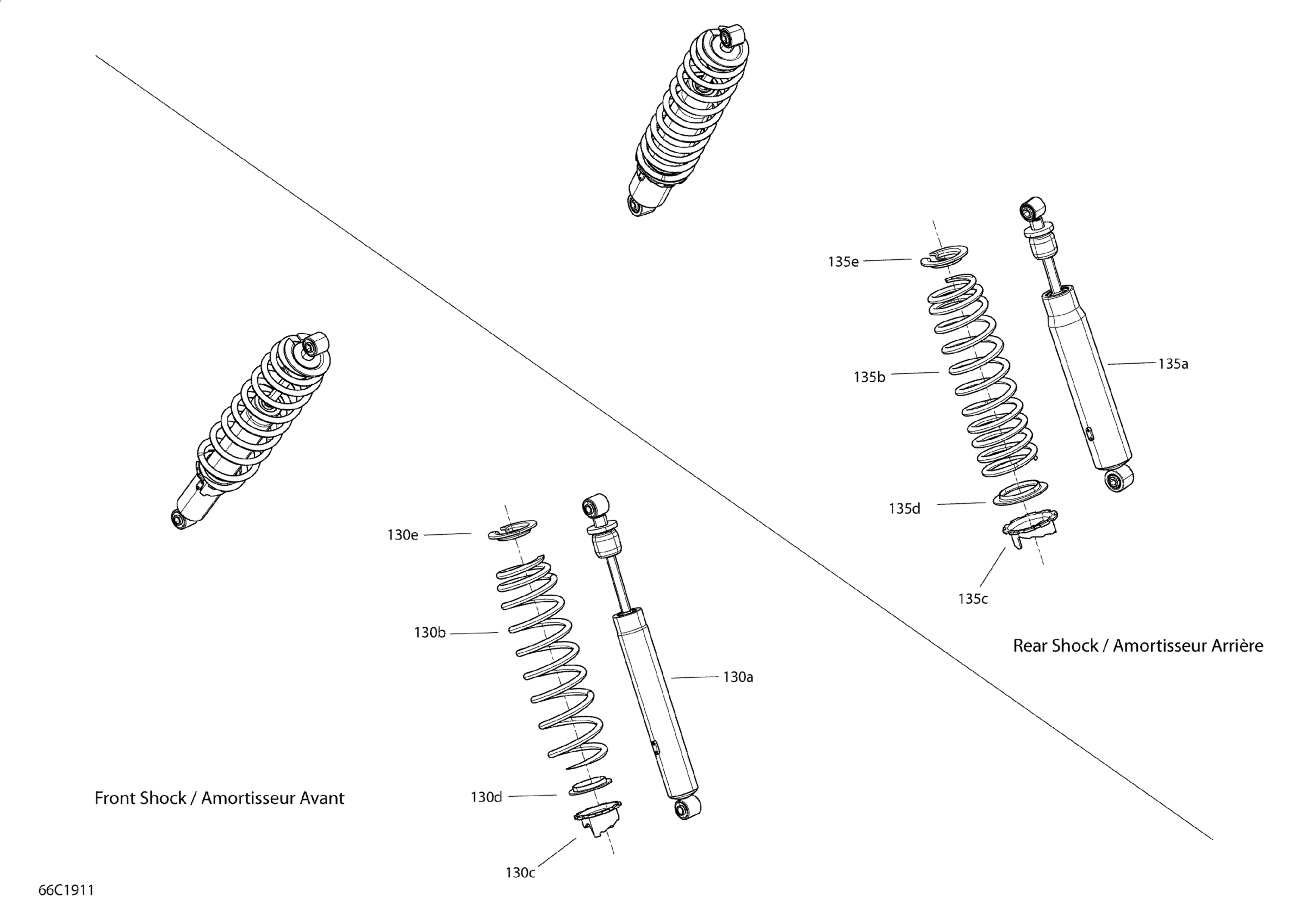

Can-Am Maverick Trail 1000 - DPS - T2B Series, 2019 Shocks - Package DPS Diagram

Description

Price

130a

Front Shock

706202835

$186.12

130b

Deep Black, Compression Spring

706205394

$138.43

130b

Can-Am Red Front Spring | Red Model

706203173

$119.97

130b

PAINT FRONT SPRING - Call your local BRP dealership | Yellow Model

706203172

Unavailable

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130e

Spring Cup

706001894

$14.75

135a

Rear Shock

706002719

$153.05

135b

Black Rear Spring

706002720

$129.20

135b

Can-Am Red Rear Spring | Red Model

706003007

$119.97

135b

Sunburst Yellow Rear Spring | Yellow Model

706003008

$119.97

135c

Adjustment Ring

706000910

$14.37

135d

Protector Ring | STD, XT

706000911

$7.60

135e

Spring Cup

706001894

$14.75
