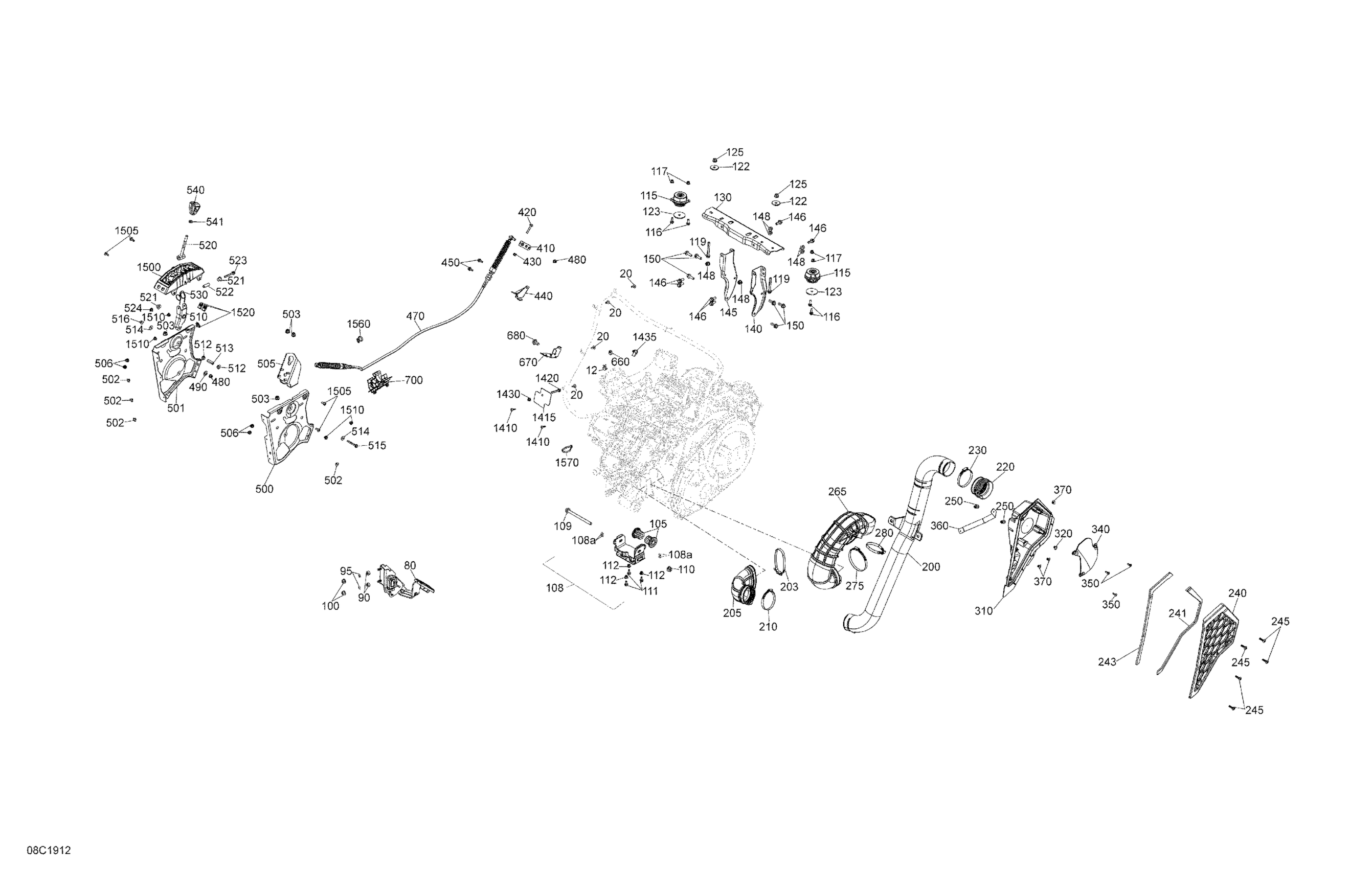

Can-Am Maverick Trail 1000 - DPS - T2B Series, 2019 Engine - System Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$14.90

20

Screw PT Type K-50 X 16

250000959

$2.00

80

Accelerator Pedal

707001166

$261.24

90

Bushing

707000848

$1.04

95

Push Nut

250100031

$6.66

100

Hex. Flange Nut M8

233081416

$1.87

105

Vibration Damper

707001169

$42.99

108

Vibration Damper | Includes 108 to 108d

707003061

$138.03

108a

Pop Rivet 3/16"

390402200

$0.30

109

Hex. Flange Screw M10 X 135

230603546

$6.99

110

Hex. Flange Elastic Nut M10

233201436

$2.00

111

Hex. Flange Screw M6 X 16

207661644

$0.70

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

115

Rubber Mount

707002590

$54.45

116

Hex. Flange Screw M6 X 20

207662044

$1.91

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

119

Hex. Flange Screw, M8 X 65

207686544

$11.18

122

Flat Washer M8

250200158

$2.00

123

Flat Washer M8

250200180

$2.06

125

Hex. Flange Nut M8

233081416

$1.87

130

Rear Link Bracket

707002290

$27.58

140

Engine Bracket

707002449

$11.49

145

RH Rear Engine Support

707003340

$15.64

146

Hex. Flange Screw M8 X 20

207682046

$1.76

148

Hex. Elastic Flange Nut M8

233281416

$1.43

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

200

Front CVT Cooling Duct

706600183

$39.52

203

Norma Gear Clamp

514052983

$14.90

205

Flexible Adapter

706600249

$17.88

210

Norma Clamp

293650091

$10.54

220

Soft Fitting

706600190

$13.42

230

Norma Clamp

293650091

$10.54

240

CVT Filter

706600417

$40.27

241

Gasket

706600191

$35.79

243

Gasket

706600231

$10.97

245

Hex. Screw Pt K60 X 25

250000980

$2.00

250

Tuflok Plastic Rivet

293150230

$1.39

265

CVT Cooling Duct Out

706600192

$29.82

275

Norma Gear Clamp

514052983

$14.90

280

Norma Clamp

293650091

$10.54

310

CVT Airbox

706600196

$41.76

311

Plug

707002217

$2.68

320

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

340

Baffle

706600286

$24.60

345

Self Adhesive Protective Foam

706600287

$2.69

350

Torx Screw K50 X 16

250000720

$1.60

360

Support

706600237

$5.79

370

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

440

Cable Support

707001614

$14.43

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

470

Shifting Cable

707002000

$64.15

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

500

LH Bracket

707002099

$22.36

501

RH Bracket

707002100

$22.36

502

Pop Rivet 3/16"

293150103

$0.52

503

Hex. Flange Elastic Nut M8

233281414

$1.31

505

Cable Support

707002098

$14.43

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

510

Lower Lever Arm

707002093

$17.13

512

Flanged Bushing

707000847

$0.97

513

Bushing

707001376

$4.09

514

Flat Washer 6 mm

234062410

$0.73

515

Hex. Flange Screw M6 X 50

207665044

$3.88

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

520

Upper Lever Arm

707000711

$35.79

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$7.72

541

Hex. Jam Nut M8

232180491

$7.09

660

Oetiker Clamp

293650042

$2.82

670

Cable Support

710004561

$10.30

680

Hex Flange Screw M10 X 20

207502044

$4.15

700

Hose Support

707002116

$9.85

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.00

1415

Insulator Pad

710000073

$10.30

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.00

1430

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1435

Stud Tie Wrap

710006067

$2.03

1500

Lever Indicator

715005861

$23.85

1505

Torx Head Screw M6 X 16

250000717

$2.00

1510

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1520

Panel Nut M6 X 1.0

250100198

$1.99

2265a

Tubing 16 Mm 1000Mm Long

219704408

$7.15
