Description

Price

10

Chassis Ass'y | Includes 10 to 10a2w3

715009354

Unavailable

10a1a5

Shim

705209479

$3.05

10a1a6

Pop Rivet 3/16"

390402200

$0.26

10a1h5

Shim

705209479

$3.05

10a1h6

Pop Rivet 3/16"

390402200

$0.26

10b

Pop Rivet 3/16"

390402200

$0.26

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30

Magma Red, Front Cage Kit | Includes 30 to 30a

715009374

$619.99

30a

Pop Rivet 3/16"

390402200

$0.26

30b

Shim

705210164

$11.83

30c

Bushing

705210165

$36.89

35

Magma Red, Rear Cage Ass'y

715009350

$619.99

37

Magma Red, Rear Cage Extension

705211138

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

47

Magma Red, LH Front Bumper

705209439

$110.74

48

Magma Red, RH Front Bumper

705209440

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

52

Front Anchorage Ass'y

705210467

$132.28

54

Deep Black, Rear Bumper Kit | Includes 54 to 54b6

715007109

$344.58

54a2

Can Am Logo

704902307

Unavailable

54a3

Pop Rivet 1/8", Black

293150189

$0.25

54b2

Decal "Can-Am" | Not Shown

704904566

$9.25

54b3

Hex. Elastic Flange Nut M8

229000122

$1.37

54b4

Torx Truss M/S M8 X 20

229000057

$2.75

54b5

Shoulder Screw HEX. M8 X 25

229000147

$7.37

54b6

Flat Washer M8

229000148

$10.14

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

126

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut

233081436

$1.63

160

LH Rear Anchorage Support

705211569

$18.43

161

RH Rear Anchorage Support

705211571

$18.43

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1580

Torx Head Screw M6 X 16

250000717

$1.74

1590

Stainless Steel Flat Washer

234062670

$1.74

1595

LH Front Anchorage

705209913

$35.35

1596

RH Front Anchorage

705209914

$35.35

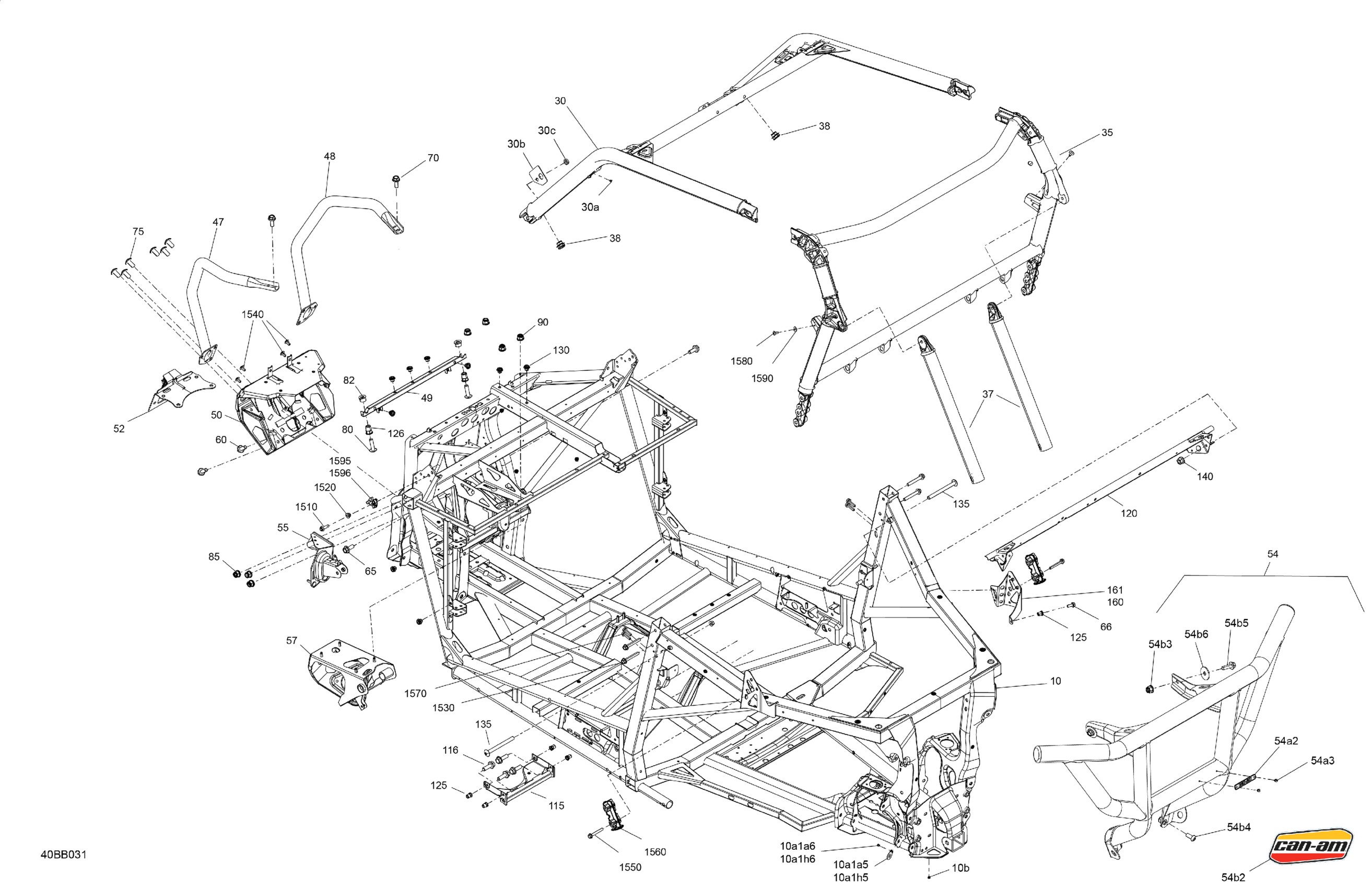

Can-Am Maverick Sport 1000R - XRC - International, 2022 Frame - System Diagram

Chassis Ass'y | Includes 10 to 10a2w3

Can Am Logo
