Description

Price

5000

LH Front Door Panel

705012982

$302.28

5040

Torx Screw M6 X 20

250000722

$1.34

5060

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$41.51

5060b

Natural Color, Dart

293730081

$2.75

5060c

Red, Dart

293730082

$2.75

5080

Grommet

293720104

$4.15

5100

RH Front Door Panel

705012983

$302.28

5200

Mineral Gray Satin, LH Front Door Panel

705015606

$232.28

5210

Panel Nut M6 X 1.0

250100198

$1.73

5300

Mineral Gray Satin, RH Front Door Panel

705015614

$232.28

5400

LH Door Panel Ass'y | Not shown

715006764

$101.51

5500

RH Door Panel Ass'y

715006765

$101.51

5600

Door Handle

705017152

$13.52

5830

Torx Truss Screw M6 X 25

250000807

$1.74

5850

Stainless Steel Flat Washer

234062670

$1.74

6000

Hinge

705013228

$27.66

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

6020

Washer

503192494

$3.11

6100

Lower Hinge Ajustement

705011629

$12.31

6110

Flat Washer 8 mm, Nylon

234081100

$1.00

6120

Circlip | RS STD

705601030

$4.12

6200

Upper Hinge Ajustement

705012506

$12.31

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

6400

Handle Spring

705013062

$13.83

6500

Handle Axle

705207440

$11.54

6510

External Retaining Ring

705601875

$4.06

6600

LH Upper Locking Rod

705207146

$8.46

6610

RH Tie Rod Clip

708300202

$2.31

6700

RH Upper Locking Rod

705207147

$8.46

6710

LH Tie Rod Clip

708300182

$2.31

6800

LH Lower Locking Rod

705207150

$3.98

6810

RH Tie Rod Clip

708300202

$2.31

6900

RH Lower Locking Rod

705207151

$3.98

6920

LH Tie Rod Clip

708300182

$2.31

7000

LH Latch

705013095

$55.35

7100

RH Latch

705013096

$55.35

7200

LH Stricker Support

705207027

$27.66

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

7300

RH Stricker Support

705207028

$27.66

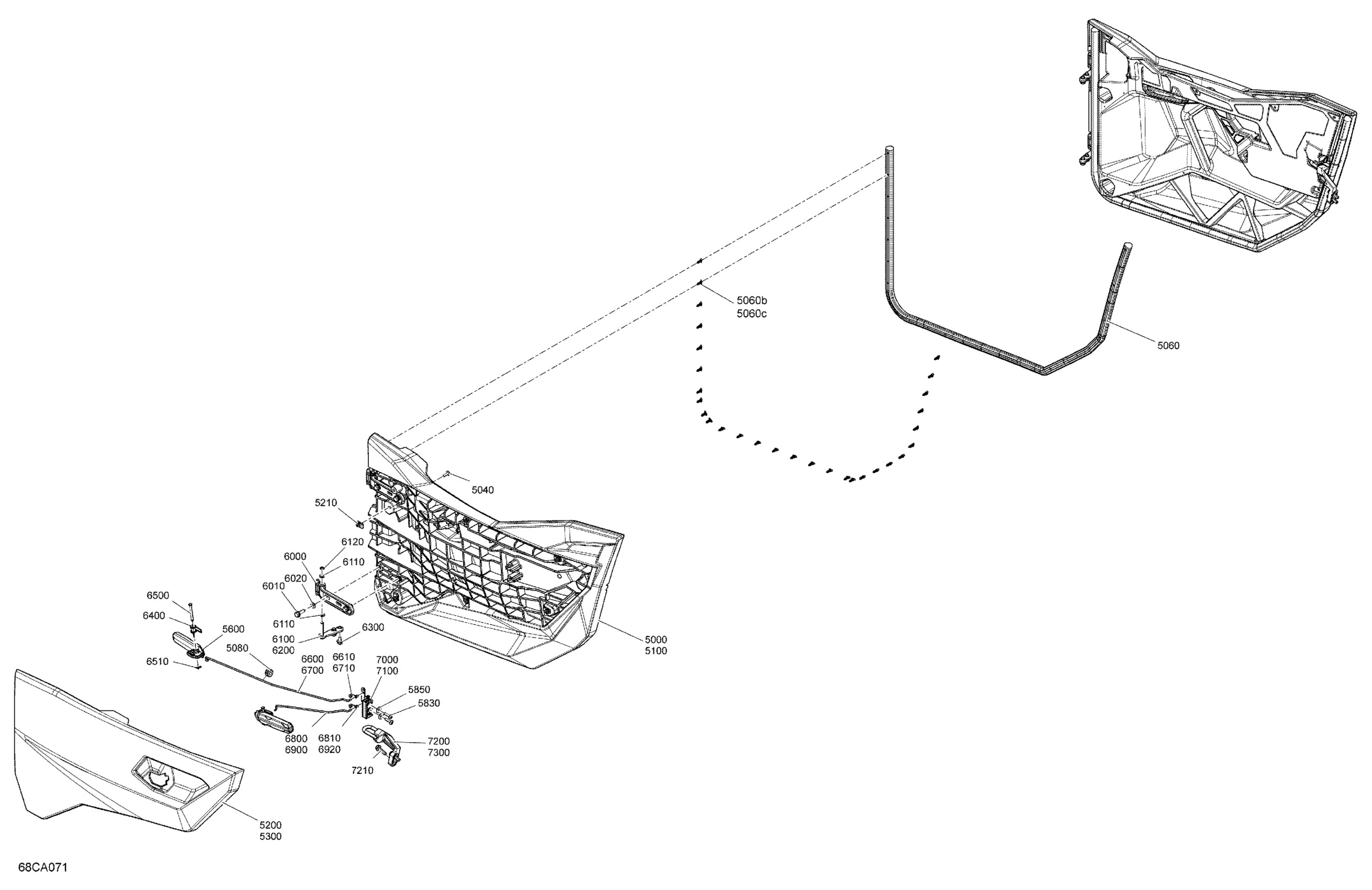

Can-Am Maverick Sport 1000R - XMR - 2021 Body - Doors Diagram
