Description

Price

10

Manta Green, LH Upper Suspension Arm | Includes 10 to 10a

706003719

$235.35

10a

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003715.

715010684

$235.35

15

Manta Green, RH Upper Suspension Arm | Includes 15 to 15a

706003720

$235.35

15a

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003716.

715010695

$235.35

20

Manta Green, LH Lower Suspension Arm | Includes 20 to 20a

706003729

$235.35

20a

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727.

715010704

$235.35

25

Manta Green, RH Lower Suspension Arm | Includes 25 to 25a

706003730

$235.35

25a

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728.

715010711

$235.35

30

Sway Bar Double Link

706003004

$110.74

35

Sway Bar Double Link

706003003

$110.74

40

Stabilizer Bar Bushing

706004266

$9.22

42

Grease Fitting

408200700

$2.80

43

Plate Support

706002977

$4.60

45

Clamp

706002970

$15.35

60

Sway Bar Ass'y

706003475

$119.97

71

Not Available As Spare Part - Friction Washer

Unavailable

90

Suspension Arm Bushing

706003528

$9.22

93

Suspension Arm Bushing

706004829

$9.22

95

Flange Screw M12 X 85

250000859

$3.95

96

Flange Screw M12 X 145

250000861

$5.47

97

Elastic Flange Nut M12

233221466

$2.15

150

Not Available As Spare Part - Friction Washer

Unavailable

170

Screw Flange M12 X 115

250000860

$5.47

175

Elastic Flange Nut M12

233221466

$2.15

200

Elastic Flange Nut M12

233221466

$2.15

205

Hex. Flange Screw M12 X 70

250000858

$3.11

206

Flange Screw M12 X 60

250000857

$6.08

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$119.97

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$119.97

225

Hex. Flange Screw M10 X 70

207607046

$2.91

227

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

230

Hex. Flange Elastic Nut M10

233201436

$1.74

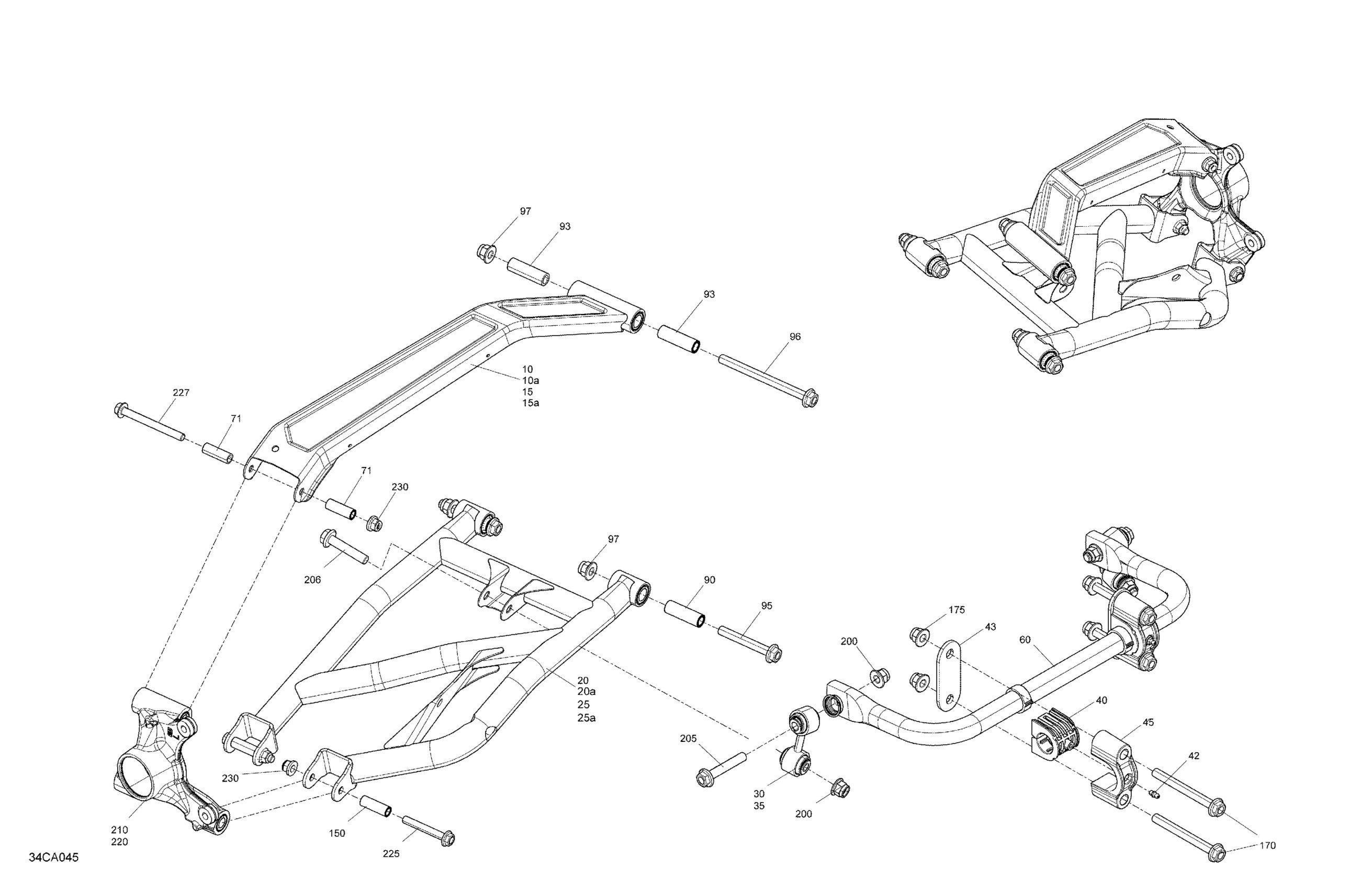

Can-Am Maverick Sport 1000R - XMR - 2021 Suspension - Rear - Built After January 18th 2021 Diagram

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
