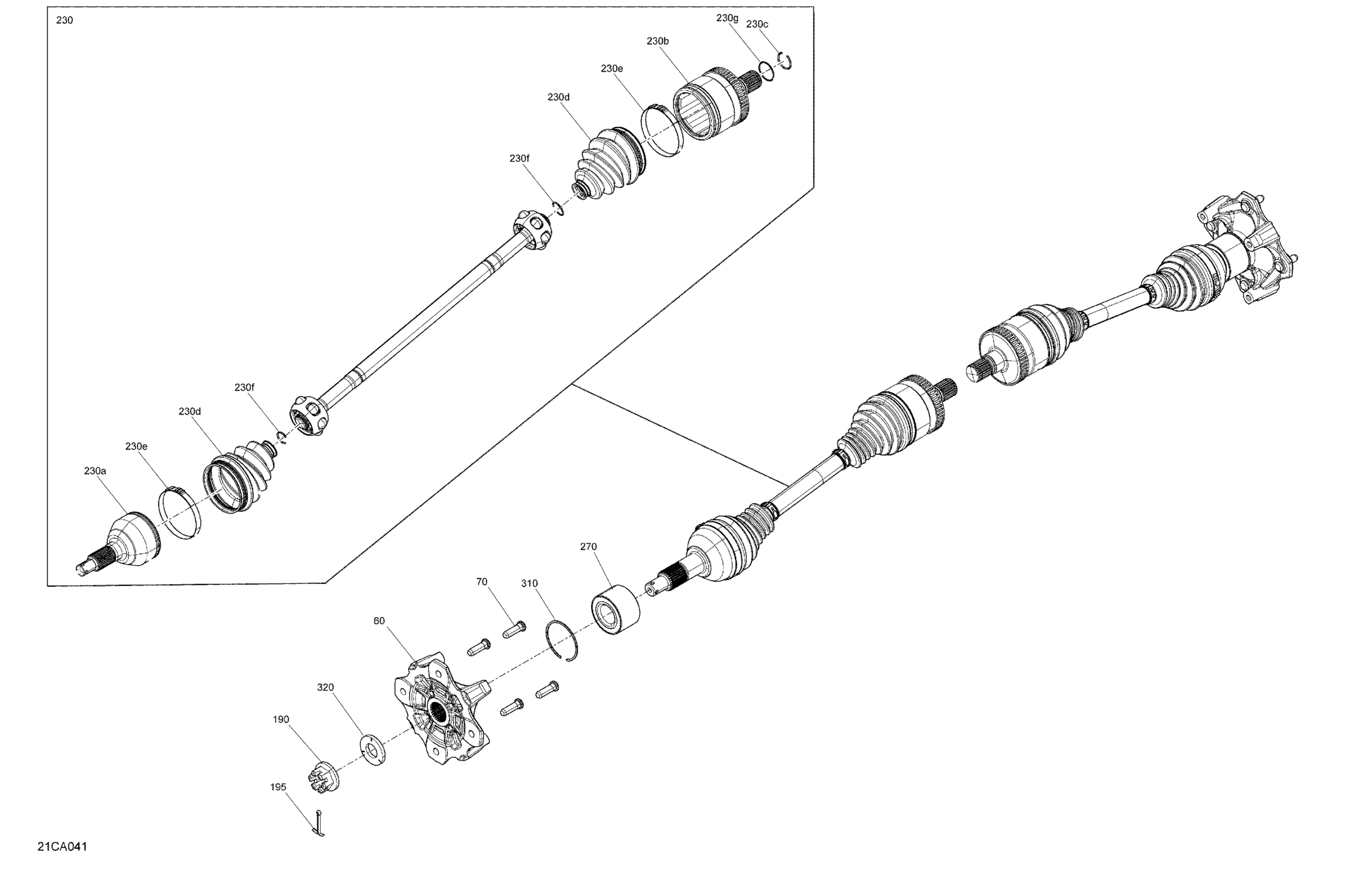

Can-Am Maverick Sport 1000R - XMR - 2021 Drive - Rear Section - Common Parts Diagram

Description

Price

Wheel Hub

705502338

$115.35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230

Rear Half Shaft | Includes 230 to 230g

705502757

$233.82

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$267.66

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230e

Oetiker Clamp, 82.1 mm

715900241

$7.84

230f

Oetiker Clamp, 27.3 mm

715900242

$7.84

230g

O-Ring

715900579

$2.31

230h

Joint Protector

705501842

$8.29

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
