Description

Price

10a

1+1 Seat Base

510006556

$85.79

10b

Seat Foam

510006336

$219.99

10c

Seat Cover

510007552

$249.99

10c

Seat Cover

510007557

$249.99

10d

LH Seat Latch

510006530

$7.07

10f

RH Seat Latch

510006531

$7.07

10g

Pop Rivet 3/16"

293150222

$1.15

20

Seat Pin

510007411

$6.01

60a1

Backrest Foam

510006363

$224.99

60a2

Backrest Cover | Model PLATINUM SILVER SATIN

510007555

$244.99

60a2

Backrest Cover | Model Deep Black

510007674

$244.99

60a3

Backrest Support

510006777

$44.00

60b

LH Arm

510006479

$80.57

60c

RH Arm

510006480

$80.57

60d

LH Trim

510006706

$18.63

60f

RH Trim

510006705

$18.63

60g

Torx Truss M6X14

250000789

$5.06

60h

Backrest Trim

510006366

$74.60

60j

Screw M4 X 16

250000889

$2.82

60k

Flat Washer M8, Stainless

234080600

$1.43

60m

Screw-Socket HD.DIN.912

205081654

$1.79

60n

LH Base Cover

510006169

$3.70

60p

RH Base Cover

510006170

$3.70

60q

Threaded Insert

511000822

$2.04

60r

Torx-Truss M/S M6 X 25

250001000

$4.97

60s

Seat Wiring Harness

515178490

$50.72

140a

LH Passenger Heated Hand Hold Ass'y

510006404

$296.99

140a1

LH Ext. Passenger Hand Hold

510006492

$64.15

140a2

LH Int. Passenger Hand Hold

510006493

$64.15

140a3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140a4

LH Passenger Handle Deflector

510006495

$26.84

140a5

Screw M4 X 16

250000889

$2.82

140a6

Torx-Truss M/S M5 X 14

250000941

$2.00

140a7

Rocker Switch

515178505

$26.09

140a8

Accessories Wiring Harness

515178465

$64.15

140a9

Cap

572103300

$9.36

140a10

Cap

510004950

$12.67

140b

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

510006485

$296.99

140b1

RH Ext. Passenger Hand Hold

510006486

$64.15

140b2

RH Int. Passenger Hand Hold

510006487

$64.15

140b3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140b4

RH Passenger Handle Deflector

510006489

$26.84

140b5

Screw M4 X 16

250000889

$2.82

140b6

Torx-Truss M/S M5 X 14

250000941

$2.00

140c

Passenger Handle Trim

510006602

$11.36

140d

Torx Truss M/S M8 x 35

250000753

$1.04

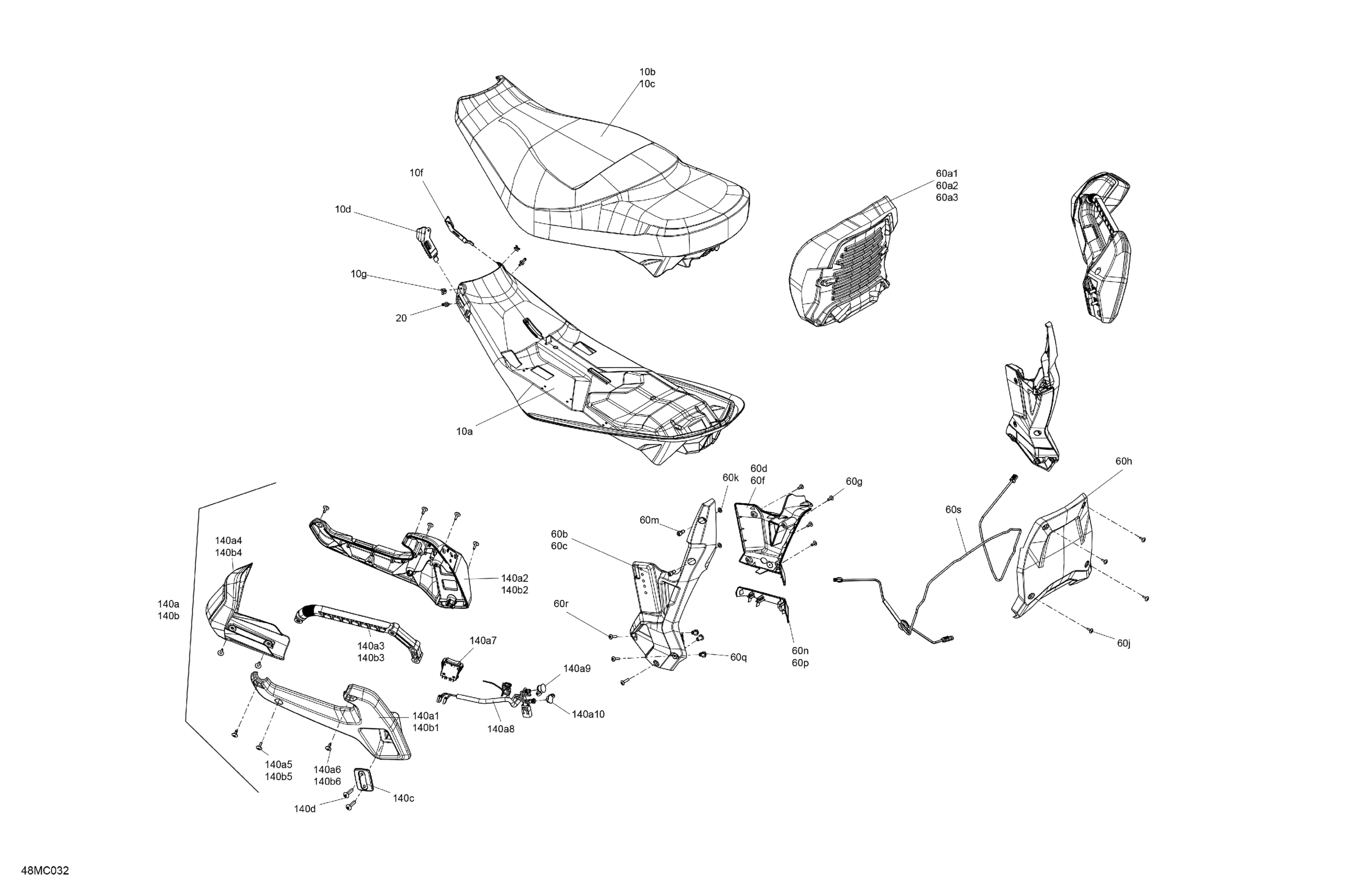

Ski-Doo GRAND TOURING 900 ACE - LTD - 2023 Body - Seat Diagram

1+1 Seat Base

Seat Foam

Seat Cover

Seat Cover

LH Seat Latch

RH Seat Latch

Pop Rivet 3/16"

Seat Pin

Backrest Foam

Backrest Cover | Model PLATINUM SILVER SATIN

Backrest Cover | Model Deep Black

Backrest Support

LH Arm

RH Arm

LH Trim

RH Trim

Torx Truss M6X14

Backrest Trim

Screw M4 X 16

Flat Washer M8, Stainless

Screw-Socket HD.DIN.912

LH Base Cover

RH Base Cover

Threaded Insert

Torx-Truss M/S M6 X 25

Seat Wiring Harness

LH Passenger Heated Hand Hold Ass'y

LH Ext. Passenger Hand Hold

LH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

LH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Rocker Switch

Accessories Wiring Harness

Cap

Cap

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

RH Ext. Passenger Hand Hold

RH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

RH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Passenger Handle Trim

Torx Truss M/S M8 x 35
