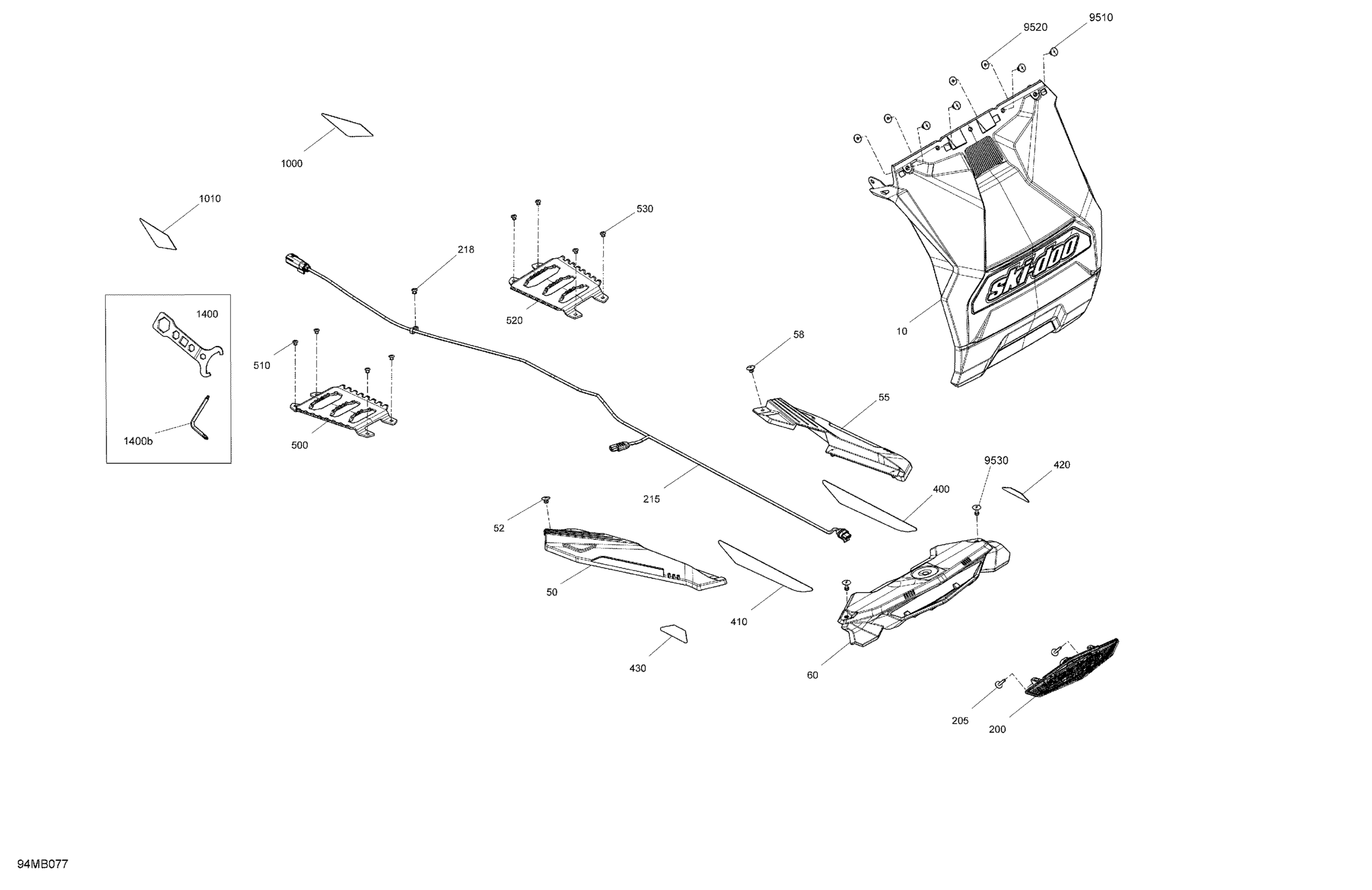

Ski-Doo GRAND TOURING 900 ACE - LTD - 2022 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$124.58

LH Rear Guard

520001854

$13.77

Pop Rivet 3/16"

293150103

$0.54

RH Rear Guard

520001858

$13.77

Pop Rivet 3/16"

293150103

$0.54

Light Fairing

520001487

$19.20

200

Rear Light

520001143

$76.89

205

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$35.35

218

Pop Rivet 3/16"

390402200

$0.26

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

420

Red, RH Rear Reflector

520001842

$4.65

430

Red, LH Rear Reflector

520001860

$4.65

500

Deep Black, Passenger Footrest

520002896

$46.12

510

Rivet 3/16"

293150102

$0.71

520

Deep Black, Passenger Footrest

520002896

$46.12

530

Rivet 3/16"

293150102

$0.71

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

9510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

9520

Washer

517124300

$0.16

9530

Pop Rivet 3/16"

293150100

$1.08
