Description

Price

10a

1+1 Seat Base

510006556

$85.79

10b

Seat Foam

510006336

$219.99

10c

Seat Cover | Liquid Titan

510007348

$509.99

10c

Seat Cover | Deep Black

510007410

$509.99

10e

Seat Wiring Harness

515178581

$24.60

10f

LH Seat Latch

510006530

$7.07

10g

RH Seat Latch

510006531

$7.07

10h

Pop Rivet 3/16"

293150222

$1.15

20

Seat Pin

510007411

$6.01

60a.a

Backrest Foam

510006363

$224.99

60a.b

Backrest Cover

510007391

$244.99

60a.c

Backrest Support

510006777

$44.00

60b

LH Arm

510006479

$80.57

60c

RH Arm

510006480

$80.57

60d

LH Trim

510006706

$18.63

60e

RH Trim

510006705

$18.63

60f

Torx Truss M6X14

250000789

$5.06

60g

Backrest Trim

510006366

$74.60

60h

Screw M4 X 16

250000889

$2.82

60j

Flat Washer M8, Stainless

234080600

$1.43

60k

Screw-Socket HD.DIN.912

205081654

$1.79

60m

LH Base Cover

510006169

$3.70

60n

RH Base Cover

510006170

$3.70

60p

Threaded Insert

511000822

$2.04

60q

Torx-Truss M/S M6 X 25

250001000

$4.97

60r

Seat Wiring Harness

515178490

$50.72

140a

LH Passenger Heated Hand Hold Ass'y

510006404

$296.99

140a.a

LH Ext. Passenger Hand Hold

510006492

$64.15

140a.b

LH Int. Passenger Hand Hold

510006493

$64.15

140a.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140a.d

LH Passenger Handle Deflector

510006495

$26.84

140a.e

Screw M4 X 16

250000889

$2.82

140a.f

Torx-Truss M/S M5 X 14

250000941

$2.00

140a.g

Rocker Switch

515178505

$26.09

140a.h

Accessories Wiring Harness

515178465

$64.15

140a.j

Cap

572103300

$9.36

140a.k

Cap

510004950

$12.67

140b

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

510006485

$296.99

140b.a

RH Ext. Passenger Hand Hold

510006486

$64.15

140b.b

RH Int. Passenger Hand Hold

510006487

$64.15

140b.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140b.d

RH Passenger Handle Deflector

510006489

$26.84

140b.e

Screw M4 X 16

250000889

$2.82

140b.f

Torx-Truss M/S M5 X 14

250000941

$2.00

140c

Passenger Handle Trim

510006602

$11.36

140d

Torx Truss M/S M8 x 35

250000753

$1.04

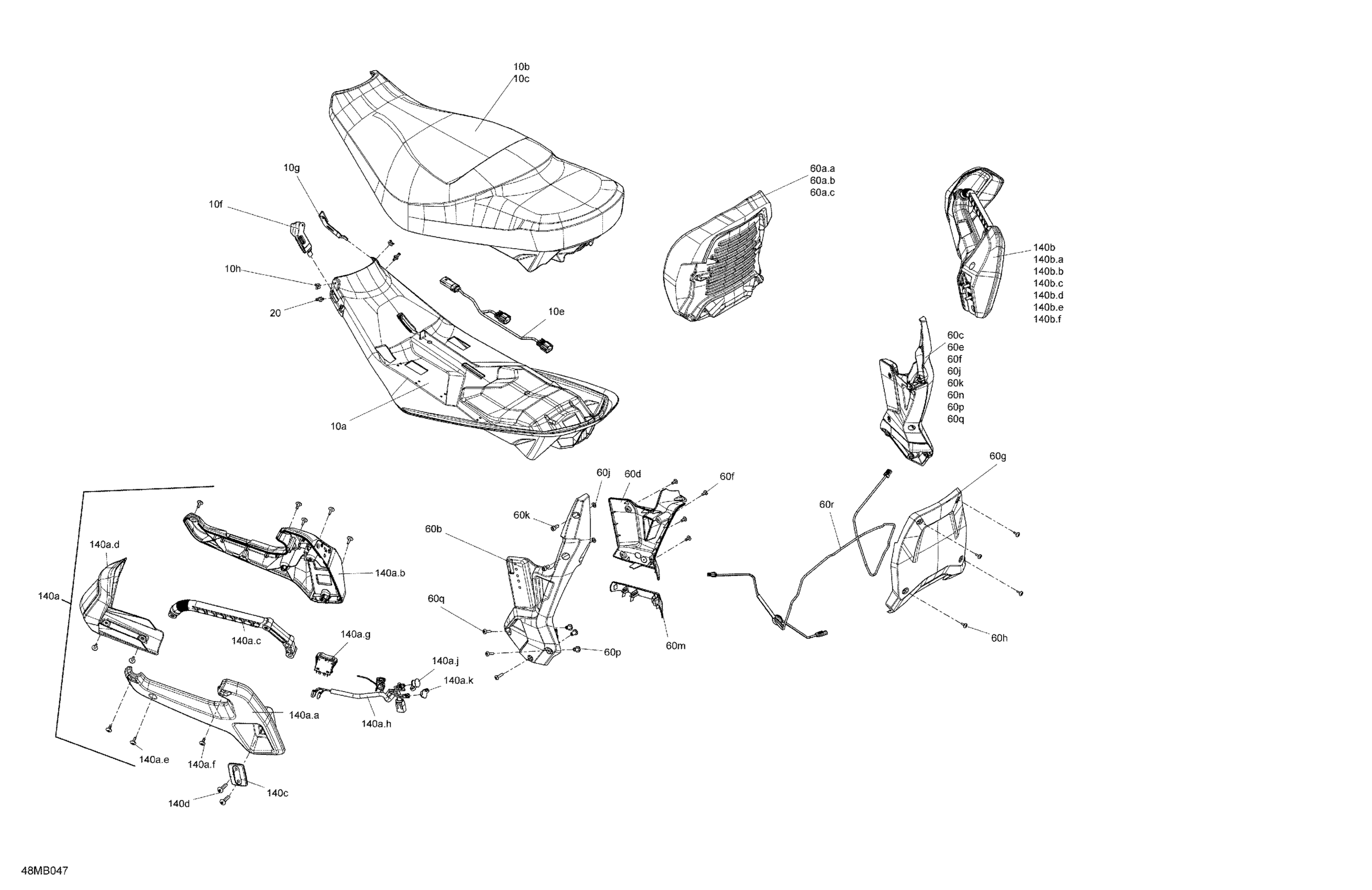

Ski-Doo GRAND TOURING 900 ACE - LTD - 2022 Body - Seat Diagram

1+1 Seat Base

Seat Foam

Seat Cover | Liquid Titan

Seat Cover | Deep Black

Seat Wiring Harness

LH Seat Latch

RH Seat Latch

Pop Rivet 3/16"

Seat Pin

Backrest Foam

Backrest Cover

Backrest Support

LH Arm

RH Arm

LH Trim

RH Trim

Torx Truss M6X14

Backrest Trim

Screw M4 X 16

Flat Washer M8, Stainless

Screw-Socket HD.DIN.912

LH Base Cover

RH Base Cover

Threaded Insert

Torx-Truss M/S M6 X 25

Seat Wiring Harness

LH Passenger Heated Hand Hold Ass'y

LH Ext. Passenger Hand Hold

LH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

LH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Rocker Switch

Accessories Wiring Harness

Cap

Cap

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

RH Ext. Passenger Hand Hold

RH Int. Passenger Hand Hold

Passenger Heated Handhold | Includes 140a3 to 140a3b

RH Passenger Handle Deflector

Screw M4 X 16

Torx-Truss M/S M5 X 14

Passenger Handle Trim

Torx Truss M/S M8 x 35
