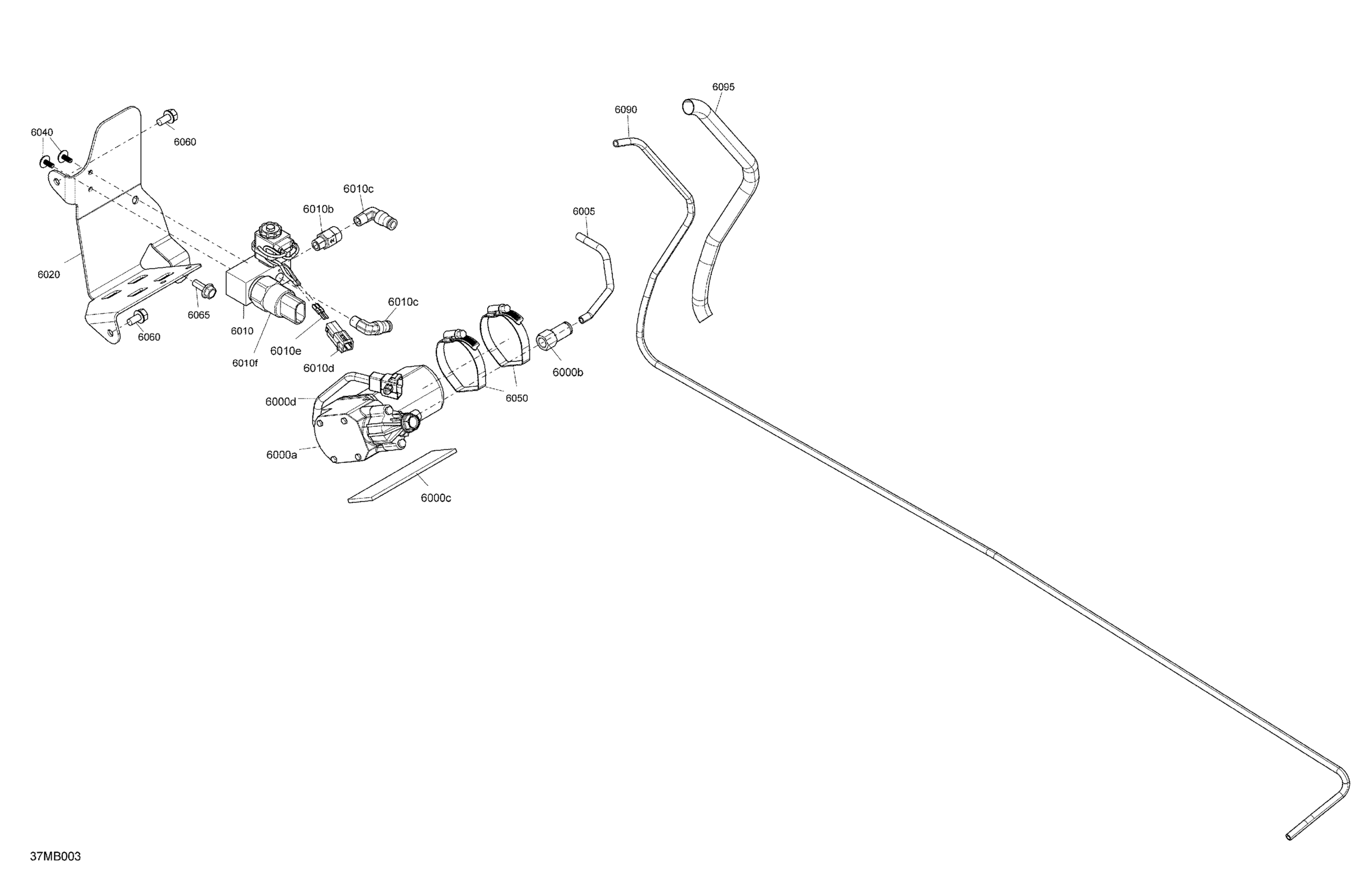

Ski-Doo GRAND TOURING 900 ACE - LTD - 2022 Suspension - Air Compressor Diagram

Description

Price

6000a

Compressor

503194941

$435.35

6000b

Female Connector

706201253

$26.89

6000c

Rubber Damper

503191940

$8.72

6000d

Tubing 6 Mm 3000Mm Long

219704425

$13.14

6005

Hose 4.32Mm 3000Mm Long

219704415

$44.17

6010

Air Manifold Ass'y | Includes 6010 to 6010g

503196323

$1,201.51

6010b

Check Valve

706000860

$39.97

6010c

Elbow 90°

706000872

$26.89

6010d

Male Terminal Housing, 2 Circuits

515175654

$7.48

6010e

Male Terminal

515175232

$1.49

6010f

Air Suspension Sensor

515179088

$162.28

6020

Support Manifold

503195677

$39.97

6040

Hexalob Screw M4 X 10

250000565

$1.74

6050

Norma Gear Clamp

293650090

$4.38

6060

Hex. Flange Screw M6 X 12

210261250

$1.56

6065

Hex. Flange Screw M6 X 16

207661654

$1.74

6090

Hose 4.32Mm 3000Mm Long

219704415

$44.17

6095

Protector Tube | Not shown

503195447

$13.85
