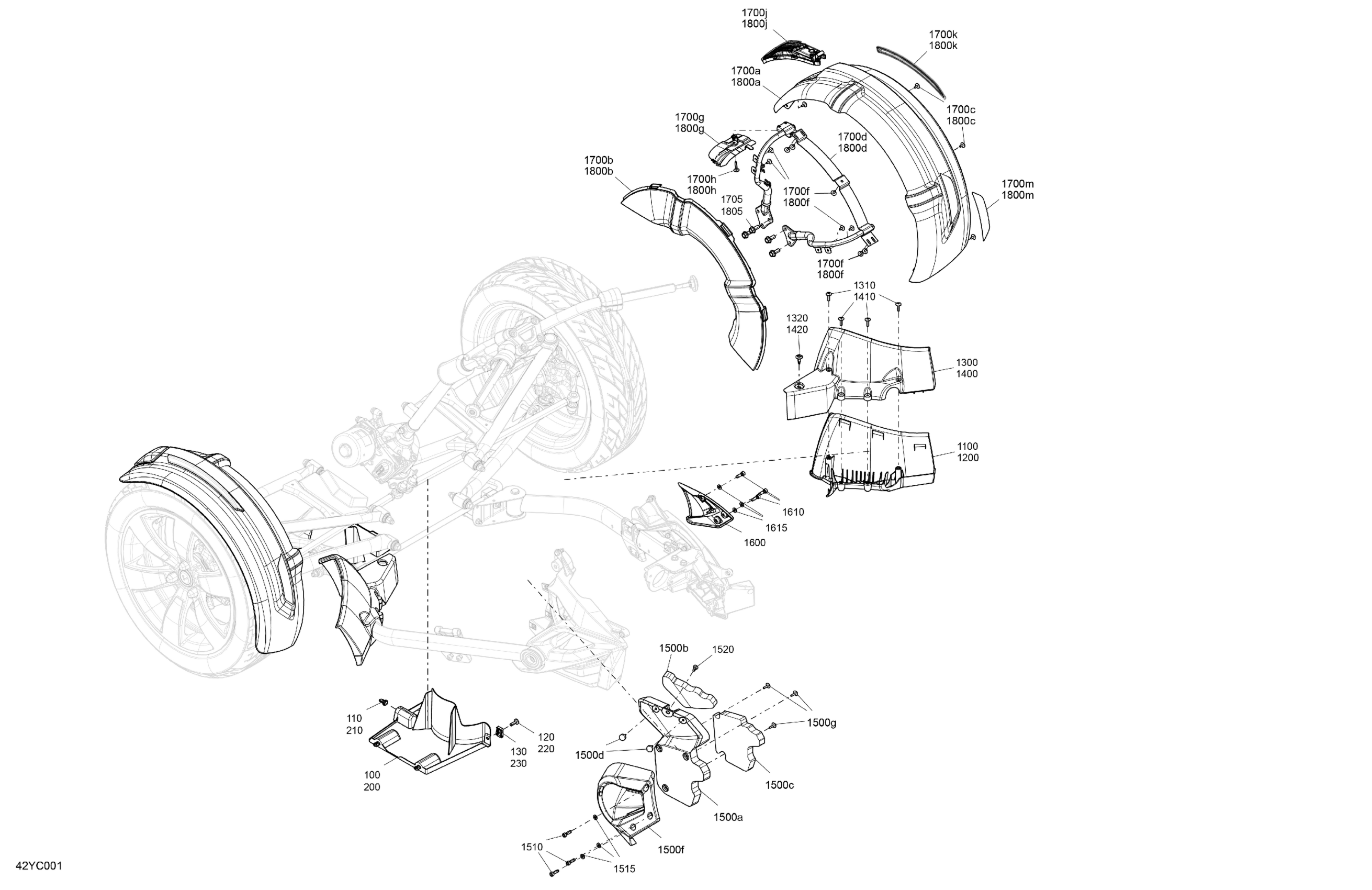

Can-Am F3 T - Pearl White, 2023 Body - Front Fender Diagram

#

Description
Price

100

LH Front Skid Plate

705007785

$28.49

110

Tuflok Plastic Rivet

293150230

$1.47

120

Torx Truss Screw M6 X 20

250000705

$2.11

130

Panel Nut M6 X 1.0

250100208

$1.46

200

RH Front Skid Plate

705007786

$28.49

210

Tuflok Plastic Rivet

293150230

$1.47

220

Torx Truss Screw M6 X 20

250000705

$2.11

230

Panel Nut M6 X 1.0

250100208

$1.46

1100

LH Deflector

705007794

$43.99

1200

RH Deflector

705007795

$43.99

1300

LH Shell

705009027

$43.99

1310

Torx Truss M5 X 20

250000586

$4.44

1320

Tuflock Phillips Plastic Screw

414745900

$1.69

1400

RH Shell

705009029

$43.99

1410

Torx Truss M5 X 20

250000586

$4.44

1420

Tuflock Phillips Plastic Screw

414745900

$1.69

1500a

LH Acoustic Fairing

705009144

$45.99

1500b

Acoustic Foam

705009344

$8.49

1500c

Acoustic Foam

705009162

$14.49

1500d

Rubber Stopper

708000759

$4.19

1500f

LH Engine Fairing

705007780

$45.99

1500g

Screw M4 X 16

250000725

$3.49

1510

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1515

Stainless Flat Washer M6

234061600

$0.33

1520

Dart, Fastex

293730024

$1.39

1600

RH Engine Fairing

705007781

$45.99

1610

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1615

Stainless Flat Washer M6

234061600

$0.33

1700a

Vegas White, Fender Front LH

705013326

$204.99

1700b

LH Inner Fender

705012975

$54.99

1700c

Plastite Screw M4 X 10

250000805

$2.11

1700d

LH Front Fender Support Ass'y

705013519

$88.99

1700f

Plastite Screw M4 X 10

250000805

$2.11

1700g

LH Light Protector

705013499

$2.39

1700h

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1700j

LH Front Position Light

710007008

$119.99

1700k

Yellow, LH Reflector

705012404

$18.49

1700m

Red, Rear Reflector

705014736

$5.39

1705

Hexagonal Screw M8X25 Dog Point

250000773

$1.90

1800a

Vegas White, Fender Front RH

705013566

$309.99

1800b

RH Inner Fender

705012867

$55.99

1800c

Plastite Screw M4 X 10

250000805

$2.11

1800d

RH Front Fender Support Ass'y

705012981

$88.99

1800f

Plastite Screw M4 X 10

250000805

$2.11

1800g

RH Light Protector

705013530

$2.39

1800h

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1800j

RH Front Position Light

710007009

$119.99

1800k

Yellow, RH Reflector

705012405

$18.49

1800m

Red, Rear Reflector

705014736

$5.39

1805

Hexagonal Screw M8X25 Dog Point

250000773

$1.90
