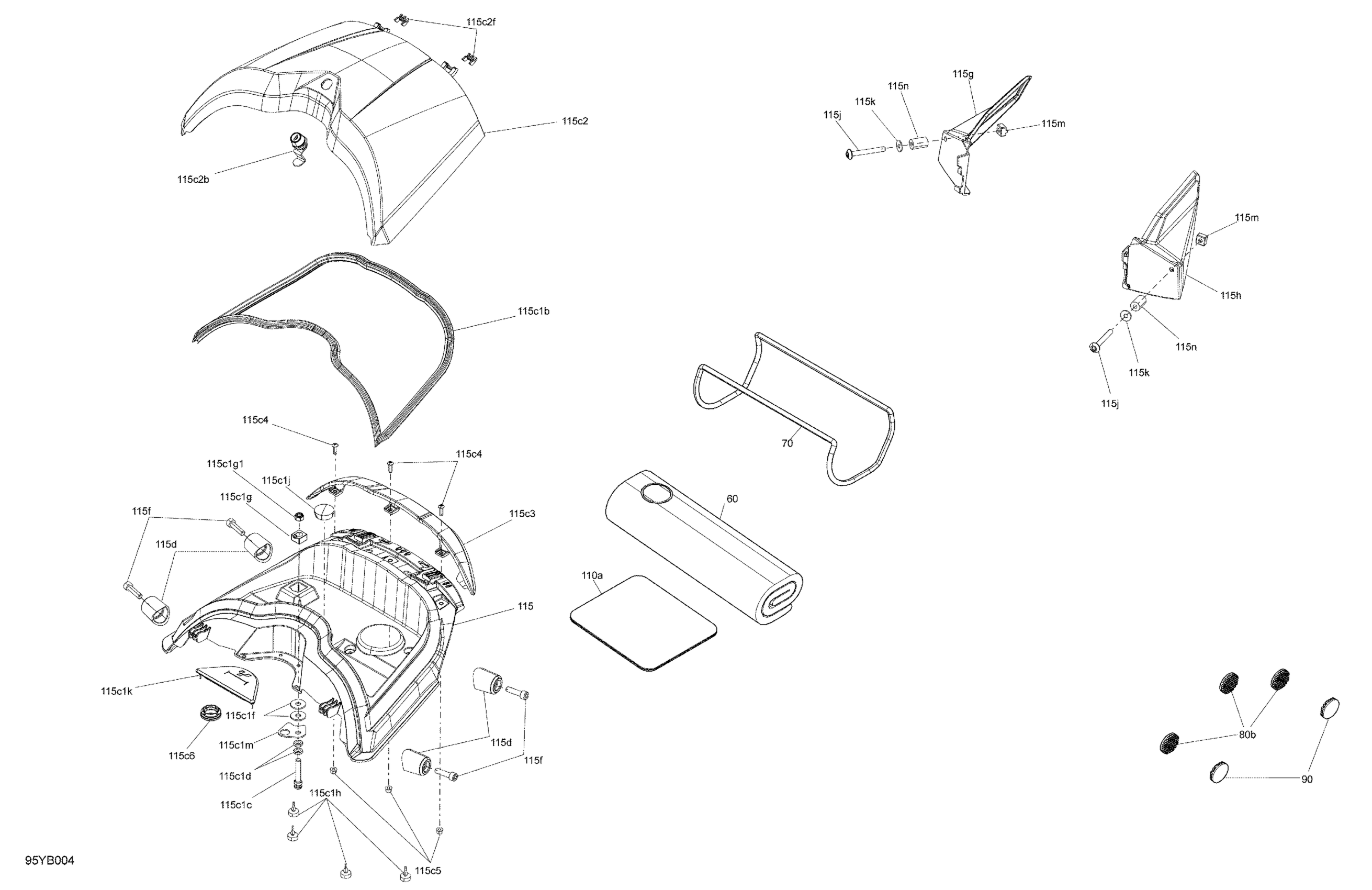

Can-Am F3 S - Special Series - Manta Green, 2022 Miscellaneous - Utilities Diagram

#

Description
Price

60

Tool Kit

520002507

$29.00

70

Strap

520001574

$4.00

80b

Dual Lock Velcro Washer 3/4"

293740028

$4.00

90

Dual Lock Velcro Washer 3/4"

293740028

$4.00

110a

Protector

705009823

$12.00

115

Manta Green, Storage Box (Spy Kit) | Included 115 to 115n

708201161

$510.00

115c1b

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

115c1c

LUG - Call your local BRP dealership

708001990

Unavailable

115c1d

Hex. Jam Nut M8

232180600

Unavailable

115c1f

Flat Washer 8 mm

234082410

Unavailable

115c1g

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

115c1g1

Hex. Elastic Nut M8 Brass

232581200

Unavailable

115c1h

Rubber Stopper

708000759

Unavailable

115c1j

Black, Nylon Cap

414916600

Unavailable

115c1k

Backrest Trim

708301604

$9.00

115c1m

Washer

708001909

$10.00

115c2

Manta Green, Box Cover Ass'y | Included 115c2 to 115c2f

708304125

$370.00

115c2b

Lock Kit

219800407

$58.00

115c2f

Opening Limiter

708301727

$3.00

115c3

Trim

708301416

$12.00

115c4

Torx Truss Screw M5 X 16, T25

250000578

Unavailable

115c5

Flange Elastic Nut M5

233251434

Unavailable

115c6

Grommet Boot

710002926

Unavailable

115d

Frame Protector

708301525

$5.00

115f

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

115g

Black, RH Footrest Trim

708302067

$5.00

115h

Carbon Black, LH Footpeg

708302066

$6.00

115j

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

Unavailable

115k

Stainless Steel Flat Washer

234062670

Unavailable

115m

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

115n

Socket Sleeve

705015387

$4.00
