Description

Price

23

External Serrated Lock Washer 6 mm

234461608

$0.92

25

Hex. Flange Nut M6

233061414

$1.34

26

External Serrated Lock Washer 6 mm

234461608

$0.92

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

40

Winch Cable (-/+) | Commander Max Package XT

710005239

$110.74

50

Positive Cable

710004390

$36.89

51

Elastic Stop Nut M6

232561414

$1.55

80

Electrical Winch Cable | XT

710004387

$46.12

130

Switch, Over ride

710002053

$19.97

140

Hi/Low Switch | Except Europe

710001725

$24.58

150

4X4 Switch

710001737

$32.28

160

Switch PPS Sport

710003541

$18.43

170

Switch DPS

710001781

$24.58

180

Switch Winch

710002052

$29.97

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Ignition Switch

710008400

Unavailable

220

Engine Start Button

710002594

$59.97

300

Harness Ass'y

710006090

$1,130.74

310

Rear Harness

710004681

$96.89

380

Radio Harness

710004339

$110.74

395

Speaker Harness | Includes 1 to S+

710004340

$23.05

408

Mount Dart

293730040

$0.86

479

Mount Dart

293730040

$0.86

600

Speedometer | Package Hunter, XT, XTP

710005653

$415.35

600a

Gauge Ring

415129348

$11.71

600b

Lens | XTP

415129349

$23.05

600c

Speedometer Button | XTP

415129355

$13.94

700

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

700a

Halogen Bulb

415129249

$39.97

701

RH Low Front Housing

710001081

$16.89

702

RH Low Rear Housing

710001082

$10.98

703

RH Low Light Support

710001094

$9.22

704

LH Low Front Housing

710001083

$16.89

705

LH Low Rear Housing

710001084

$10.98

706

LH Low Light Support

710001037

$9.22

707

Phillips Screw K40 X 16

250000723

$0.81

708

Setting Screw

710001147

$12.91

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

711

RH High Front Housing

710001085

$16.89

712

RH High Rear Housing

710001086

$10.98

713

RH High Light Support

710001115

$5.52

714

LH High Front Housing

710001087

$16.89

715

LH High Rear Housing

710001088

$10.98

716

LH High Light Support

710001036

$5.52

717

Hex. Screw M4 X 25

207142544

$1.63

718

Flat Washer M5

234051410

$0.44

719

Elastic Stop Nut M4

232541414

$0.48

740

Tail Light Ass'y | Includes 32 to 33

710001645

$81.51

740a

Bulb

520000758

$7.49

741

Hex. Screw K50 X 45

241154540

$1.74

800

Winch_Electric | Package Hunter, XT, XTP

710007030

$655.35

800

Winch_Electric | Package Hunter, XT, XTP

710007030

$655.35

801

Socket Head Screw M8 X 20

205082044

$1.09

802

Lock Washer 8 mm

234181401

$0.89

810

Winch Hook Kit

705014949

$27.66

811

Winch Hook Kit

705014949

$27.66

812

Winch Hook Kit

705014949

$27.66

815

Stopper

710007028

$10.18

820

Fairlead Roller

710007082

$59.97

821

Socket Screw M10 x 30 | XT

205003044

$2.61

822

Hex. Flange Elastic Nut M10

233201414

$1.26

835

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.22

835a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

835b

Clip

710000992

$4.00

840

Wiring Harness_Switch Winch | Package XT

710007053

$59.97

841

Torx Screw K50 X 16

250000720

$1.39

850

Solenoid

710006991

$59.97

851

Elastic Stop Nut M6

232561434

$1.55

852

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

853

Elastic Flange Nut M5

233251494

$1.74

854

Flat Washer M5

234051410

$0.44

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Rubber Pad

710003602

$11.98

920

Battery Holder

710001916

$19.20

927

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

928

Panel Nut M6 X 1.0

250100198

$1.73

930

Voltage Regulator

710005842

$159.87

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

933

Stainless Steel Flat Washer

234062670

$1.74

940

Cap

710003582

$10.14

1100

DC Outlet

710001248

$31.17

1140

GPS | Package LTD North America

710005034

$839.99

1170

GPS Support | LTD Model

710003210

$197.66

1171

Torx Head Screw M4 X 16

250000797

$1.63

1172

Elastic Stop Nut M4

232541484

$0.61

1200

Fuse Holder

710003335

$9.29

1201

Pop Rivet 3/16"

293150103

$0.54

1210

Clip

270000141

$8.33

1211

Pop Rivet 3/16"

390402400

$0.25

1213

Housing

710003006

$7.24

1300

Clip

414227300

$1.45

1400

Starter Relay

278003012

$35.07

1401

Lock Washer Helical M6

234161601

$0.92

1403

Hex. Nut M6

232061600

$0.91

1410

Torx Head Screw M6 X 16

250000717

$1.74

1411

Panel Nut M6 X 1.0

250100198

$1.73

1500

Amplifier

710005442

$433.82

1510

Amplifier Support

710002556

$106.89

1512

Torx Screw M4 X 16

250000750

$1.37

1513

Flat Washer 4 mm, Stainless

234042600

$0.92

1514

Extruded Panel Nut M4 X 0.7

250100143

$6.77

1520

Grommet Boot

710002926

$4.60

1530

Radio Interface

710002549

$372.28

1550

USB Extension

710002551

$129.20

1560

USB Extension Support

710002731

$16.89

1561

Pop Rivet 3/16"

293150103

$0.54

1580

LH Speaker HSG

705012294

$16.12

1590

RH Speaker HSG

705012293

$16.12

1591

Panel Nut M5 X 0.8

250000958

$3.48

1592

Torx Screw M5 X 20

250000724

$1.39

1593

Clip

414227300

$1.45

1610

Hose Anchor

709200036

$10.83

1611

Torx Screw M5 X 20

250000724

$1.39

1612

Elastic Flange Nut M5

233251494

$1.74

1613

Washer M5

250200025

$0.61

1620

Speaker Box Plate

710002789

$14.77

1630

Front Speaker

710003233

$86.12

1640

Speaker Cover

710002790

$13.83

1641

Socket Head Screw M4 X 25

205042560

$1.85

1642

Extruded Panel Nut M4 X 0.7

250100143

$6.77

1660

Antenna

710002810

$10.83

1670

BlueTooth Module

710005958

$17.66

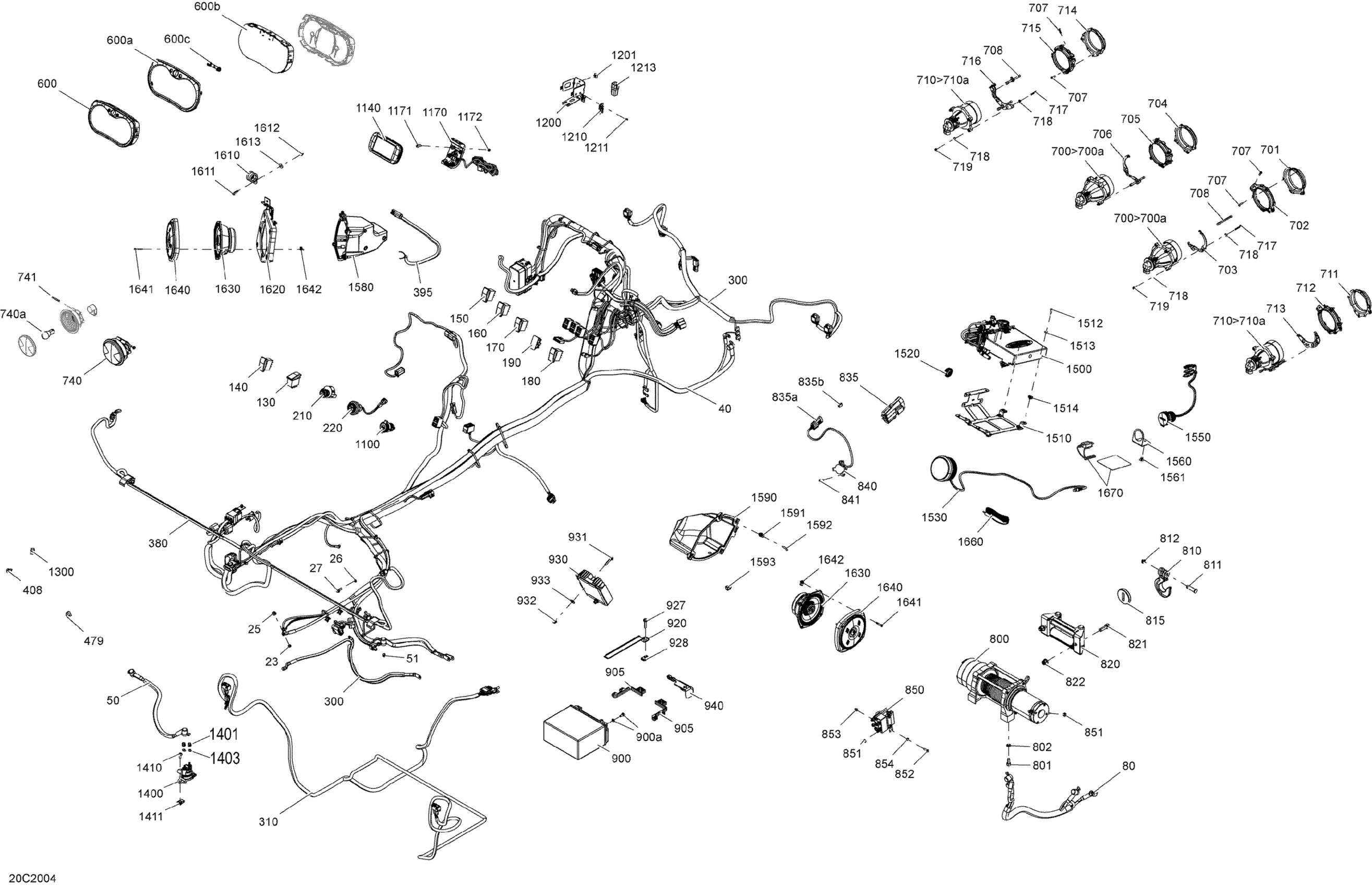

Can-Am Commander MAX 1000R EFI - 2020 Electrical System Diagram
