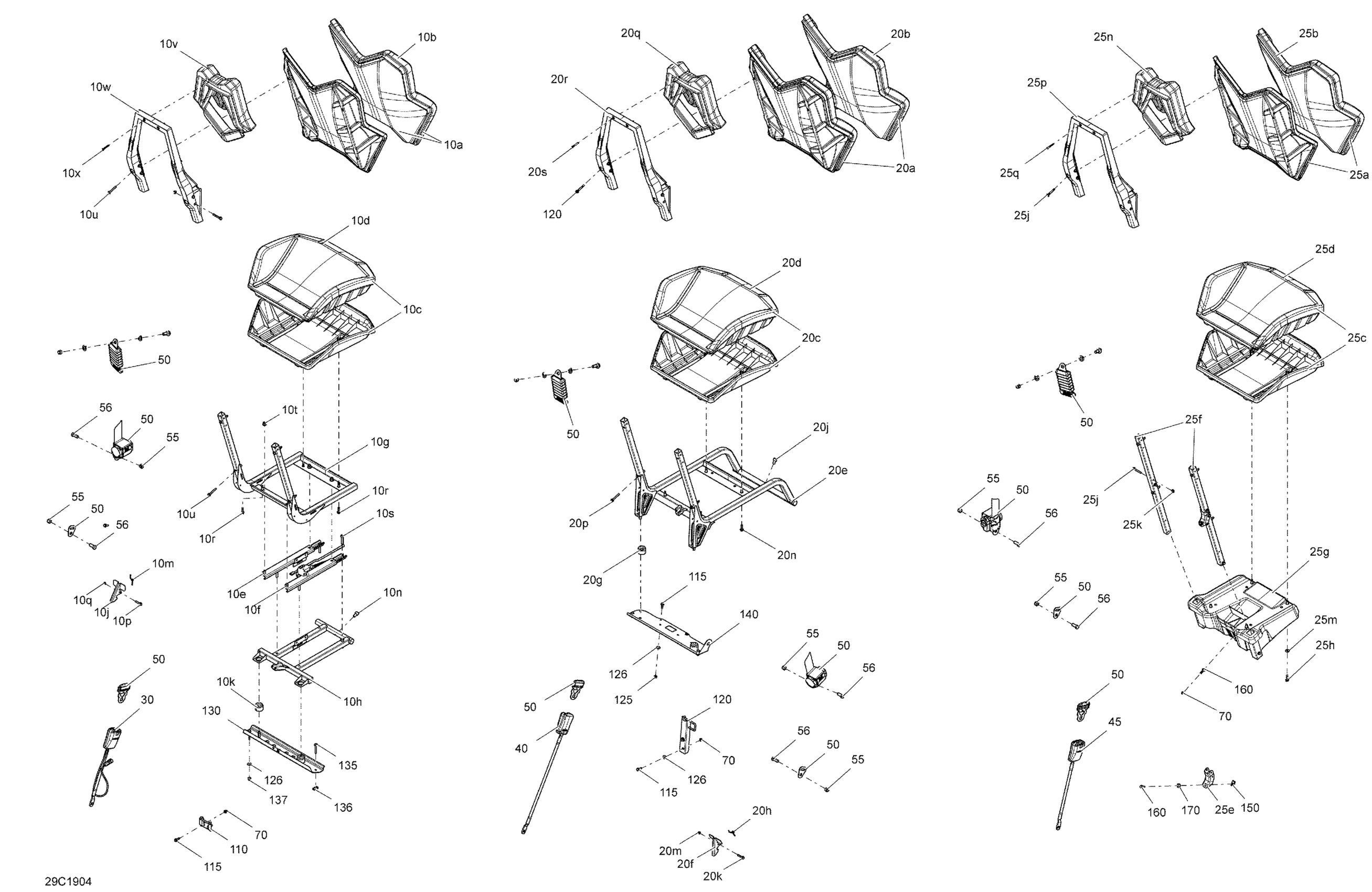

Can-Am Commander MAX 1000R EFI - 2020 Seat Diagram

#

Description
Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

10b

Backrest Cover

708000675

$97.99

10c

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

10d

Seat Cover

708001103

$117.99

10e

LH Rail

708000848

$52.99

10f

RH Rail

708001739

$35.99

10g

Operator Seat Frame

708001356

$296.24

10h

Seat Member

708001174

$72.36

10j

Seat Latch

708001355

$2.59

10k

Rubber Bumper

708001671

$2.13

10m

Spring

708000921

$0.96

10n

Socket Screw M10 X 16

205501644

$3.88

10p

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

10q

Hex. Elastic Stop Nut M6

232561600

$1.06

10r

Hex. Flange Screw M6 X 25

207562544

$1.60

10s

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

10t

Hex. Flange Elastic Nut M8

233281414

$1.31

10u

Hex. Flange Screw M6

250000672

$2.00

10v

Head Rest

708001074

$91.01

10w

Seat Support

708001245

$26.09

10x

Hex. Flange Screw K50 X 40

250000897

Unavailable

10a

Backrest Ass'y | Package LTD

708002616

$394.00

10b

Backrest Cover | Package LTD

708002618

$142.51

10c

Cushion Ass'y | Package LTD

708002617

$280.57

10d

Seat Cover | Package LTD

708002619

$91.76

10e

LH Rail

708000848

$52.99

10f

RH Rail

708001739

$35.99

10g

Operator Seat Frame

708001356

$296.24

10h

Seat Member

708000667

$56.99

10j

Seat Latch

708001355

$2.59

10k

Rubber Bumper

708001671

$2.13

10m

Spring

708000921

$0.96

10n

Socket Screw M10 X 16

205501644

$3.88

10p

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

10q

Hex. Elastic Stop Nut M6

232561600

$1.06

10r

Hex. Flange Screw M6 X 25

207562544

$1.60

10s

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

10t

Hex. Flange Elastic Nut M8

233281414

$1.31

10u

Hex. Flange Screw M6

250000672

$2.00

10v

Head Rest

708001074

$91.01

10w

Seat Support

708001245

$26.09

10x

Hex. Flange Screw K50 X 40

250000897

Unavailable

10a

Backrest Ass'y | Package LTD

708002616

$394.00

10b

Backrest Cover | Package LTD

708002618

$142.51

10c

Cushion Ass'y | Package LTD

708002617

$280.57

10d

Seat Cover | Package LTD

708002619

$91.76

10e

LH Rail

708000848

$52.99

10f

RH Rail

708001739

$35.99

10g

Operator Seat Frame

708001356

$296.24

10h

Seat Member

708001174

$72.36

10j

Seat Latch

708001355

$2.59

10k

Rubber Bumper

708001671

$2.13

10m

Spring

708000921

$0.96

10n

Socket Screw M10 X 16

205501644

$3.88

10p

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

10q

Hex. Elastic Stop Nut M6

232561600

$1.06

10r

Hex. Flange Screw M6 X 25

207562544

$1.60

10s

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

10t

Hex. Flange Elastic Nut M8

233281414

$1.31

10u

Hex. Flange Screw M6

250000672

$2.00

10v

Head Rest

708001074

$91.01

10w

Seat Support

708001245

$26.09

10x

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20b

Backrest Cover

708000675

$97.99

20c

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

20d

Seat Cover

708001103

$117.99

20e

Passenger Seat Frame

708001357

$319.99

20f

Seat Latch

708001355

$2.59

20g

Rubber Bumper

708001671

$2.13

20h

Spring

708000921

$0.96

20j

Socket Screw M10 X 16

205501644

$3.88

20k

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

20m

Hex. Elastic Stop Nut M6

232561600

$1.06

20n

Hex. Flange Screw M6 X 25

207562544

$1.60

20p

Hex. Flange Screw M6

250000672

$2.00

20q

Head Rest

708001074

$91.01

20r

Seat Support

708001245

$26.09

20s

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Package LTD

708002616

$394.00

20b

Backrest Cover | Package LTD

708002618

$142.51

20c

Cushion Ass'y | Package LTD

708002617

$280.57

20d

Seat Cover | Package LTD

708002619

$91.76

20e

Passenger Seat Frame

708001357

$319.99

20f

Seat Latch

708001355

$2.59

20g

Rubber Bumper

708001671

$2.13

20h

Spring

708000921

$0.96

20j

Socket Screw M10 X 16

205501644

$3.88

20k

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

20m

Hex. Elastic Stop Nut M6

232561600

$1.06

20n

Hex. Flange Screw M6 X 25

207562544

$1.60

20p

Hex. Flange Screw M6

250000672

$2.00

20q

Head Rest

708001074

$91.01

20r

Seat Support

708001245

$26.09

20s

Hex. Flange Screw K50 X 40

250000897

Unavailable

25a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

25b

Backrest Cover

708000675

$97.99

25c

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

25d

Seat Cover

708001103

$117.99

25e

Rear Anchor

708001474

$17.88

25f

Side Tube

708001476

$27.58

25g

Seat Support

708001198

$61.16

25h

Hex. Flange Screw M6 X 25

207562544

$1.60

25j

Hex. Flange Screw M6

250000672

$2.00

25k

Hex. Elastic Flange Nut M6

233161464

$0.96

25m

Stainless Steel Flat Washer

234062670

$2.00

25n

Head Rest

708001074

$91.01

25p

Seat Support

708001245

$26.09

25q

Hex. Flange Screw K50 X 40

250000897

Unavailable

25a

Backrest Ass'y | Package LTD

708002616

$394.00

25b

Backrest Cover | Package LTD

708002618

$142.51

25c

Cushion Ass'y | Package LTD

708002617

$280.57

25d

Seat Cover | Package LTD

708002619

$91.76

25e

Rear Anchor

708001474

$17.88

25f

Side Tube

708001476

$27.58

25g

Seat Support

708001198

$61.16

25h

Hex. Flange Screw M6 X 25

207562544

$1.60

25j

Hex. Flange Screw M6

250000672

$2.00

25k

Hex. Elastic Flange Nut M6

233161464

$0.96

25m

Stainless Steel Flat Washer

234062670

$2.00

25n

Head Rest

708001074

$91.01

25p

Seat Support

708001245

$26.09

25q

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$70.99

40

Passenger Buckle Side

708002064

$60.42

45

Rear Passenger Buckle Side

708002063

$60.42

50

Safety Belt

708002644

$260.42

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

70

Insert Half Hex Body M6 x 1.0

250100199

$2.91

110

Anchor

708001212

$17.88

115

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

120

Anchor

708001213

$21.61

125

Hex. Flange Nut M6

233061414

$1.54

126

Stainless Steel Flat Washer

234062670

$2.00

130

Seat Support

708001214

$60.42

135

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.00

136

Panel Nut M6 X 1.0

250100171

$3.69

137

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

140

Support

708001804

$44.75

150

Panel Nut M6 X 1.0

250100171

$3.69

160

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

170

Conical Spring Washer M8

234281474

$1.43

180

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

180v

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

180w

Safety Belt Screw

708000890

$3.79

180x

Position Washer

708000891

$0.97

180y

Hex. Elastic Flange Nut M6

233161464

$0.96

180z

Hex. Flange Screw M6

250000672

$2.00
