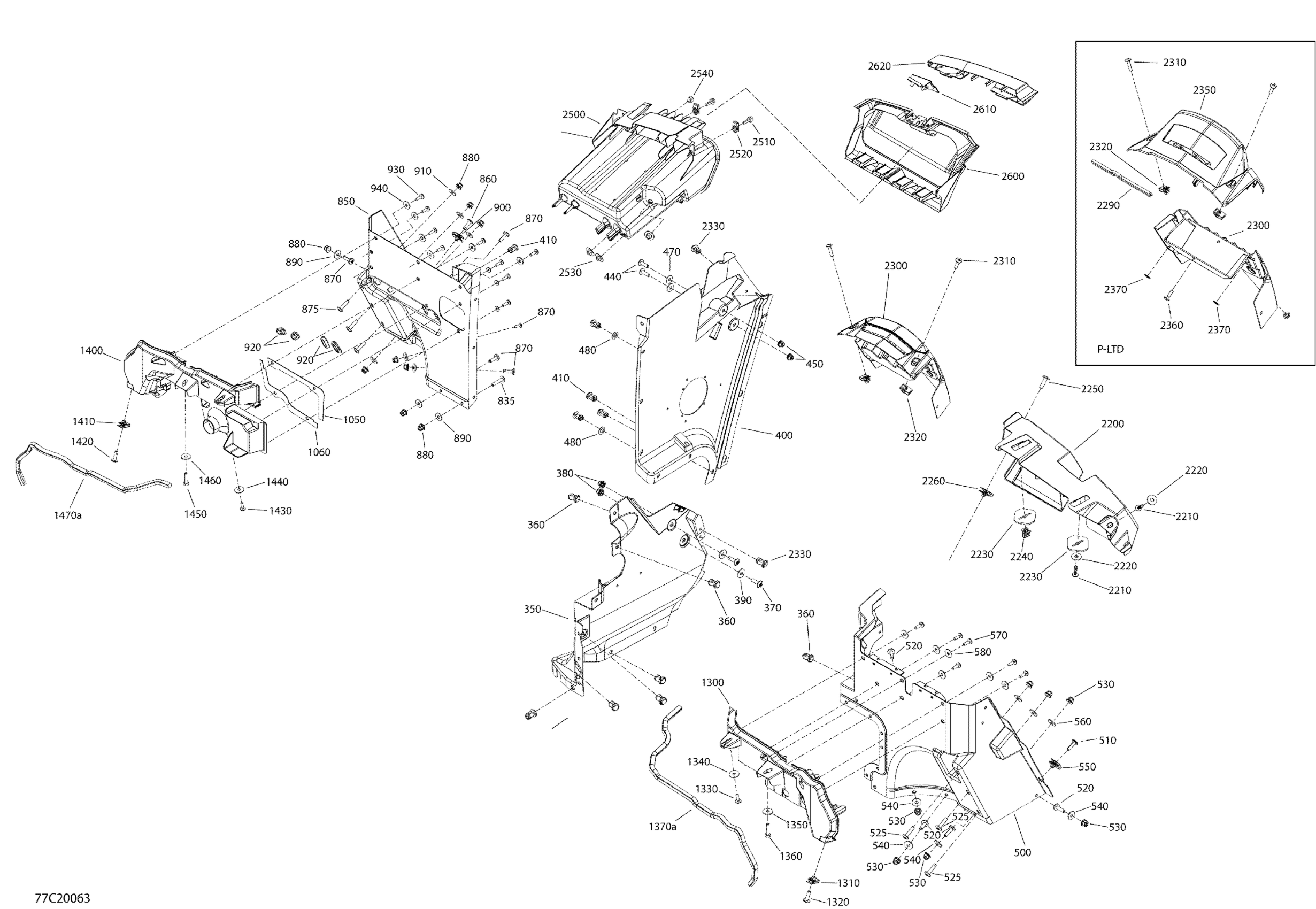

Can-Am Commander MAX 1000R EFI - 2020 Cab Interior - Front part Diagram

#

Description
Price

350

Front Side Dash Panel

707900193

$69.99

360

Tuflok Plastic Rivet

293150230

$1.47

370

Torx Screw M6 X 20

250000722

$1.68

380

Insert Half Hex Body M6 x 1.0

250100199

$3.19

390

Stainless Steel Flat Washer

234062670

$2.11

400

RH Fixe Side Console

707900021

$76.99

400

RH Fixe Side Console | LTD Model

707900098

$88.99

410

Tuflok Plastic Rivet

293150230

$1.47

440

Torx Screw M6 X 20

250000722

$1.68

450

Insert Half Hex Body M6 x 1.0

250100199

$3.19

470

Stainless Steel Flat Washer

234062670

$2.11

480

Washer

506151252

$3.17

500

LH Front Upper Floor

707900175

$83.99

510

Torx Screw M6 X 20

250000722

$1.68

520

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 25

250000758

$2.11

530

Hex. Flange Elastic Nut M6

233261494

$1.58

540

Stainless Steel Flat Washer

234062670

$2.11

550

Panel Nut M6 X 1.0

250100198

$2.11

560

Stainless Steel Flat Washer

234062670

$2.11

570

Torx Screw K50 X 16

250000720

$1.69

580

Flat Washer 6 mm

234062410

$0.77

835

Torx Truss Screw M6 X 30

250000843

$2.11

850

RH Front Floor

707900004

$83.99

860

Torx Screw M6 X 20

250000722

$1.68

870

Torx Screw M6 X 20

250000712

$2.11

875

Torx Screw M6 X 25

250000758

$2.11

880

Hex. Flange Elastic Nut M6

233261494

$1.58

890

Stainless Steel Flat Washer

234062670

$2.11

900

Panel Nut M6 X 1.0

250100198

$2.11

910

Stainless Steel Flat Washer

234062670

$2.11

920

Oblong Grommet

705003668

$5.79

930

Torx Screw K50 X 16

250000720

$1.69

940

Flat Washer 6 mm

234062410

$0.77

1050

Upper Seal

293250252

$2.59

1060

Bottom Seal

293250253

$2.79

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$12.99

1310

Panel Nut M6 X 1.0

250100198

$2.11

1320

Torx Screw M6 X 20

250000722

$1.68

1330

Torx Screw K50 X 16

250000720

$1.69

1340

Flat Washer

224060201

$1.26

1350

Hex. Screw M6 X 25

207162544

$1.15

1360

Flat Washer

224061201

$1.37

1370a

Was 293200017 Neoprene Seal

219704365

$149.99

1400

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

1410

Panel Nut M6 X 1.0

250100198

$2.11

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Torx Screw K50 X 16

250000720

$1.69

1440

Flat Washer

224060201

$1.26

1450

Hex. Screw M6 X 25

207162544

$1.15

1460

Flat Washer

224061201

$1.37

1470a

Was 293200017 Neoprene Seal

219704365

$149.99

2200

Dashboard Ass'y

715001250

$79.99

2210

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2220

Stainless Steel Flat Washer

234062670

$2.11

2230

Support Plate

705003841

$0.99

2240

Edge Clip

517302785

$0.88

2250

Torx Screw M6 X 20

250000722

$1.68

2260

Panel Nut M6 X 1.0

250100198

$2.11

2290

Was 271000110 Protection Trim

219704353

$15.99

2300

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

2300

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

2310

Torx Screw M5 X 20

250000724

$1.69

2320

Panel Nut M5 X 0.8

250000958

$4.23

2330

Tuflok Plastic Rivet

293150230

$1.47

2350

Gauge Support | LTD Model

707900066

$38.99

2360

Torx Screw K50 X 16

250000720

$1.69

2370

Push Nut

732610072

$2.19

2500

Storage Bin | XT

707900046

$104.99

2510

Hex. Flange Screw M6 X 20

207662034

$2.11

2520

Panel Nut M6 X 1.0

250100198

$2.11

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$8.09

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

2610

Latch

707900031

$8.49

2620

Trim Glove Box

707900062

$18.49

3600

Torx Screw M5 X 14

250000742

$1.47

3610

Flat Washer

250200040

$1.90

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3620

Hex. Flange Screw M8 X 20

207682044

$1.15

3625

Hex. Flange Elastic Nut M8

233281414

$1.47
