Description

Price

10a

Fuel Tank

709000753

$769.97

10b

Rollover Valve

709000413

$52.28

10c

Ring

709000274

$14.85

10d

O-Ring

709000275

$16.12

10e

Fuel Pump | Includes 5 to 6

709000759

$368.77

10f

Neoprene Pad

709000288

$13.83

10g

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

20

Fuel Cap | Except Europe

709000529

$29.97

100

Was 709000163 Fuel Line

219704440

$108.43

110

Was 709000163 Fuel Line

219704440

$108.43

120

Was 709000163 Fuel Line

219704440

$108.43

125

Tubing 16 Mm 1000Mm Long

219704408

$6.23

130

Tubing 16 Mm 1000Mm Long

219704408

$6.23

200

Tubing 16 Mm 1000Mm Long

219704408

$6.23

291

Crimp Clamp, 15.3-706R

293650047

$2.64

370

Insert Half Hex Body M6 x 1.0

250100199

$2.54

380

Hex. Flange Screw M6 X 25

207562544

$1.39

390

Flat Washer

224060201

$1.15

400

Rubber Washer

293830037

$2.75

560

Quick Attach 90°

275500700

$12.61

580

Y-Fitting, 5/16''

293710136

$6.45

620

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

630

Filter

709000330

$8.29

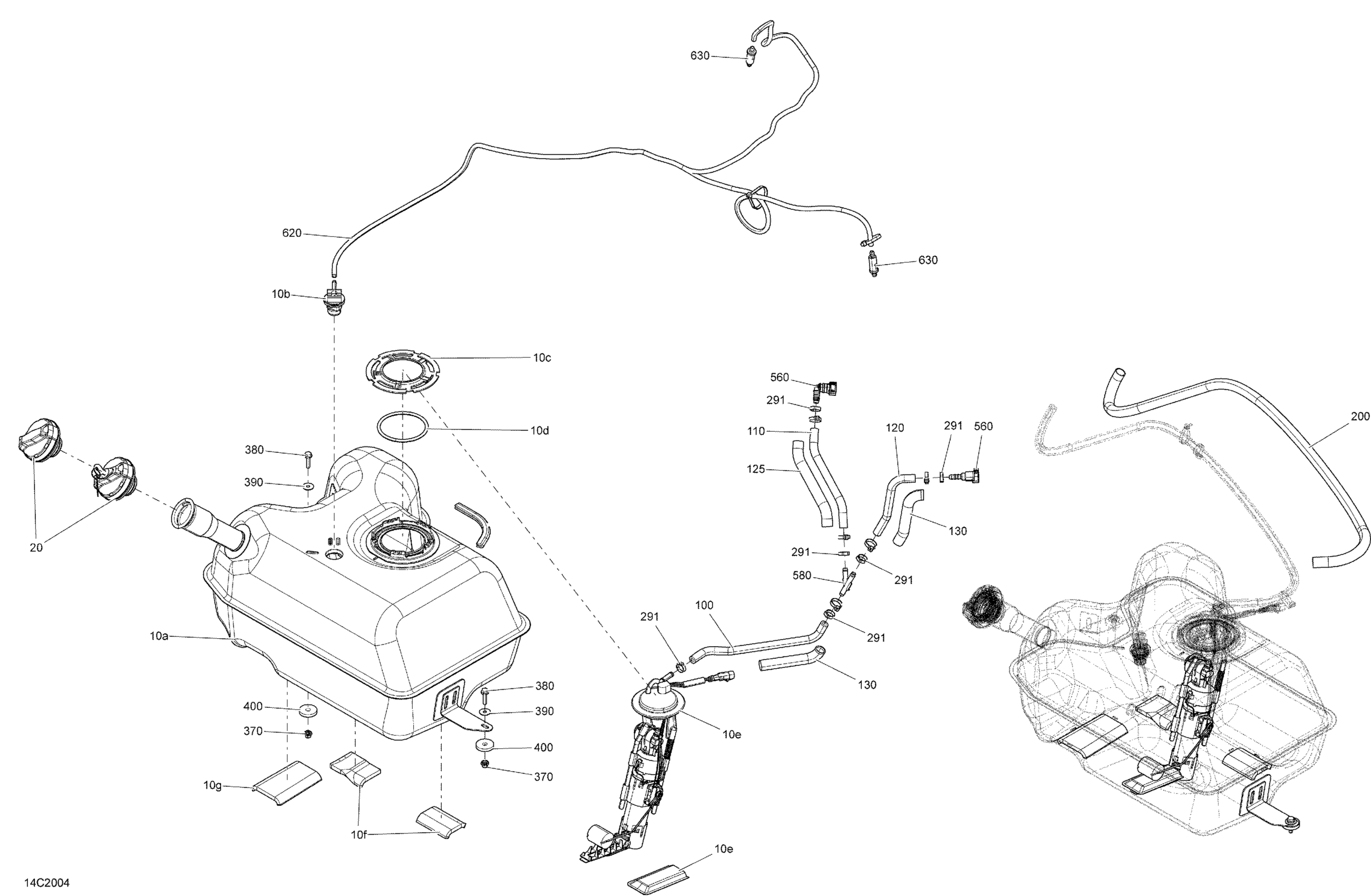

Can-Am Commander MAX 1000R EFI - 2020 Fuel Diagram

NEOPRENE PAD - Call your local BRP dealership
