Description

Price

12

Torx Screw K50 X 16

250000720

$1.39

17

Plug

707001185

$1.37

18

Retainer Clip

707800506

$10.98

28

Hex. Flange Screw M6 X 50

207665044

$3.38

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

External Serrated Lock Washer 6 mm

234461608

$0.92

33

Insulator Pad

710000073

$11.06

90

Accelerator Pedal

707001166

$281.51

91

Bushing

707000848

$1.08

92

Hex. Flange Nut M8

233081416

$1.63

130

Anti Vibration Buffer

707001170

$23.05

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

230

Upper Engine Bracket

707000707

$5.54

231

Hex. Flange Screw M10 X 25

207602544

$1.33

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.75

275

Norma Clamp

293650091

$4.60

280

Air Inlet

707001339

$16.89

290

Air Inlet

707001228

$50.74

291

Panel Nut M6 X 1.0

250100198

$1.73

292

Flat Washer

250200082

$0.35

293

Torx Screw M6 X 20

250000722

$1.34

294

Reflector

707001346

$27.66

300

Flexibale Adaptor

707002585

$14.75

310

Primary Air Intake

707000909

$23.05

320

Adaptor

707000908

$36.89

330

CVT Filter

707001344

$14.75

340

Adaptor

707001274

$15.35

350

Norma Gear Clamp

293650118

$9.74

360

CVT Outlet

707001243

$64.58

365

Reflective Sheet

707000991

$9.29

370

Reflector

707000988

$4.98

390

Screw M4 X 16

250000725

$2.87

400

Reflector

707001284

$7.69

410

Reflector

707001360

$7.69

420

Reflector

707001286

$7.69

500

Lever

707000911

$18.43

501

Hex. Flange Screw M6 X 35

207663544

$0.74

502

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

510

Cable Support | Engine 1000

707000919

$15.22

521

Hex. Flange Screw M10 X 25

207602544

$1.33

530

Shifting Cable

707001283

$69.20

531

Hex. Elastic Stop Nut M8

232581414

$0.47

532

Flat Washer 10 mm

234001410

$0.98

610

Lower Lever Arm

707000828

$16.89

612

Flanged Bushing

707000847

$1.00

613

Bushing

707000801

$2.48

614

Flat Washer 6 mm

234062410

$0.64

615

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

616

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

620

Upper Lever Arm

707000711

$36.89

621

Flanged Bushing

707000869

$2.20

622

Bushing

707001376

$4.22

623

Hex. Flange Screw M6 X 50

207665044

$3.38

624

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

630

Lever Arm Spring

707000750

$2.75

640

Lever Handle

707000284

$18.43

641

Hex. Jam Nut M8

232180491

$6.18

655

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

656

Clip

414227300

$1.45

657

Y-Fitting

293710059

$8.19

658

Grommet

293720029

$1.13

660

Spring Clamp

414415200

$0.83

670

Open Clamp

518321570

$6.03

680

Straight Fitting

293710039

$7.37

690

Front Adaptor

707001229

$23.05

700

Norma Gear Clamp

293650118

$9.74

705

Norma Clamp

293650091

$4.60

710

CVT Outlet

707001230

$46.12

720

Front Support

707001231

$14.37

730

Rear Support

707001232

$8.46

731

Hex. Flange Screw M6 X 20

207662044

$1.66

732

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

740

Tuflok Plastic Rivet

293150230

$1.21

750

Flat Washer 6 mm

234062410

$0.64

760

Hex. Flange Screw M6 X 16

210261650

$1.22

950

Flexible Adaptor

707001400

$20.74

960

Air Inlet

707001401

$46.12

970

Filter

707001422

$19.20

971

Torx Screw K50 X 16

250000720

$1.39

990

Norma Clamp

293650091

$4.60

1000

Tuflok Plastic Rivet

293150230

$1.21

1050

Washer M5

250200025

$0.61

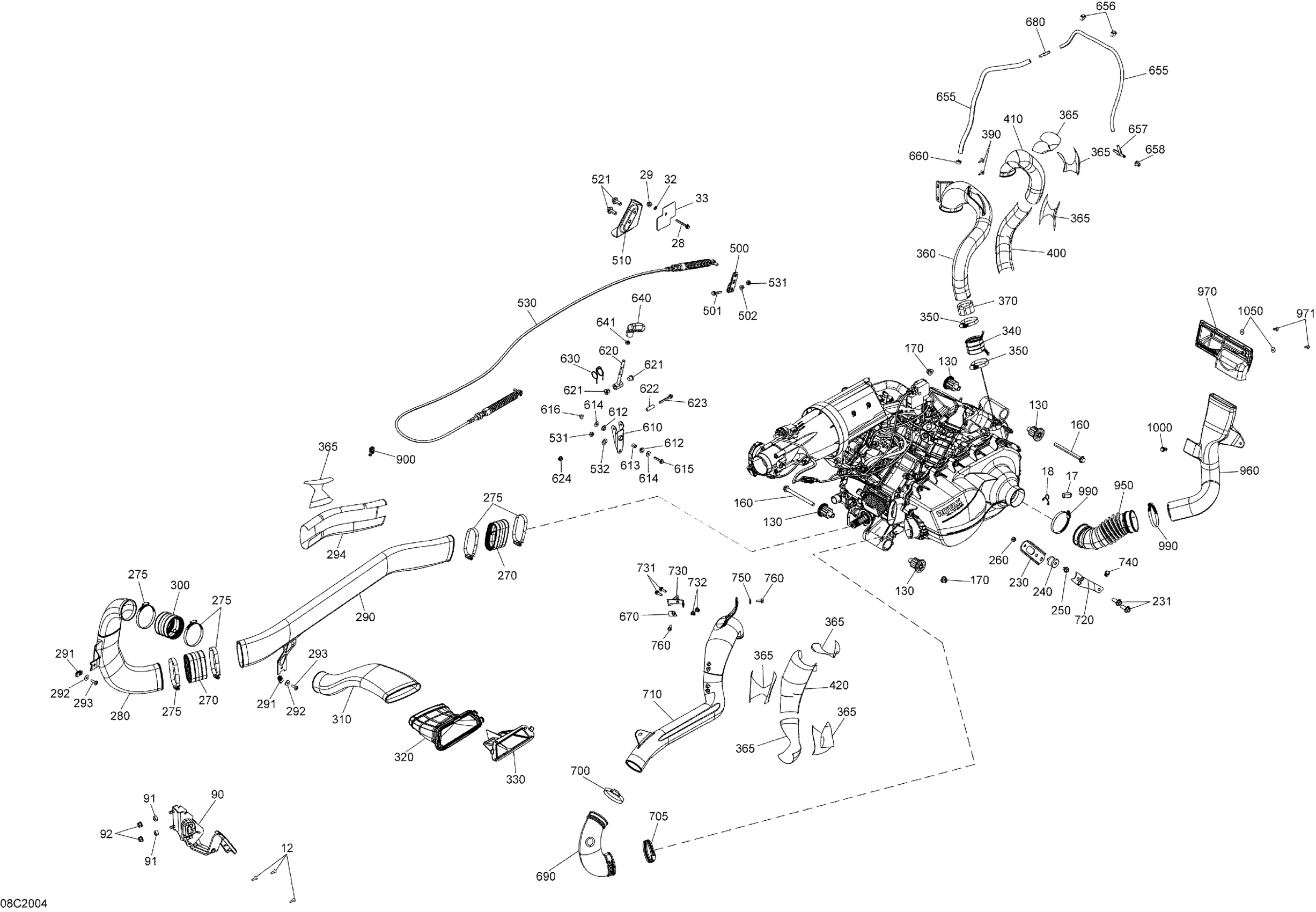

Can-Am Commander MAX 1000R EFI - 2020 Engine Diagram
