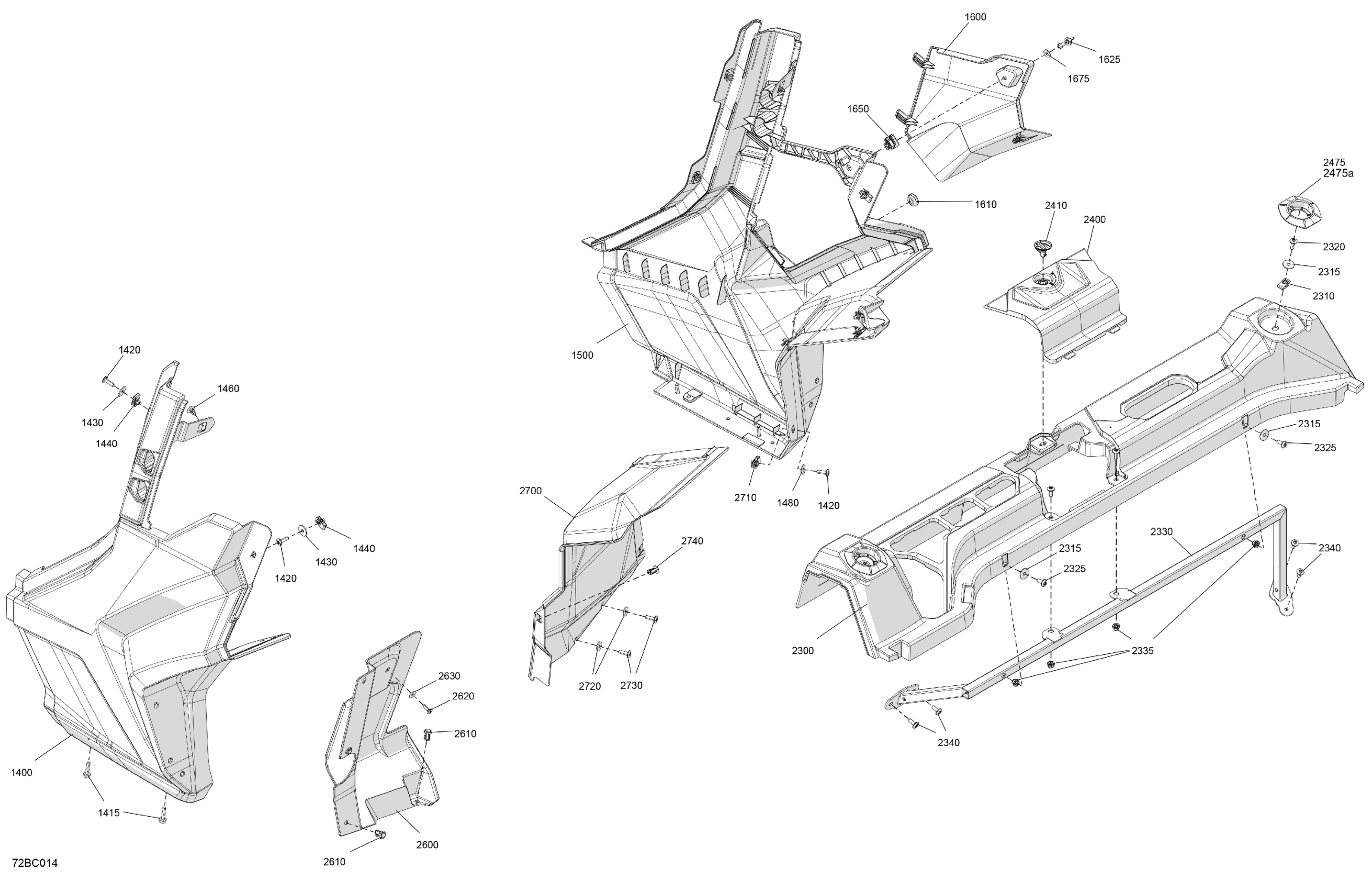

Can-Am Commander 1000R EFI - XT - International, 2023 Body - Rear Section Diagram

Description

Price

1400

LH Rear Fender

705015053

$189.97

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1460

Black, Dart

414644300

$0.78

1480

Stainless Steel Flat Washer

234062670

$1.74

1500

RH Rear Fender

705015055

$189.97

1600

Air Filter Acces Door

705015057

$73.82

1610

Grommet

705003264

$3.43

1625

Quarter Turn

708400278

$4.98

1650

Clip

708400285

$4.02

1675

Washer

708400286

$4.02

2300

Rear Upper Cab Panel Ass'y

715008563

$143.05

2310

Panel Nut M6 X 1.0

250100198

$1.73

2315

Flat Washer M6.6 X 22

250200162

$1.91

2320

Torx Screw M6 X 20

250000722

$1.34

2325

Torx Screw M6 X 20

250000722

$1.34

2330

Cab Panel Support

705015686

$115.35

2335

Insert Half Hex Body M6 x 1.0

250100199

$2.54

2340

Torx Truss Screw M6 X 16

250000721

$1.39

2400

Liquid Acces Cover

705015149

$69.20

2410

Cover Latch Quarter Turn

708400065

$2.99

2475

Rear Cage Trim Kit | Includes 2475 to 2475a

705016344

$26.89

2475a

Rear Cage Trim

705015862

$4.28

2600

LH Rear Wheel Arch Protector

705015886

$42.28

2610

Tuflok Plastic Rivet

293150230

$1.21

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Wheel Arch Protector

705016135

$42.28

2710

Panel Nut M6 X 1.0

250100198

$1.73

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2740

Tuflok Plastic Rivet

293150230

$1.21
