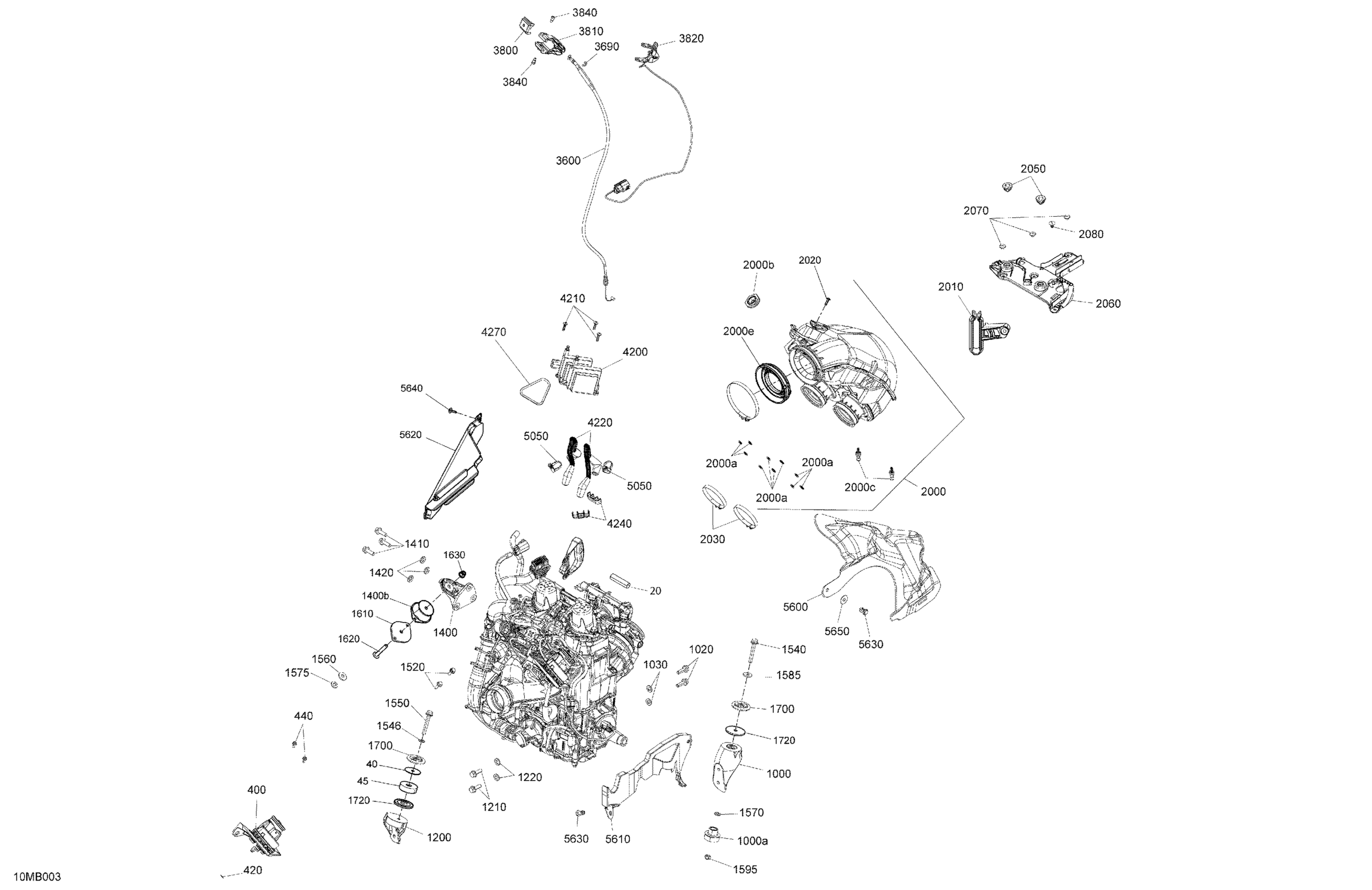

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2022 Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

Unavailable

40

Washer

512061333

Unavailable

45

PTO Limiter

512061334

Unavailable

400

Servo Motor Ass'y

420889432

Unavailable

420

Circlip

293370122

Unavailable

440

Hex. Flange Screw M5 X 10

207551044

Unavailable

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$74.58

1000a

Vibration Damper

512061516

$57.66

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1030

Conical Spring Washer M8

250200146

Unavailable

1200

Front PTO Support

512061025

$29.97

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1220

Conical Spring Washer M8

250200146

Unavailable

1400

MAG Support | Includes 1400 to 1400b

512061344

$76.89

1400b

Vibration Damper

512061516

$57.66

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

1420

Conical Spring Washer M8

250200146

Unavailable

1520

Hex. Flange Screw M6 X 16

250001062

Unavailable

1540

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

Unavailable

1546

Conical Spring Washer M8

250200146

Unavailable

1550

Hex. Flange Screw M8 X 55

207585544

Unavailable

1560

Washer

506151245

Unavailable

1570

Flat Washer With Teflon 8 mm

250200008

Unavailable

1575

Conical Spring Washer M8

250200146

Unavailable

1585

Yellow, Washer

503183200

Unavailable

1595

Hex. Elastic Stop Nut M8

232581414

Unavailable

1610

Spacer | Includes 1610 to 1610b

512061398

$7.38

1620

Torx Truss Screw M8 X 50

250000761

Unavailable

1630

Hex. Flange Elastic Nut M8

233281414

Unavailable

1700

Engine Stopper

512061137

Unavailable

1720

Spacer

512061354

Unavailable

2000

Chamber Ass'y | Includes 2000 to 2000j

508001092

Unavailable

2000a

Push Nut

732610072

Unavailable

2000b

Rubber

512061083

Unavailable

2000c

Screw

420441840

Unavailable

2000e

Boot

508000805

$16.89

2010

Cable Guide

512061325

Unavailable

2020

Torx-Truss Pt K40 X 16

250000759

Unavailable

2030

GEMI Clamp

293650212

Unavailable

2050

Rubber Cap

420201630

Unavailable

2060

Airbox Support

512061274

$10.57

2070

Pop Rivet 3/16"

293150103

Unavailable

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3600

Throttle Cable

512061326

$19.97

3690

Circlip

414274500

Unavailable

3800

Upper Housing

512060859

Unavailable

3810

Lower Housing

512060860

Unavailable

3820

Throttle Ass'y

512061266

$114.58

3840

Flange Screw M5x12

250000991

Unavailable

4200

Ignition Coil

512061168

Unavailable

4210

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

4220

Ignition Cable

512061166

Unavailable

4240

Spark Plug Wire Holder

512061238

Unavailable

4270

O-Ring

293300059

$7.31

5050

Clamp

512060993

Unavailable

5600

LH Acoustic Cover

512061305

$36.12

5610

LH Acoustic Cover Ass'y | Includes 5610 to 5610c

512061400

$18.43

5620

RH Acoustic Cover | Not Shown

512061216

$23.05

5630

Tuflok Plastic Rivet

293150230

Unavailable

5640

Screw M4 X 16

250000725

Unavailable

5650

Washer

506153003

$2.06
