Description

Price

1

Ball Bearing

420232100

$15.57

2

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$281.51

3

Step Collar

420847933

$37.66

4

Oil Seal

420230198

$15.35

5

Ball Bearing

420232100

$15.57

6

Rotary Seal

420650371

$35.72

7

Not Available As Spare Part - Friction Washer

Unavailable

8

O-Ring

420950890

$4.28

9

Allen Screw M5 x 16

420840514

$1.85

10

Cover Washer

420944035

$5.22

11

Impeller | Except SHOT

420922808

$36.89

12

Gasket Housing This part replaces 420430053.

420430054

$8.34

13

Waterpump Housing | Except SHOT

420822286

$59.97

14

Torx Flange Screw M6 X 25

420440234

$3.00

15

Molded Hose This part replaces 420822803.

420822805

$72.28

16

Clamp 26-38MM

420951120

$4.15

17

Thermostat Housing | Includes 17 to 18

420822836

$73.05

18

O-Ring

420430062

$2.06

19

Spring Clip

420939344

$2.06

20

Return Hose

420822820

$10.52

21

Locking Tie 175 X 4 MM

420651817

$0.86

22

Molded Hose

420201516

$10.52

23

Molded Hose

420201512

$10.52

24

Clamp

420853511

$7.31

25

Clamp

420851250

$9.31

26

Clamp

420851458

$7.23

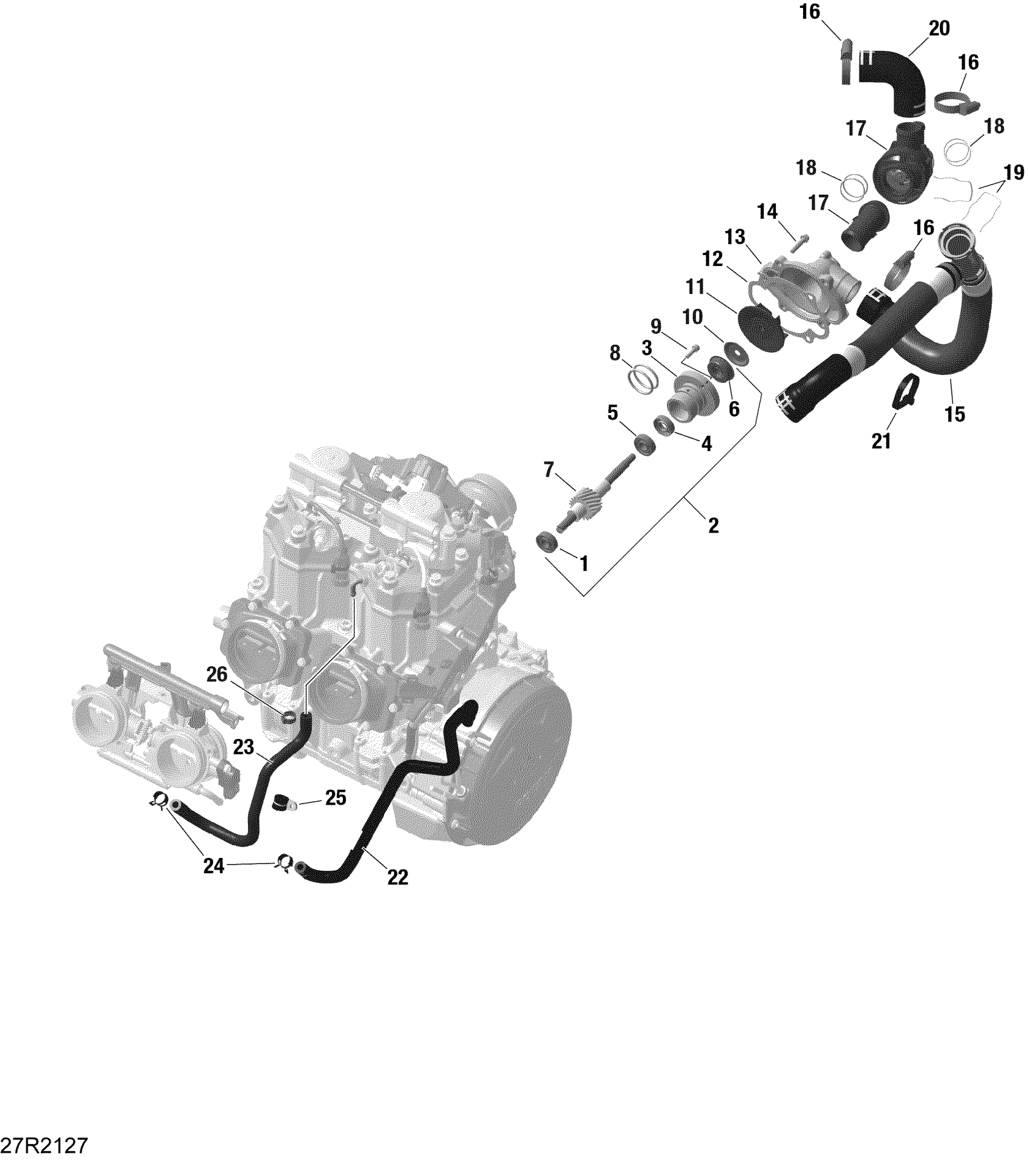

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2022 Rotax - Engine Cooling - NA Diagram
