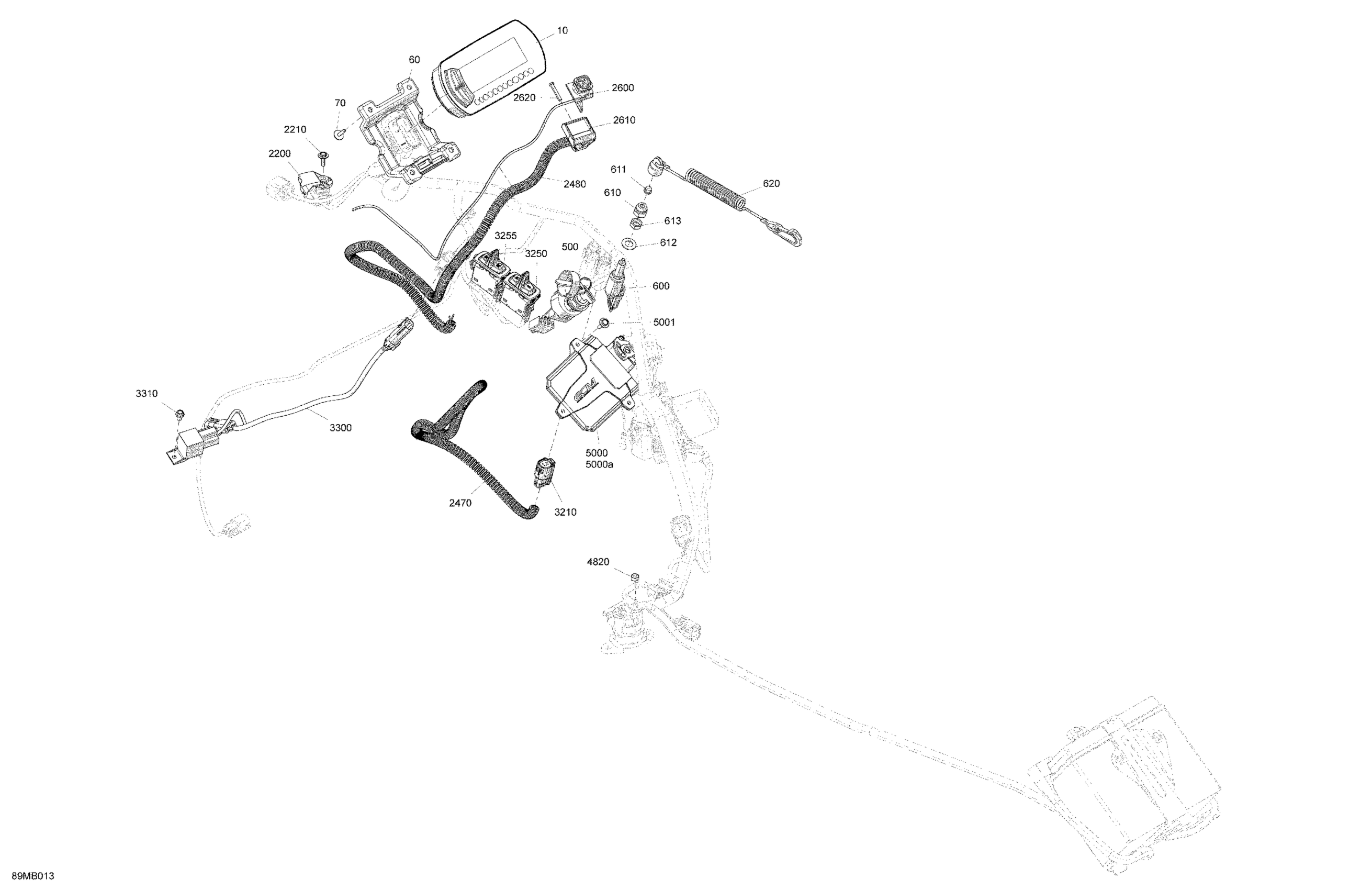

Ski-Doo TUNDRA 600 EFI - LT - 2022 Electric - Upper Section Diagram

Description

Price

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

Housing

515178450

$5.06

Screw M4 X 16

250000725

$3.30

500

Ignition Swirch

515177063

$47.73

600

Brake Switch

515175653

$17.88

610

Switch Nut

515145900

$10.51

611

Plunger Cap

570151100

$9.13

612

Flat Washer

250200084

$3.16

613

RH Threaded Hex. Jam Nut M10

732610010

$0.70

620

Cap Ass'y

515178283

$36.54

2200

Pressure And Temperature Sensor

707000995

$81.31

2210

Screw M4 X 16

250000725

$3.30

2470

Sheath Corrugated 9 MM ID

515178885

$1.40

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515177931

$72.36

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

3210

4 Circuits Female Housing

515178177

$11.54

3250

Switch Rocker Hand Warmer

515178462

$18.63

3255

Switch Rocker Headlignt

515178463

$18.63

3300

Fan Wiring Harness

515178805

$49.97

3310

Hex. Flange Screw M5 X 10

207551044

$3.88

4820

Elastic Stop Nut M6

232561434

$1.78

5000

ECM Module

515179453

$291.76

5000a

Capacitor

515177272

$82.81

5001

Screw M4 X 16

250000725

$3.30
