Description

Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$253.82

10b

Fuel Pump Module Nut

709000328

$12.82

20

Seal

709000208

$12.54

30

Fuel Pump | Includes 30 to 30a

709001189

$326.69

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

40

Hose Filler Neck

709000595

$32.28

50

Norma Clamp

293650081

$9.87

60

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$32.28

120

Retaining Strap

709001291

$36.89

140

Retaining Strap

709001141

$36.89

150

Flat Washer 8 mm

234081410

$0.69

160

Hex. Elastic Nut M8 Brass

232581200

$1.29

190

Screw PT Type K-50 X 16

250000959

$1.74

200

Hose 7,94 MM ID 3000MM Long

219704475

$87.66

205a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp

293650053

$2.42

330

Crimp Clamp

293650053

$2.42

400

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

515

Filter

709001120

$8.29

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

530a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

545

Y-Fitting

293710059

$8.19

550a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

1000

Heat Shield

707002670

$32.28

1010

Heat Shield

707002671

$32.28

1020

Heat Shield

707002673

$32.28

1030

Heat Shield

707002719

$32.28

5000

Hose Support | Not shown

707003073

$1.49

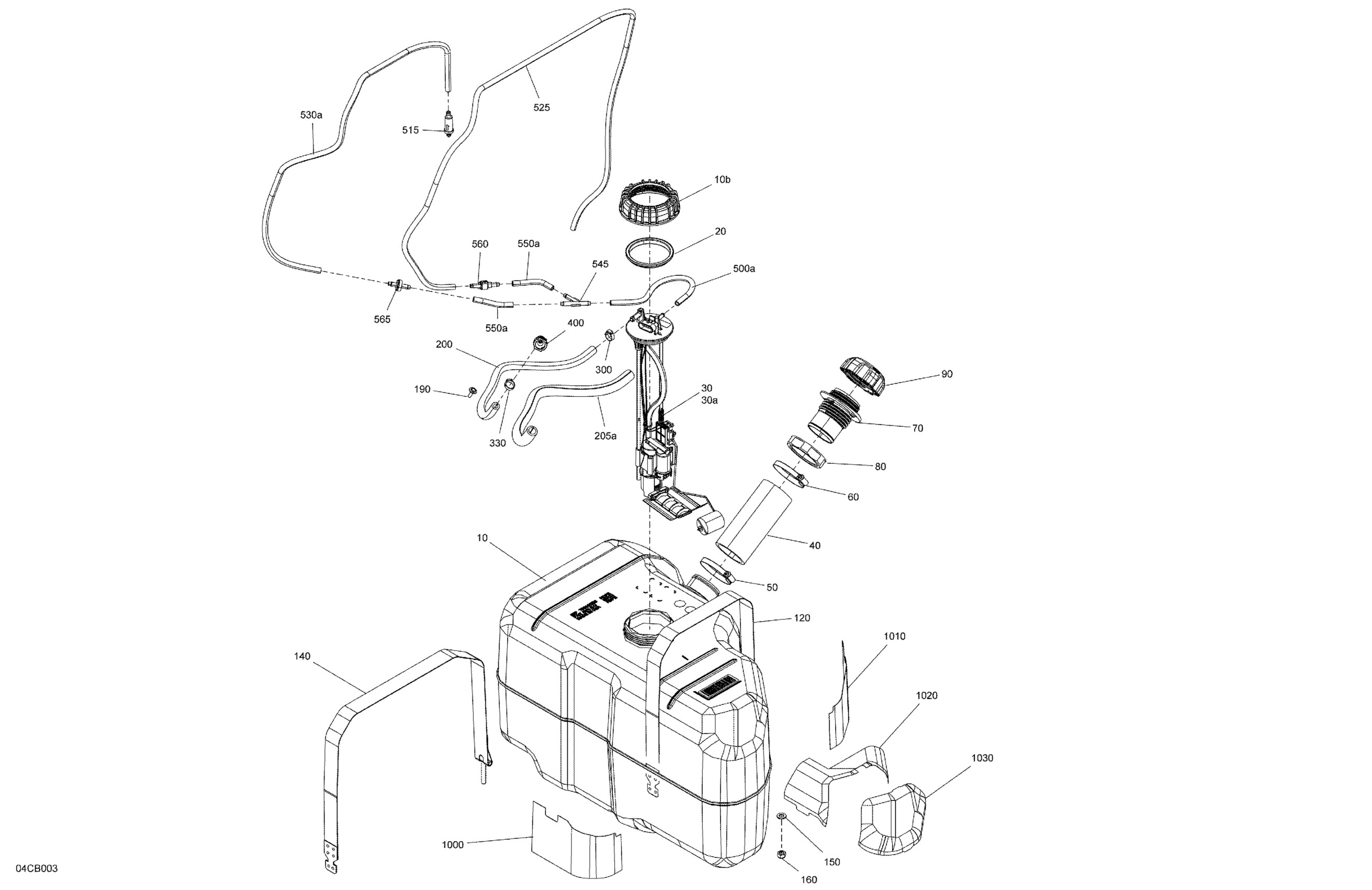

Can-Am Traxter T HD7 - XU - T Regulation, 2022 Engine - Fuel Diagram
