- Traxter HD10 - XT - CE, 2021
Frame - System

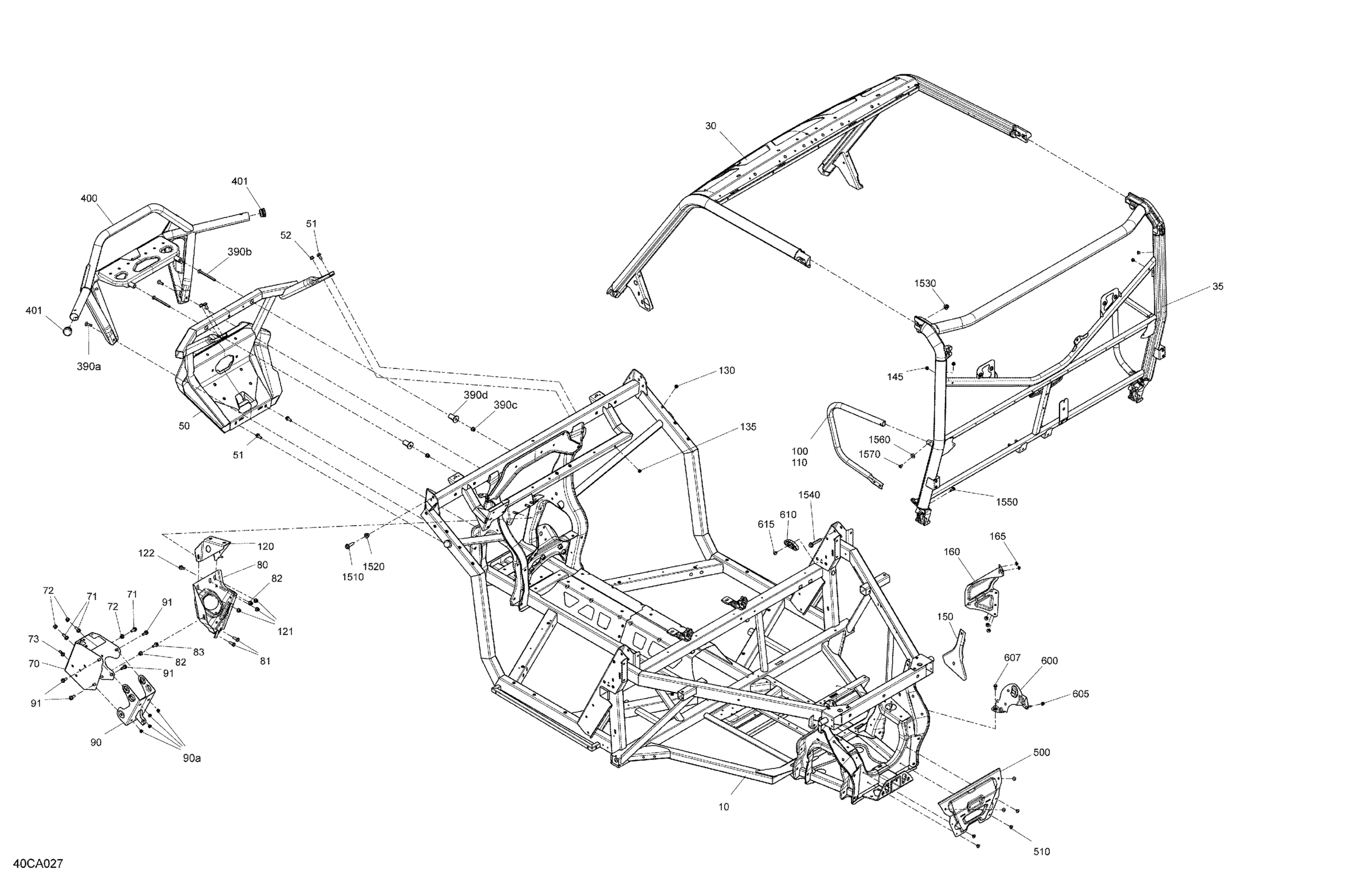

Can-Am Traxter HD10 - XT - CE, 2021 Frame - System Diagram
#
50
Deep Black, Front Bumper
705207588
Unavailable
52
Hex. Elastic Flange Nut M8
233281416
Unavailable
70
Module Support
705209388
Unavailable
71
Hex. Flange Screw M8 X 20
207682044
Unavailable
72
Hex. Elastic Flange Nut M8
233281416
Unavailable
80
Power Steering Support
705208741
Unavailable
82
Hex. Elastic Flange Nut M8
233281416
Unavailable
83
Hex. Flange Screw M8 X 20
207682044
Unavailable
90
Steering Column Support | Includes 90 to 90d
705209190
Unavailable
90a
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
100
Deep Black, LH Protector Tube
705204594
Unavailable
110
Deep Black, RH Protector Tube
705204592
Unavailable
120
Support
705208742
Unavailable
121
Hex. Elastic Flange Nut M8
233281416
Unavailable
122
Hex. Flange Screw M8 X 20
207682044
Unavailable
130
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
135
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
145
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
160
Heat Shield
707002717
Unavailable
165
Pop Rivet 3/16"
293150103
Unavailable
390a
Torx Screw M8 X 30
250000886
Unavailable
390c
Hex. Flange Elastic Nut M8
233281414
Unavailable
390d
Spacer
705207754
Unavailable
401
Cap
705202455
Unavailable
500
Rear Chassis Reinforcement
705207753
Unavailable
600
Voltage Regulator Support
710007522
Unavailable
605
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
607
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
610
Spacer
705208203
Unavailable
1520
Hex. Flange Elastic Nut M10
233201436
Unavailable
1530
Flange Elastic Nut M10
233201466
Unavailable
1540
Hex. Flange Screw M10 X 6
207606046
Unavailable
1550
Hex. Flange Screw S.Grip M6 X 20
207562054
Unavailable
1560
Offset Washer
705202223
Unavailable
