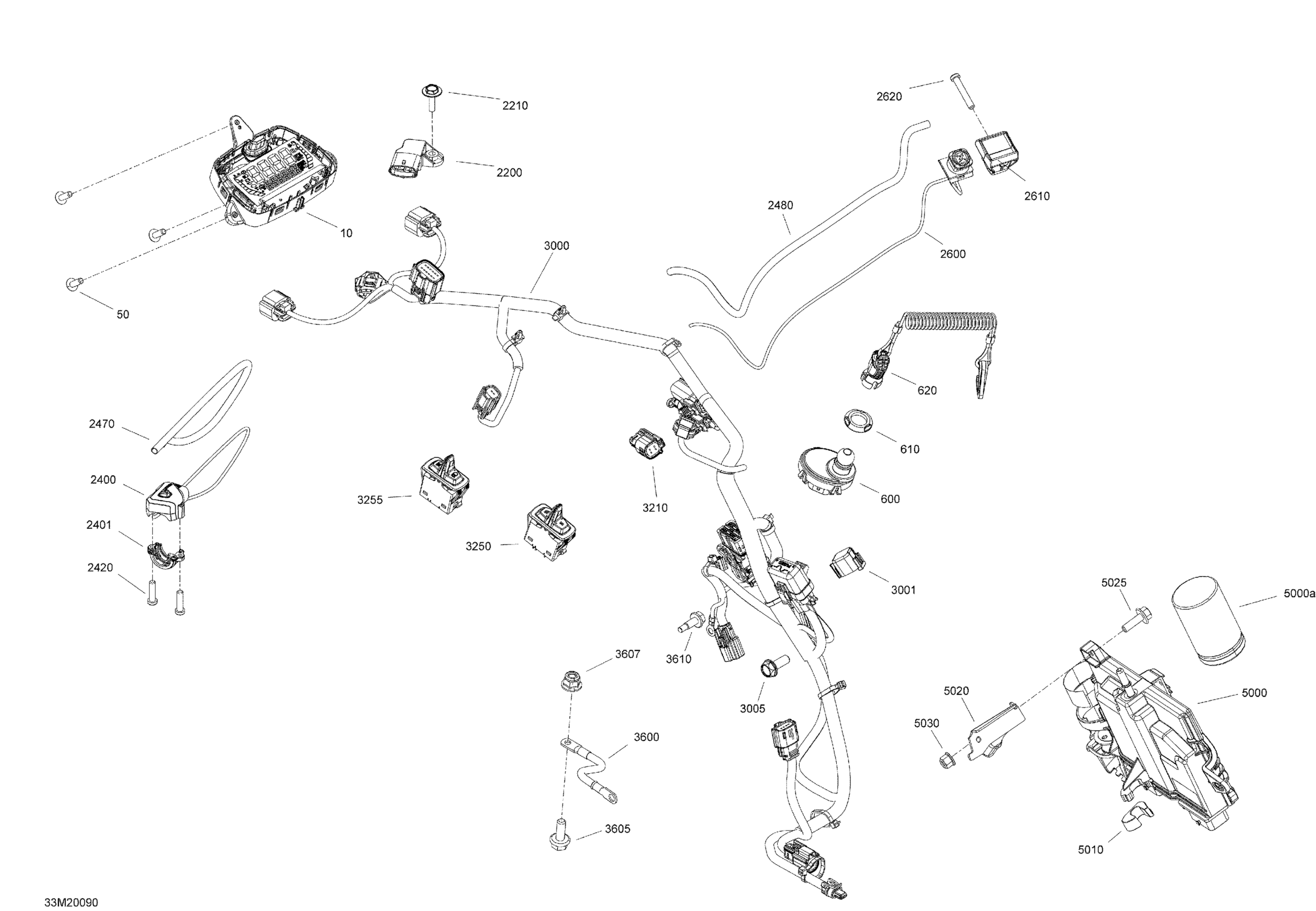

Ski-Doo SUMMIT 850 E-TEC - SP - Europe, 2020 Electric - System Diagram

#

Description
Price

10

Multifunction Gauge Compact Mono

515178810

Unavailable

50

Torx Truss Screw K40 X 12

250000577

Unavailable

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

2200

Pressure And Temperature Sensor

707000995

Unavailable

2210

Screw M4 X 16

250000725

Unavailable

2400

Ignition Switch

515178857

Unavailable

2401

Clamp

515177952

$8.57

2420

Torx Screw

250000671

Unavailable

2470

Braided Sleeve

415130141

Unavailable

2480

Braided Sleeve

415130141

Unavailable

2600

Emergency Stop Switch

515177931

$74.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

Chassis Wiring Harness

515178550

$292.28

3001

Diagnostic Cap

515178435

Unavailable

3005

Hex. Flange Screw M6 X 16

250001062

Unavailable

3210

4 Circuits Female Housing

515178177

$11.89

3250

Switch Rocker Hand Warmer

515178462

$19.20

3255

Switch Rocker Headlignt

515178463

$19.20

3600

Ground Wire

515178248

Unavailable

3605

Hex. Flange Screw M6 X 16

207661644

Unavailable

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

3610

Hex. Flange Screw M5 X 16

250000911

Unavailable

5000

Igniton Module

512061093

$599.97

5000a

Capacitor

515177272

Unavailable

5010

Rubber Stopper

515178430

Unavailable

5020

Module Support

515178159

$4.28

5025

Hex. Flange Screw M5 X 16

207651646

Unavailable

5030

Flange Elastic Nut M5

233251434

$1.66
