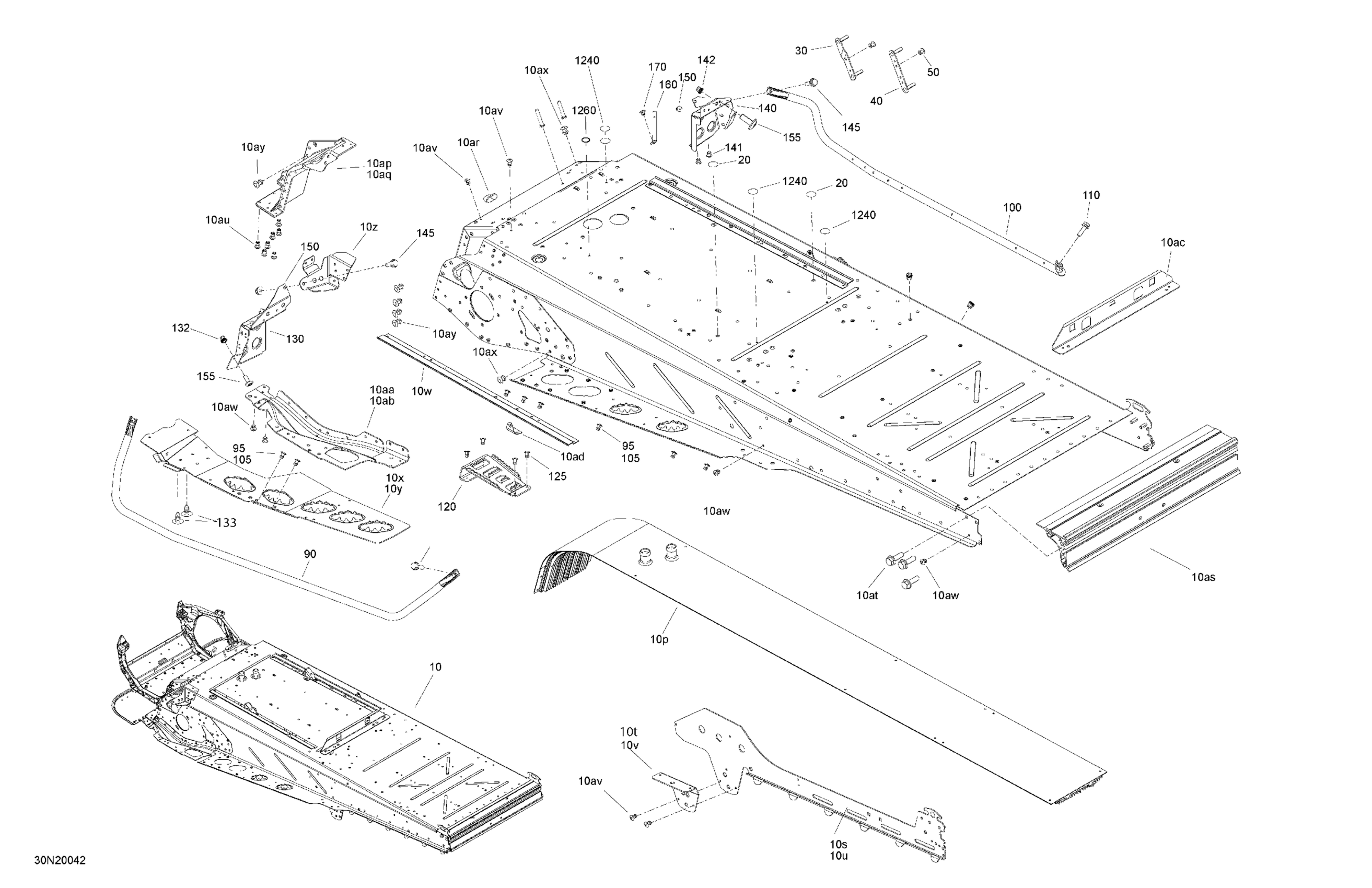

Ski-Doo SKANDIC WT 600HO E-TEC - 2020 Frame - System - Rear Section Diagram

#

Description
Price

10

Black, Frame | Includes 10 to 10ay

518329694

Unavailable

10p

Tunnel Radiator | Includes 10p to 10q

509000976

$673.82

10q

Socket Screw | Not Shown

205061244

Unavailable

10s

LH Rear Side Support

518329683

Unavailable

10t

Rear Arm Bracket

518329083

$14.88

10u

RH Rear Side Support

518329684

Unavailable

10v

Rear Arm Bracket

518329083

$14.88

10w

Fastening rail

518326107

$15.35

10x

LH Footrest

518328821

$83.82

10y

RH Footrest

518328822

$83.82

10z

Fastening Bracket

605355235

Unavailable

10aa

LH Drive Axle Cover

518328016

$192.28

10ab

RH Drive Axle Cover

518328017

$192.28

10ac

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

10ad

Seat Box Bracket

518329164

Unavailable

10ap

LH Frame Corner

518325524

$52.28

10aq

RH Frame Corner

518328024

$52.28

10ar

Adhesive Patch

518325560

Unavailable

10as

Rear Profile

518328748

$217.66

10at

Hex Flange Screw M8 X 25 S.Grip

250001016

Unavailable

10au

Rivet Hucklok

293150163

$2.82

10av

Avex Rivet

390909100

$0.29

10aw

Avex Rivet

390909200

Unavailable

10ax

Hemlock Rivet, 6.5 mm

293150119

$4.00

10ay

Rivet

293150183

$2.06

20

Adhesive Patch

518325560

Unavailable

30

Gearbox Front Plate

518326123

Unavailable

40

Gearbox Rear Plate

518326124

Unavailable

50

Pop Rivet 3/16"

390402200

$0.26

90

LH Footboard Support Tube

518326963

$126.89

94

Rivet Hucklok

293150163

$2.82

95

Avex Rivet

390909100

$0.29

100

RH Footboard Support Tube

518326964

$126.89

104

Rivet Hucklok

293150163

$2.82

105

Avex Rivet

390909100

$0.29

110

Hex. Flange Screw M6 x 20

207662056

$0.98

120

Black Rear Footrest

520001208

Unavailable

125

Rivet 3/16"

293150102

$0.71

130

Black, LH Toe Hook

518328819

Unavailable

132

Clinch Nut M6 Hexsert

605636003

$4.12

133

Black, Dart

414644300

$0.78

140

Black, RH Toe Hook

518328820

Unavailable

141

Avex Rivet

390909200

Unavailable

142

Clinch Nut M6 Hexsert

605636003

$4.12

145

Hex. Flange Screw M6 x 20

207662056

$0.98

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

155

Torx Head Screw M6 X 16

250000717

Unavailable

160

Spring Bracket

514054846

$4.34

170

Avex Rivet

390909200

Unavailable

1240

Adhesive Patch

518325560

Unavailable

1260

Adhesive Patch

518325560

Unavailable
