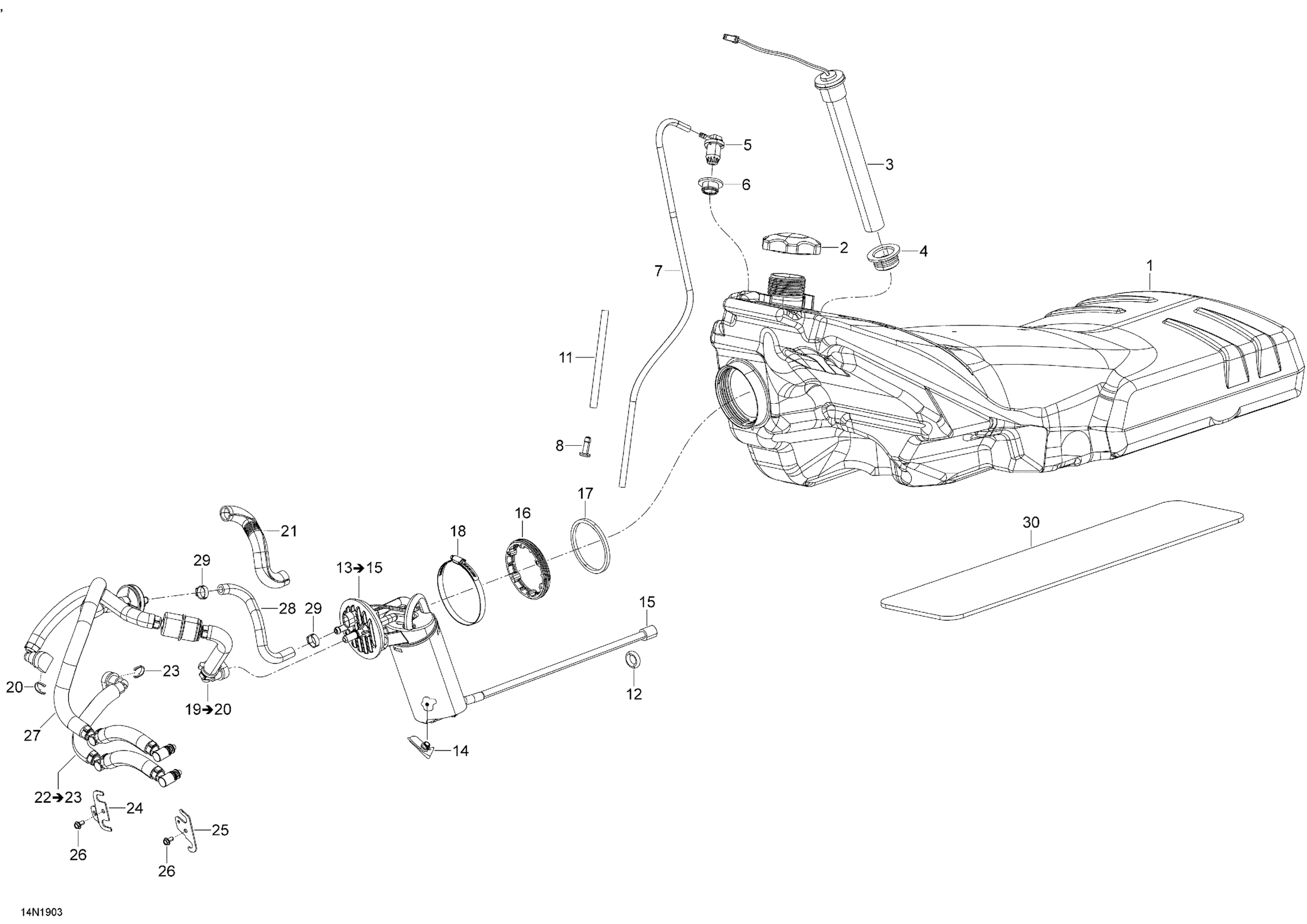

Ski-Doo Skandic WT 600HO E-TEC, 2019 Fuel Diagram

#

Description
Price

1

Fuel Tank

513033757

$535.04

2

Fuel Tank Cap 91 Octane

513033722

$22.36

2

Fuel Tank Cap 95 Octane | Europe

513033723

$24.60

3

Fuel Sensor

513033902

$75.34

4

Grommet

293720113

$10.67

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

40

Clip

414227300

$1.40

11

Protector Tube

504153074

$12.21

12

O Ring

293300184

$3.19

13

Fuel Pump Ass'y | Includes 13 to 15

513033643

$249.97

14

Fuel Filter

415129451

$23.10

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

16

Ring

513033180

$17.13

17

Gasket

513033334

$22.36

18

Clamp

513033628

$20.12

19

Hose Ass'y

513033589

$175.34

21

Tubing 16 Mm 1000Mm Long

219704408

$7.15

22

Hose Ass'y | Includes 22 to 23

513033594

$79.07

23

Locking Clip

513033135

$4.96

24

Bracket

513033542

$12.24

25

Bracket

513033593

$15.64

26

Hex. Flange Screw M5 X 10

207551044

$3.88

27

Hose Ass`Y

513033631

$302.96

28

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

29

Crimp Clamp, 15.3-706R

293650047

$3.03

30

Insulate Foam

513033788

$8.48
