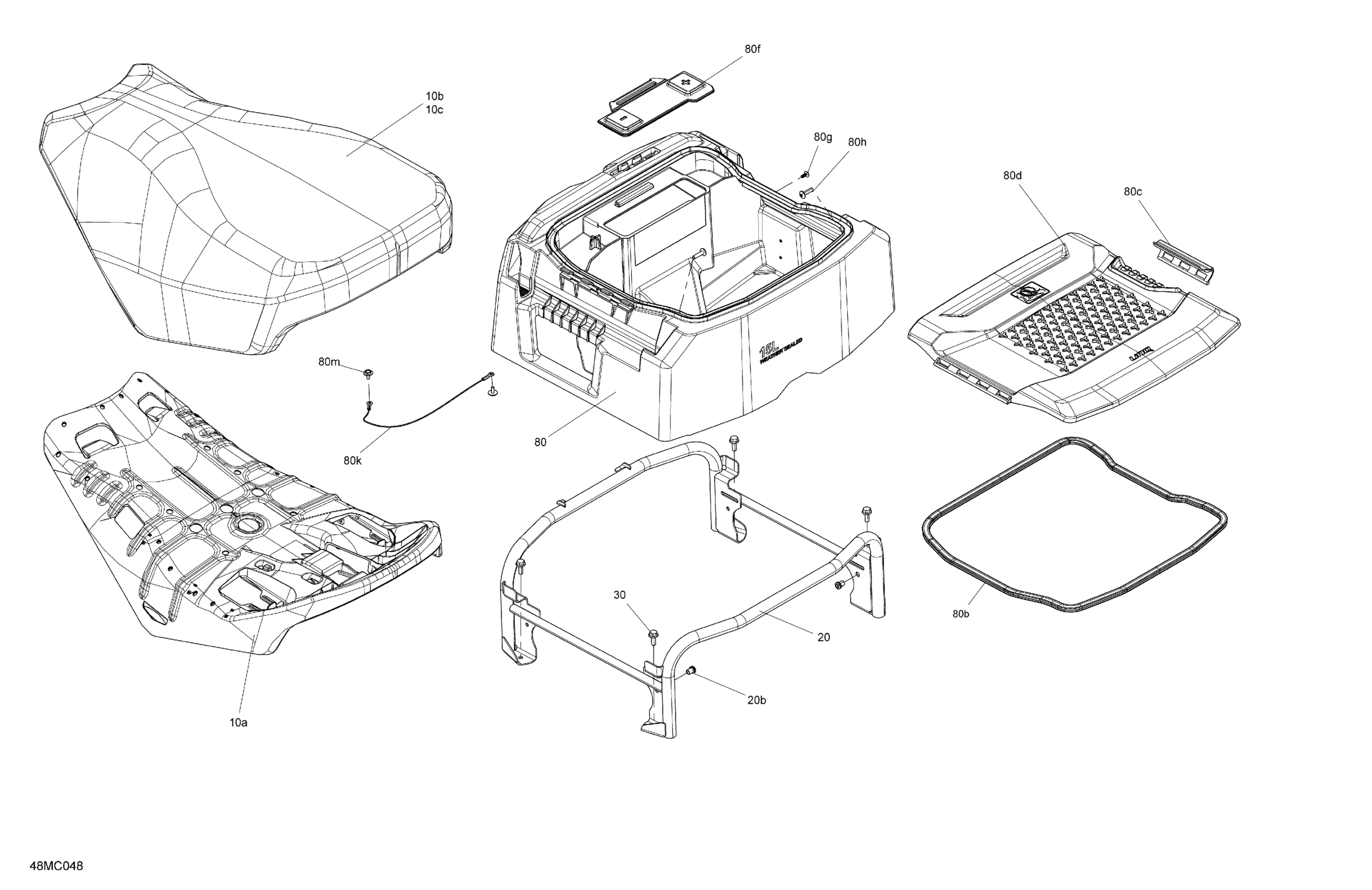

Ski-Doo SKANDIC SPORT 600 EFI - (AJPC-AJPD) - 2023 Body - Seat Diagram

Description

Price

10a

Driver Seat Base

510007355

$68.43

10b

Driver Seat Foam

510007168

$313.82

10c

Driver Seat Cover

510007628

$179.97

Seat Support Ass'y | Includes 20 to 20b

510007010

$88.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Storage Box Ass'y | Includes 80 to 80k

510007166

$307.66

80b

Seal, 1PC = 3M

293830188

$37.66

80c

Latch

269502449

$4.11

80d

Box Cover

511001274

$37.66

80f

Access Cover

510006789

$7.82

80g

Torx-Truss Screw K40 X 10

250001034

$0.81

80h

Torx Screw M5 X 20

250000724

$1.39

80k

Retaining Cable

293750092

$9.95

80m

Plastite Screw M4 X 10

250000805

$1.74
