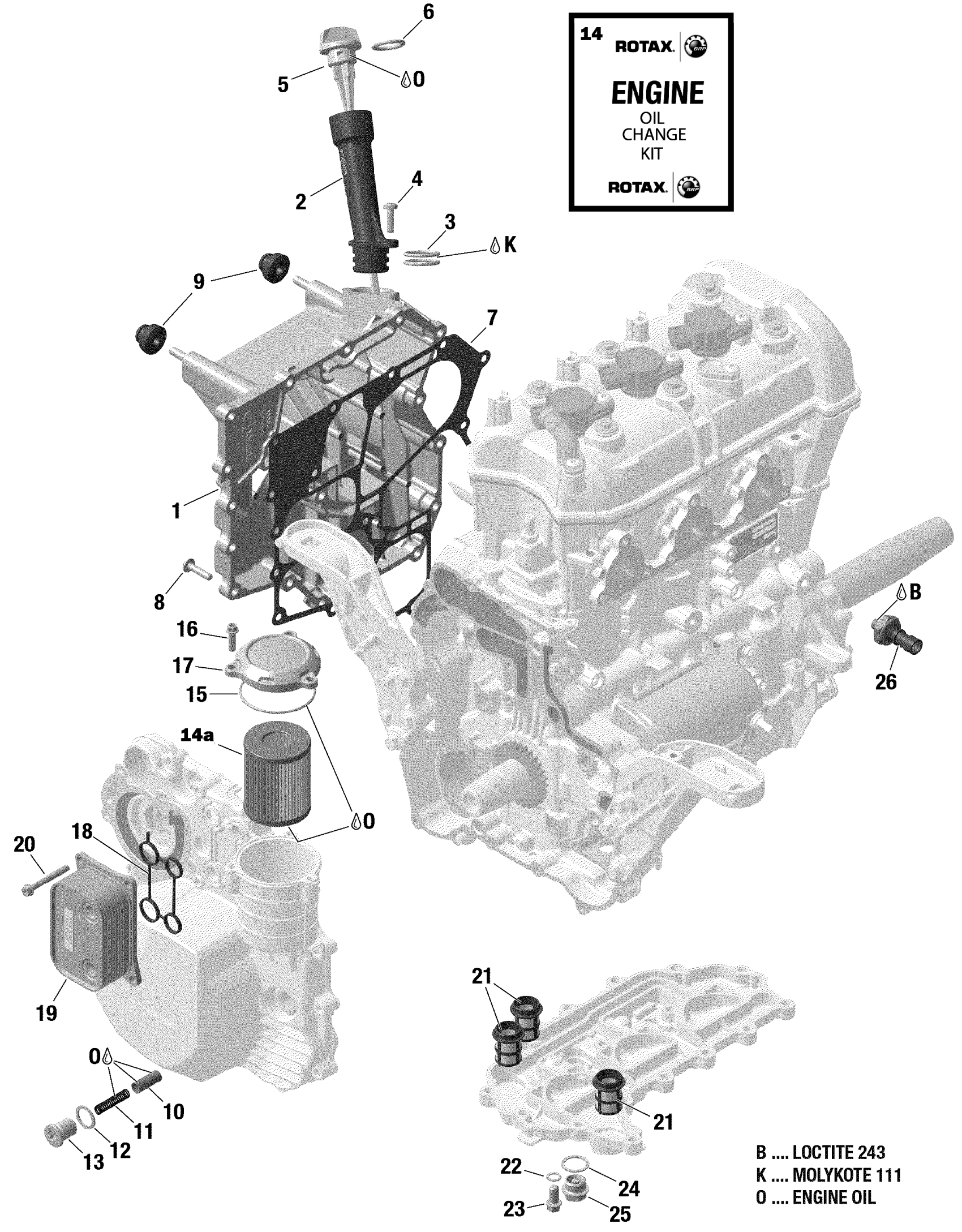

Can-Am RYKER STD 900 ACE, 2020 Engine - Lubrication - System - 900 ACE Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$104.45

2

Oil Filler Tube

420656905

$6.66

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441383

$5.04

5

Oil Level Tube

420856664

$17.68

6

O-Ring

420631640

$2.00

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

8

Torx Flange Screw M6 X 25

420841548

$5.04

9

Rubber Grommet

420860150

$5.06

10

Pressure Regulating Piston

420256591

$12.15

11

Spring

420239445

$12.15

12

Gasket Ring

420430624

$1.73

13

Plug Screw

420441373

$12.64

14

Ryker Oil Change Kit 5W40 900CC

9779299

$84.99

14a

Oil Filter

420956123

$12.79

15

O-Ring

420230923

$2.97

16

Torx Flange Screw M6 X 20

420440207

$2.91

17

Oil Filter cover

420612135

$10.78

18

Gasket

420431871

$10.13

19

Oil Water Heat Exchanger

420656698

$110.42

20

Torx Flange Screw M6 X 45

420440324

$0.93

21

Oil Sieve

420656680

$10.01

22

Sealing Ring

420950141

$1.88

23

Torx Flange Screw M8 X 16

420440852

$3.88

24

Crush Washer

420552280

$3.43

25

Drain Plug M18 X 1.5

420840278

$22.36

26

Oil Pressure Switch

420856536

$55.94
