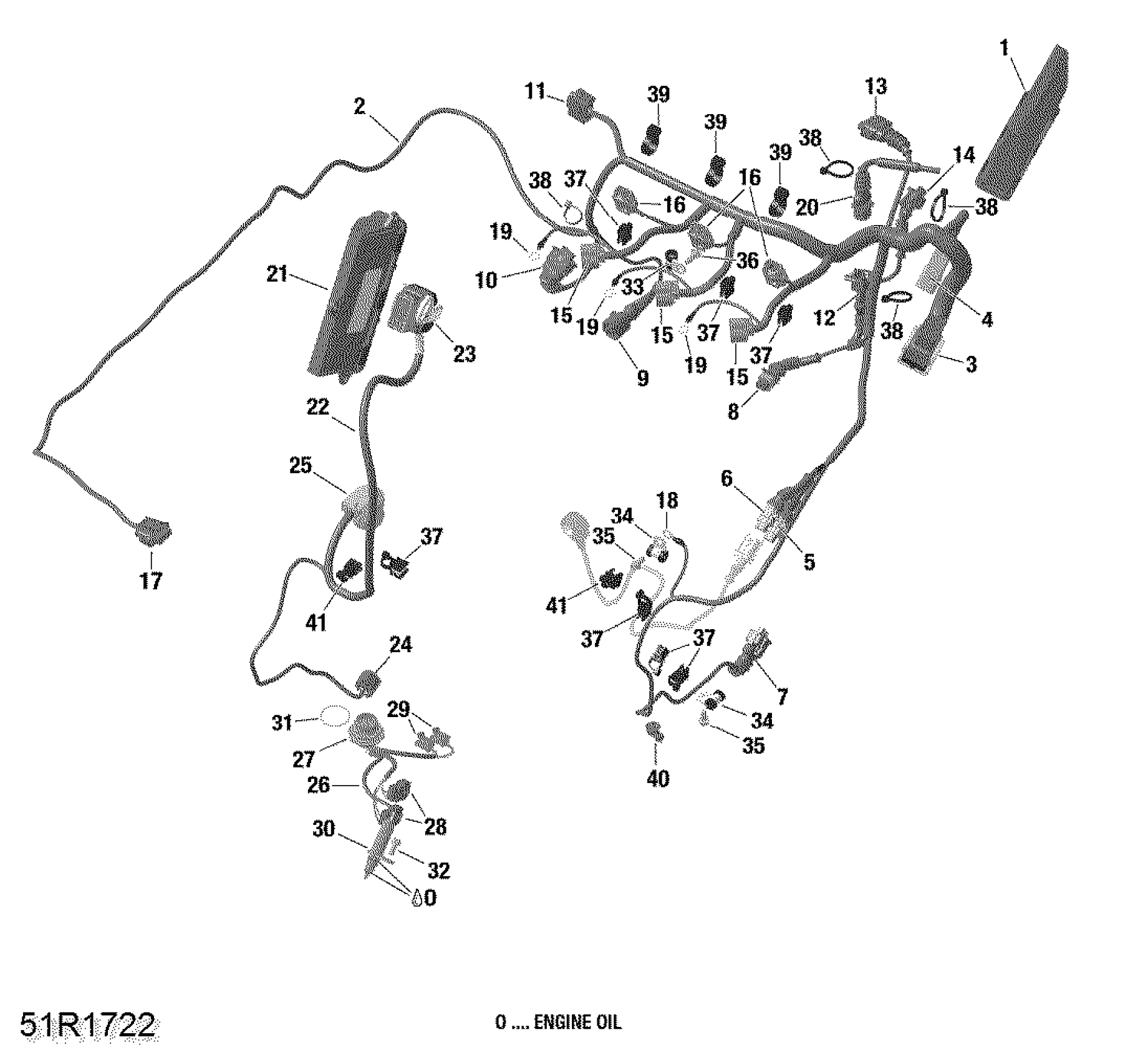

Can-Am RT STD SE6, 2019 Engine Harness and Electronic Module - SE6 Diagram

#

Description
Price

1

Electronic Module Programmable

420666064

$691.57

2>18

Wiring Harness | Includes 2 to 4

420266783

$440.00

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Male Terminal Housing, 6 Circuits

710001539

$15.57

5

Male Housing, 2 Circuits

278001005

$15.57

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Housing Connector, 3 Circuits

278001830

$34.58

8

Male Housing, 2 Circuits

278001005

$15.57

9

Housing

710001184

$10.00

10

Housing Connector, 3 Circuits

278001830

$34.58

11

Housing

710003731

$7.37

12

Female Terminal Housing, 2 Circuits

415128500

$6.31

13

Male Connector

515176410

$51.97

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Connector 3 Positions

710002516

$10.52

16

Female Housing

515176129

$28.43

17

Male Connector

515176410

$51.97

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Connector

420650055

$12.00

20

Not Available As Spare Parts

XXX

Unavailable

21

Transmission Module

420666840

$700.00

22>25

Transmission Wiring Harness

420266880

$260.00

23

Housing

710001184

$10.00

24

Male Terminal Housing, 6 Circuits

710001539

$15.57

25

Not Available As Spare Parts

XXX

Unavailable

26>30

Wiring Harness

420264104

$500.00

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

O-Ring

420450481

$5.00

31

Hex. Flange Screw M6 X 12

420440147

$1.97

32

Open Clamp

414176000

$1.86

33

Clamp

420853414

$14.92

34

Hex. Flange Screw M6 X 12

420440147

$1.97

35

Torx Flange Screw M6 X 16

420641588

$1.74

36

Cable Clamp 150mm

420951650

$3.55

37

Tie Rap

420866714

$1.56

38

Tie Rap

420951345

$2.31

39

Cable Clamp

420851493

$17.66

40

Tie-Rap

420866716

$1.56

41

Tie-Rap With Mount

420951341

$6.26
