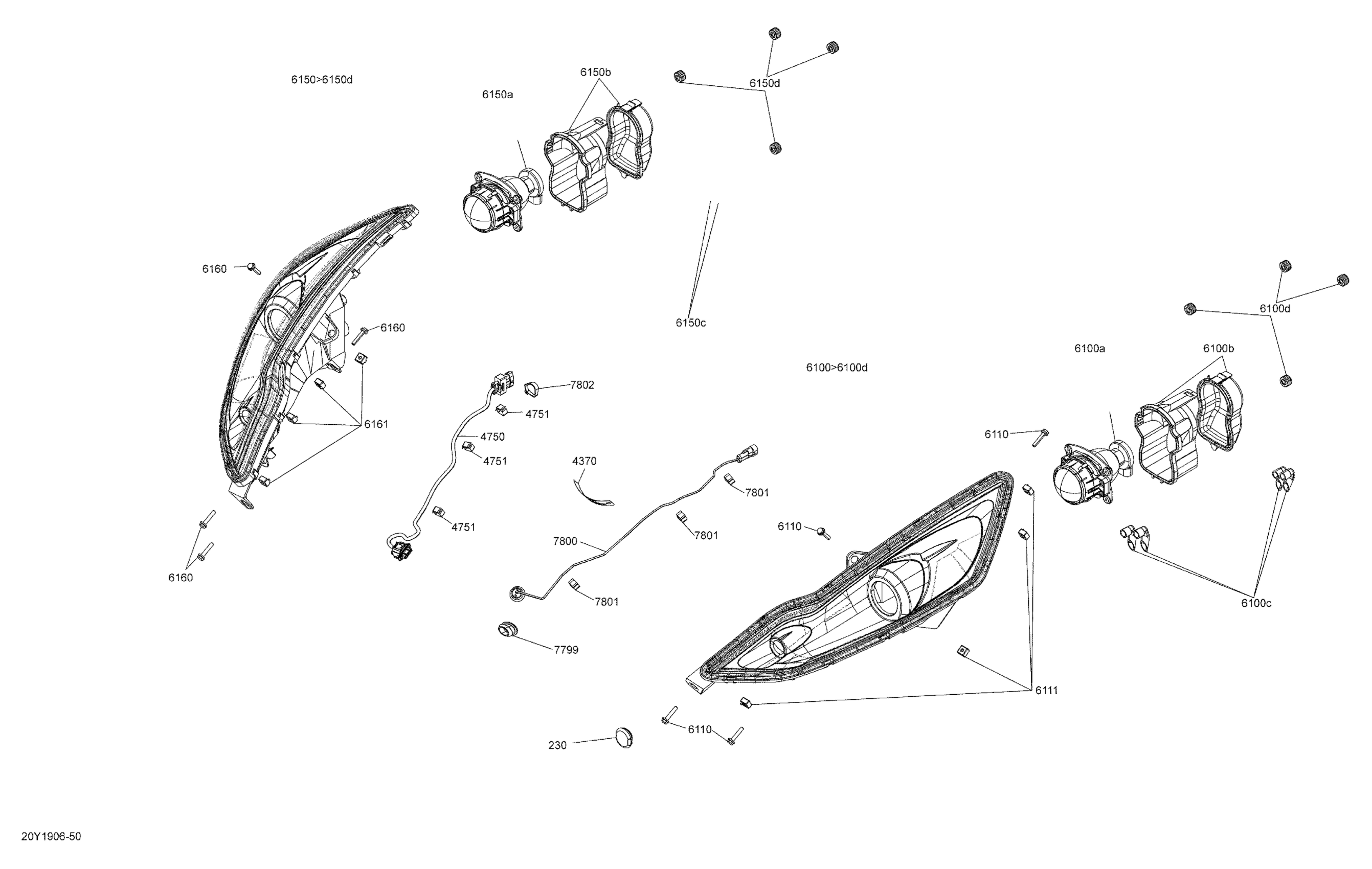

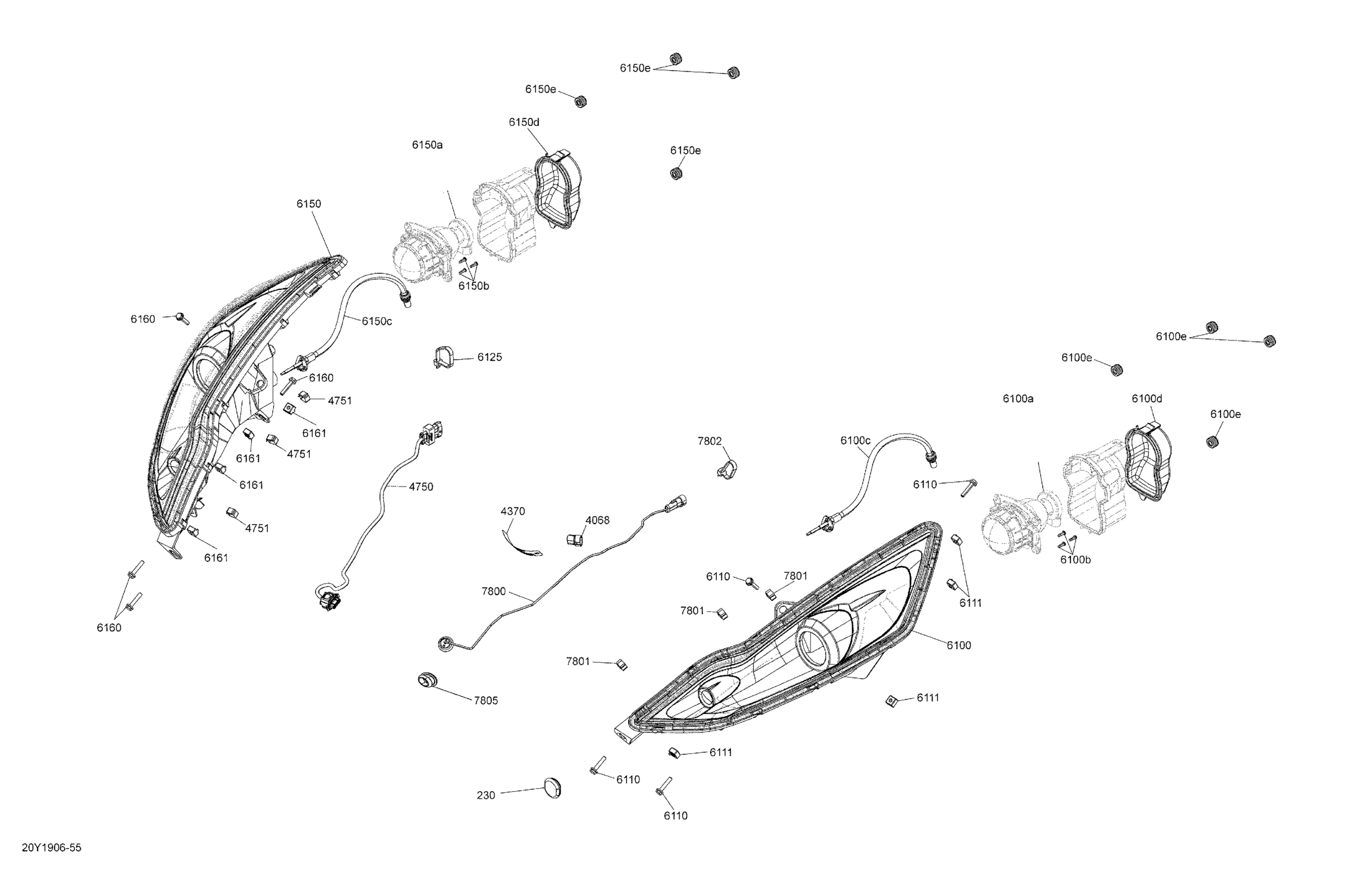

Can-Am RT STD SE6, 2019 Electrical System Diagram

#

Description
Price

230

Rubber Plug

710002858

$2.75

4068

Connector Plug

710004906

$13.00

4370

RH/LH Fuse Box Decal

710003077

$1.00

4750

AAPTS Harness

710004764

$17.00

4751

Clip

414227300

$1.45

6100>6100e

LH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003259

$490.00

6100>6100e

LH Low Beam Ass., Dark | Option 10th Anniversary, Except North America

710005703

$500.00

6100a

Halogen Bulb HB3 65W

219800136

$24.00

6100b

Chromed Screw 4X13

219800110

$13.00

6100c

Adjustement Cable

219800105

$84.00

6100d

Cover With Seal

219800174

$19.00

6100e

Rubber Vent

219800101

$21.00

6110

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6111

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

6125

Tie Wrap 142 mm

293750002

$0.88

6150>6150e

RH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003258

$490.00

6150>6150e

Dark, RH Low Beam Ass'y | Option 10th Anniversary, Except North America

710005702

$500.00

6150a

Halogen Bulb HB3 65W

219800136

$24.00

6150b

Chromed Screw 4X13

219800110

$13.00

6150c

Adjustement Cable

219800105

$84.00

6150d

Cover With Seal

219800174

$19.00

6150e

Rubber Vent

219800101

$21.00

6160

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6161

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

7805

Cap

705003464

$10.42

7800

Trunk Light

710001533

$68.00

7801

Clip

414227300

$1.45

7802

Tie Wrap 142 mm

293750002

$0.88
