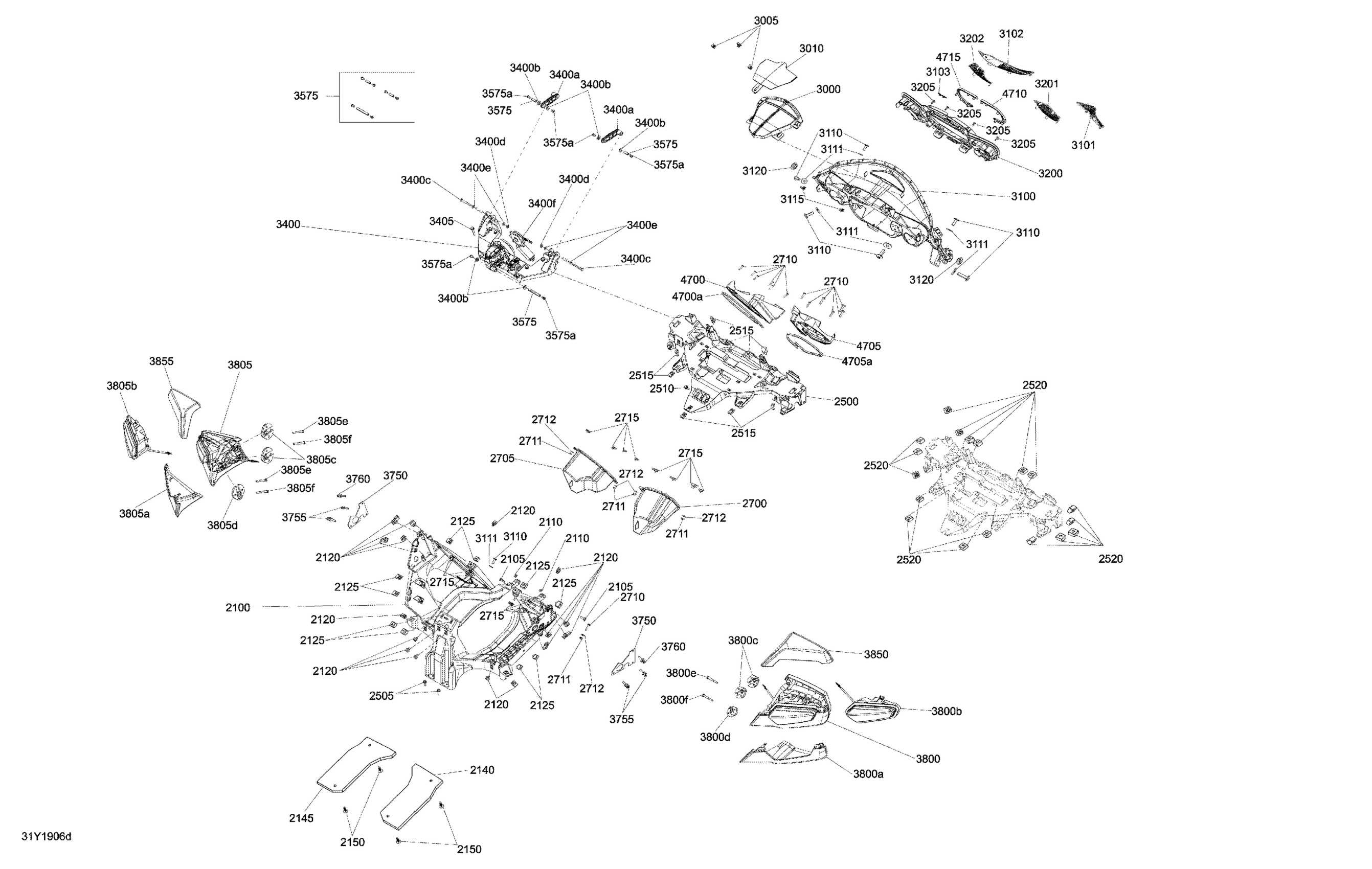

Can-Am RT STD SE6, 2019 System Console - Front Console, Mirrors & Supports Diagram

#

Description
Price

2100

Console Support

705002743

$100.00

2105

Torx Screw M6 X 20

250000712

$1.74

2110

Square Nut M6

232862412

$1.18

2120

Panel Nut M6 X 1.0

250100198

$1.73

2125

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

2140

LH Acoustic Foam

707800349

$18.00

2145

RH Acoustic Foam

707800341

$18.00

2150

Black, Dart

293730006

$0.81

2500

Console Cross-support

705012150

$83.00

2505

Hex. Flange Screw M6 X 16

210261650

$1.22

2510

Hex. Flange Screw M6 X 20

207662044

$1.66

2515

Panel Nut M6 X 1.0

250100198

$1.73

2520

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

2700

LH Speaker Housing Ass'y

705011996

$21.00

2705

RH Speaker Housing Ass'y

705011997

$19.00

2710

Torx Screw M5 X 25

250000762

$1.74

2711

Hex. Flange Nut M5

250100071

$1.77

2712

Washer M5

250200025

$0.61

2715

Panel Nut M5 X 0.8

250000958

$3.48

3000

Guide Chart Support

705002746

$28.00

3005

Edge Clip

517302785

$0.70

3010

Guide Chart

705009360

$28.00

3100

Dashboard

705006656

$115.00

3101

LH Lower Speaker Grille

705011416

$14.00

3102

RH Lower Speaker Grille

705011417

$15.00

3110

Torx Screw M6 X 20

250000722

$1.34

3111

Flat washer M6

250200164

$0.83

3115

Panel Nut M5 X 0.8

250000958

$3.48

3120

Oval Washer

705000321

$4.64

3200

Dashboard Bezel

705011418

$50.00

3201

LH Upper Speaker Grille

705011603

$5.00

3202

RH Upper Speaker Grille

705011605

$5.00

3205

Torx Screw M5 X 14

250000742

$1.20

3400>3400f

Motor Support Ass'y

705011453

$760.00

3400a

Rear Arm Ass'y

219800432

$84.00

3400b

Sleeve

705003267

$9.00

3400c

Hex. Screw M6 X 50

207065060

$1.85

3400d

Elastic Stop Nut M6, Brass

232561200

$3.51

3400e

Stainless Flat Washer M6

234061600

$0.25

3400f

Windshield Motor

278002579

$184.57

3405

Hex. Flange Screw M6 X 35

207663544

$0.74

3560

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3575>3575a

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

3575a

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3750

Console Support Plate

705003779

$28.00

3755

Spherical Head Stud

705004322

$17.00

3760

Spherical Head Stud

705004323

$17.00

3800>3800b

LH Mirror Assembly | Includes 1 to 9

708400146

$307.00

3800a

LH Lower Mirror Shell

705003148

$145.00

3800b

LH Front Flasher Unit

710001510

$164.00

3800c

Housing with Spring | Includes 3 to 5

219800156

$22.00

3800d

Housing with Spring

219800158

$11.00

3800e

Screw

219800118

$6.00

3800f

Screw 2.9 X 12.5

219800157

$7.00

3805>3805b

RH Mirror Assembly | Includes 10 to 18

708400147

$307.00

3805a

RH Lower Mirror Shell

705003159

$145.00

3805b

RH Front Flasher Unit

710001511

$164.00

3805c

Housing with Spring | Includes 3 to 5

219800156

$22.00

3805d

Housing with Spring

219800158

$11.00

3805e

Screw

219800118

$6.00

3805f

Screw 2.9 X 12.5

219800157

$7.00

3850

LH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007405

$145.00

3855

RH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007406

$140.00

4700>4700a

RH Speaker Support Ass'y | Includes 4700 to 4700a

708400242

$14.00

4700a

Seal 1000Mm Long

219704373

$8.29

4705>4705a

LH Speaker Support Ass'y | Includes 4705 to 4705a

708400243

$13.00

4705a

Seal 1000Mm Long

219704373

$8.29

4710

Deep Black, LH Trim Gauge

705012349

$4.34

4715

Deep Black, RH Trim Gauge

705012351

$4.34
