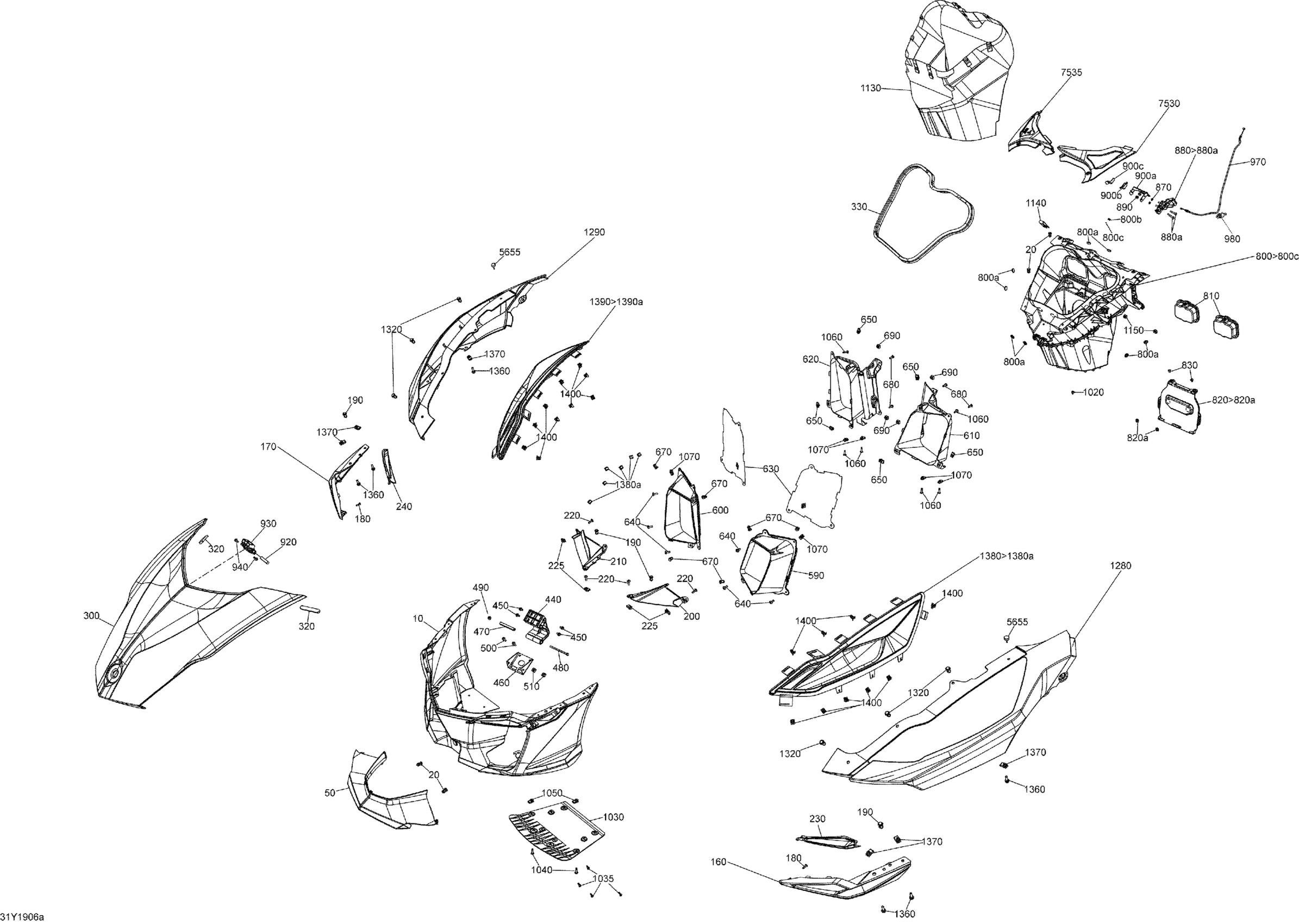

Can-Am RT STD SE6, 2019 Storage Compartments Front Diagram

Vegas White Pearl, Bumper Cover | Model-White

705007555

$424.00

Asphalt Gray, Bumper Cover | Grey Model

708200705

$424.00

Oxford Blue Metallic, Bumper Cover | Model Oxford Blue

708200762

$498.00

Bumper Cover, Phoenix Orange B-424 | Package LTD Phoenix Orange B-424

708200846

$424.00

Tuflok Plastic Rivet

293150230

$1.21

Black Bumper Moulding

705007104

$135.00

Deep Black, LH Front Wing | Model-RT STD

705004577

$135.00

Front Wing LH, Chrome | Model-RT LTD

705007344

$130.00

Deep Black, RH Front Wing | Model-RT STD

705004578

$135.00

Front Wing RH, Chrome | Model-RT LTD

705007345

$130.00

Torx-Truss Pt K40 X 16

250000759

$1.74

Tuflok Plastic Rivet

293150230

$1.21

LH Front Deflector

705007067

$20.00

RH Front Deflector

705007068

$20.00

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Front Wing Moulding LH

705007305

$46.00

Front Wing Moulding RH

705007306

$46.00

Vegas White Pearl, Hood | Model-White

705006149

$630.00

Asphalt Gray, Hood | Grey Model

708200583

$540.00

Bare, Hood | Model-Intense Red Pearl

705006201

$245.00

Hood, Phoenix Orange B-424 | Package LTD Phoenix Orange B-424

708200847

$540.00

Néoprene Pad

705006824

$7.00

Neoprene Seal 3000Mm Long

219704371

$45.47

Hood Arm

705003248

$55.00

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hood Pivot

705005434

$17.00

Spacer

705003322

$28.00

Hex. Screw M6 X 110

230061034

$1.74

Flange Elastic Nut M6

233261434

$3.61

Torx Screw M6 X 20

250000712

$1.74

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

Lower Air Duct LH

705004579

$89.00

Lower Air Duct RH

705004580

$89.00

Rear Air Duct LH

705005859

$89.00

Rear Air Duct, RH

705005860

$89.00

Radiator Grille

705008132

$53.00

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Tuflok Plastic Rivet

293150230

$1.21

Torx Screw M6 X 20

250000712

$1.74

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

Storage Box Ass'y | Includes 100 to 100j

705012290

$490.00

Dual Lock Velcro Washer 3/4"

293740028

$4.00

Rivet

390401400

$0.51

Flat Washer 3 mm, Stainless Steel

234031600

$0.54

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.00

Battery Cover Ass'y | Includes 130 to 130c

705018040

$30.00

Dual Lock Velcro Washer 3/4"

293740028

$4.00

Torx Truss Screw M6 X 12

250000767

$1.66

External Serrated Lock Washer 6 mm

234461608

$0.92

Latch Ass'Y

705009310

$105.00

Screw-torx Button Head M6 X 40

235564054

$6.46

Hex. Flange Elastic Nut M6

233261494

$1.26

Actuator Bracket | Model-RT LTD

705003691

$27.00

Position Sensor | Model-RT LTD

710001861

$22.00

Switch Protector Plate | Model-RT LTD

705005845

$9.00

Bushing

705004513

$10.00

Hood Guide

705004468

$12.00

Torx Screw K50 X 16

250000720

$1.39

Hood Cable

517305460

$45.00

Tie-Rap Clip

710002896

$4.60

Rubber Bumper

293830005

$5.33

Skid Plate

705002837

$69.00

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Torx Screw M6 X 25 | XT Models

250000728

$3.61

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 25 | XT Models

250000728

$3.61

Panel Nut M6 X 1.0

250100198

$1.73

Liner_Box

708303923

$95.00

Holding Strap

705004357

$28.00

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

Vegas White Pearl, LH Front Panel | Model-White

708200636

$310.00

Asphalt Gray, LH Front Panel | Grey Model

708200706

$260.00

Oxford Blue Metallic, LH Front Panel | Model Oxford Blue

708200766

$260.00

Front Panel LH, Phoenix Orange B-424

708200848

$260.00

Vegas White Pearl, RH Front Panel | Model-White

708200637

$310.00

Asphalt Gray, RH Front Panel | Grey Model

708200707

$260.00

Oxford Blue Metallic, RH Front Panel | Model Oxford Blue

708200768

$260.00

Front Panel RH, Phoenix Orange B-424

708200849

$260.00

Tuflok Plastic Rivet

293150230

$1.21

Hex. Flange Screw M6 X 20

207662044

$1.66

Panel Nut M6 X 1.0

250100198

$1.73

Air Duct Ass'y, LH | Model-RT STD North America

705003703

$90.00

Clip

414479100

$1.86

Air Duct Ass'y RH | Model-RT STD North America

705003706

$90.00

Clip

414479100

$1.86

Edge Clip

517302785

$0.70

Edge Clip

517302785

$0.70

Edge Clip

517302785

$0.70

Edge Clip

517302785

$0.70

Rubber Stopper

708000759

$3.61

Service Center Access Panel LH

705002839

$34.00

Service Center Access Panel RH

705005903

$34.00
