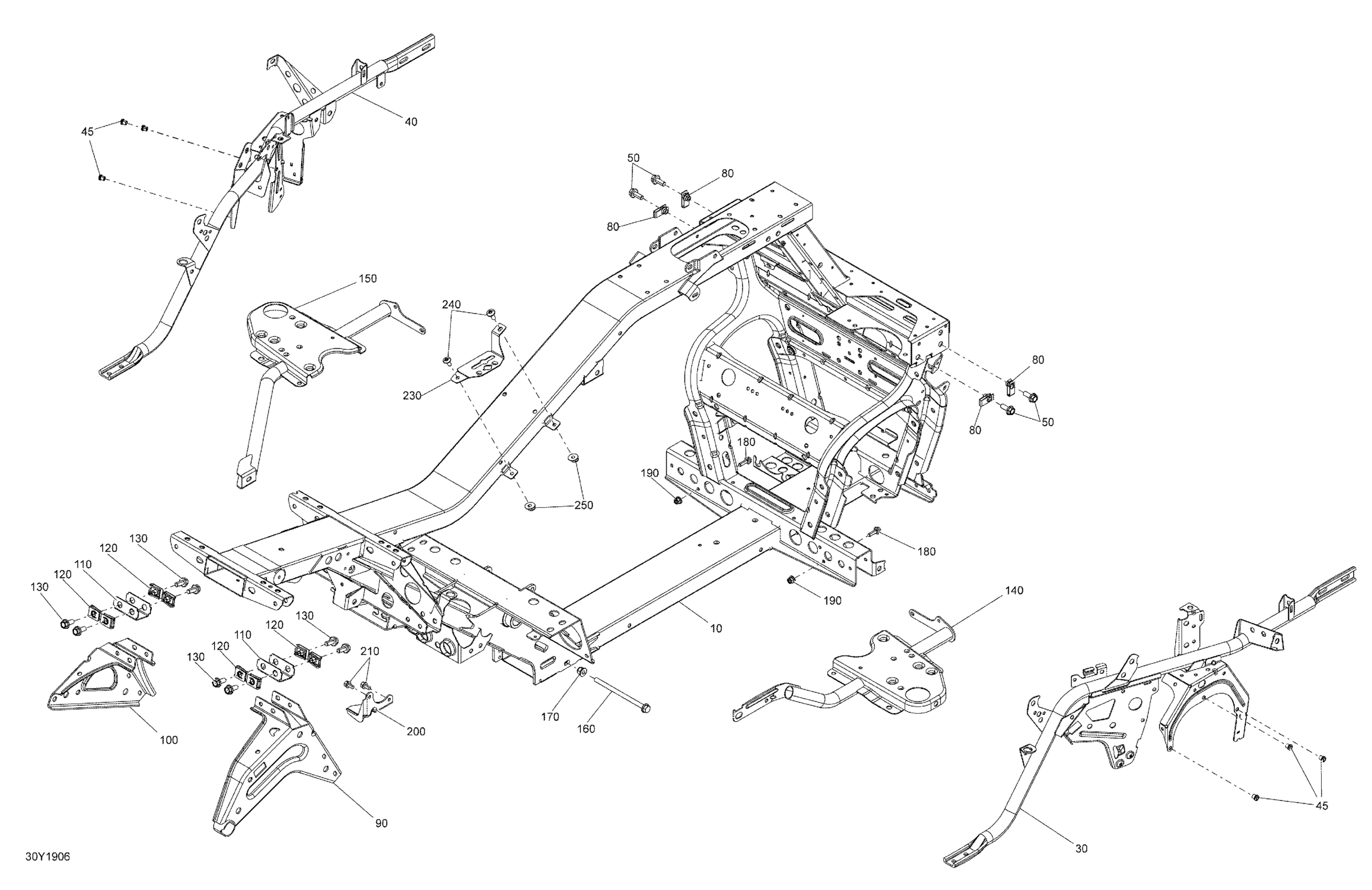

Can-Am RT STD SE6, 2019 Frame Diagram

#

Description
Price

10

Frame

705204866

$1,390.00

30

RH Painted Lateral Support Ass'y

705203016

$210.00

40

LH Painted Lateral Support Ass'y

705203017

$210.00

45

Insert M5 X 0.8

293450268

$1.95

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

80

Panel Nut M8 X 1.25

250100118

$1.63

90

Rear Support RH

705203959

$100.00

100

Rear Support LH

705203969

$50.00

110

U-Bracket

705202484

$19.00

120

Panel Nut M8 X 1.25

250100069

$4.00

130

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

140

RH Painted Lower Lateral Support

705202625

$105.00

150

LH Painted Lower Lateral Support

705202626

$86.00

160

Hex. Flange Screw M8 X 130

230683034

$6.15

170

Hex. Flange Elastic Nut M8

233281414

$1.14

180

Hex. Flange Screw M6 X 20

207662044

$1.66

190

Hex. Flange Elastic Nut M6

233261466

$1.66

200

Stopper Swing Arm

705202587

$29.00

210

Hex. Flange Screw M6 X 12

210261250

$1.56

230

Latch Support

705205078

$15.00

240

Torx Head Screw M6 X 16

250000717

$1.74

250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
