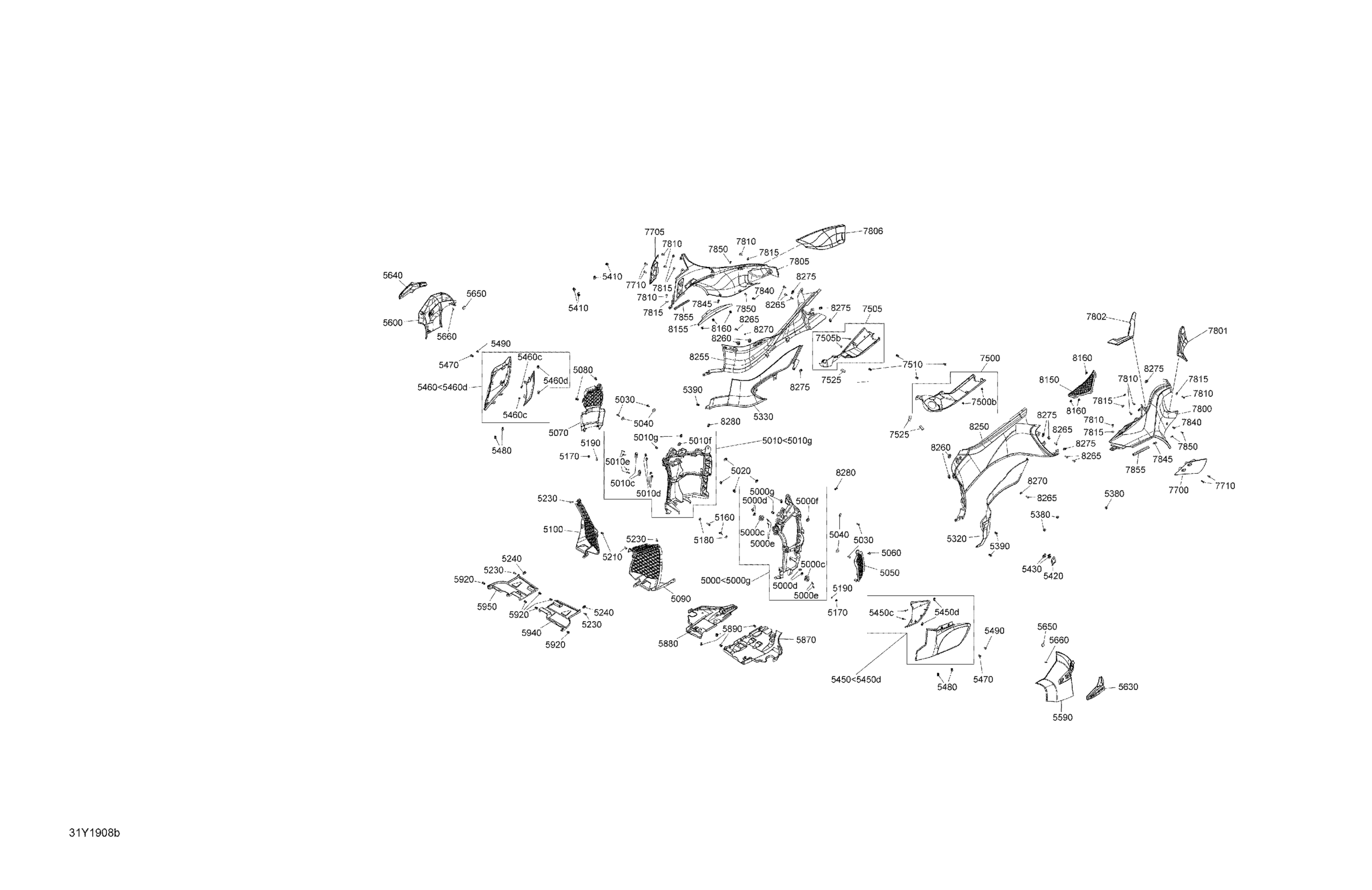

Can-Am RT STD SE6, 2019 Body And Accessories Side Panels Diagram

#

Description
Price

5000<5000g

LH Support

705009063

$120.00

5000c

Grommet Ass'y

705005055

$13.00

5000d

Panel Nut M5 X 0.8

250000958

$3.48

5000e

Hex. Screw M5 X 20

207152060

$1.22

5000f

Grommet

705003264

$3.43

5000g

Panel Nut M6 X 1.0

250100198

$1.73

5010<5010g

RH Support

705009064

$125.00

5010c

Grommet Ass'y

705005055

$13.00

5010d

Panel Nut M5 X 0.8

250000958

$3.48

5010e

Hex. Screw M5 X 20

207152060

$1.22

5010f

Grommet

705003264

$3.43

5010g

Panel Nut M6 X 1.0

250100198

$1.73

5020

Panel Nut M6 X 1.0

250100198

$1.73

5030

Torx Screw M6 X 20

250000722

$1.34

5040

Washer M6

250200029

$1.83

5050

LH Side Grille

705007307

$31.00

5060

Rubber Stopper

708000759

$3.61

5070

RH Side Grille

705004803

$31.00

5080

Tuflok Plastic Rivet

293150230

$1.21

5090

LH Radiatior Moulding

705004789

$105.00

5100

RH Radiatior Moulding

705004790

$105.00

5160

Hex. Flange Screw M6 X 25

207662544

$0.53

5170

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5180

Flat Washer 6 mm

234062410

$0.64

5190

Pressure Nut

250100163

$1.72

5210

Hex. Flange Screw M6 X 16

210261650

$1.22

5230

Torx Screw M6 X 20

250000722

$1.34

5240

Panel Nut M6 X 1.0

250100198

$1.73

5320

LH Lower Pannel

705006820

$79.00

5330

RH Lower Pannel

705007736

$84.00

5380

Hex. Flange Elastic Nut M8

233281434

$1.74

5390

Tuflok Plastic Rivet

293150230

$1.21

5410

Panel Nut M8

250100111

$3.38

5420

Panel Support

705007375

$40.00

5430

Panel Nut M8 X 1.25

250100069

$4.00

5450<5450d

LH Water Deflector Ass'y

705003759

$46.00

5450c

Hex.Flange Screw M5 X 20

207652044

$1.56

5450d

Panel Nut M5 X 0.8

250000958

$3.48

5460<5460d

RH Water Deflector Ass'y

705003760

$46.00

5460c

Hex.Flange Screw M5 X 20

207652044

$1.56

5460d

Panel Nut M5 X 0.8

250000958

$3.48

5470

Tuflok Plastic Rivet

293150230

$1.21

5470

Tuflok Plastic Rivet

293150230

$1.21

5480

Tuflok Plastic Rivet

293150230

$1.21

5480

Tuflok Plastic Rivet

293150230

$1.21

5490

Torx Truss Screw M6 X 12

250000767

$1.66

5490

Torx Truss Screw M6 X 12

250000767

$1.66

5590

Vegas White Pearl, LH Side Panel | Model-White

705008999

$250.00

5600

Bare, RH Side Panel | Model-White

705008992

$115.00

5630

Deep Black, LH Lat Pan Cap

705013557

$79.00

5640

Deep Black, RH Lat Pan Cap

705013556

$79.00

5650

Rubber Pad

293830143

$18.00

5650

Rubber Pad

293830143

$18.00

5660

Torx-Truss Pt K40 X 16

250000759

$1.74

5660

Torx-Truss Pt K40 X 16

250000759

$1.74

5870

LH Deflector Pannel

705004610

$28.00

5880

RH Deflector Pannel

705004611

$21.00

5890

Tuflok Plastic Rivet

293150230

$1.21

5890

Tuflok Plastic Rivet

293150230

$1.21

5920

Tuflok Plastic Rivet

293150230

$1.21

5920

Tuflok Plastic Rivet

293150230

$1.21

5920

Tuflok Plastic Rivet

293150230

$1.21

5940

LH Skid Plate

705005438

$28.00

5950

RH Skid Plate

705005439

$28.00

7500<7500b

LH Tank Cover Ass'y

705004631

$110.00

7500b

Tie Rap Mount

293750044

$2.00

7505<7505b

RH Tank Cover Ass'y

705004632

$115.00

7505b

Tie Rap Mount

293750044

$2.00

7510

Tuflok Plastic Rivet

293150230

$1.21

7525

Neoprene Seal (1PAC=3M)

219704364

$22.72

7700

LH Lower Air Deflector

705004924

$44.00

7705

RH Lower Air Deflector

705004925

$44.00

7710

Torx Screw M6 X 20

250000712

$1.74

7800

White LH Upper Panel | Model-White

705006168

$300.00

7801

Upper Panel Foam

518329812

$21.00

7802

LH Upper Panel Foam

518329821

$21.00

7805

Bare, RH Up Side Pan | Model-White

705006212

$125.00

7806

RH Upper Panel Foam

518329820

$21.00

7810

Torx Screw M6 X 20

250000722

$1.34

7815

Stainless Steel Flat Washer

234062670

$1.74

7840

Knob

705003842

$6.00

7845

Angled Knob

705003746

$6.00

7850

Torx Screw, K50X16

250000459

$3.38

7855

Seal Tray 1000Mm Long

219704368

$12.91

8150

LH Upper Side Panel Grille

705003385

$31.00

8155

RH Upper Side Panel Grille

705003386

$31.00

8160

Edge Clip

517302785

$0.70

8250

White LH Lateral Panel | Model-White

705006178

$360.00

8255

White RH Upper Lateral Panel | Model-White

705006177

$360.00

8260

Oval Washer

705000321

$4.64

8265

Torx Screw M6 X 20

250000722

$1.34

8270

Stainless Steel Flat Washer

234062670

$1.74

8275

Panel Nut M6 X 1.0

250100198

$1.73

8280

Tuflok Plastic Rivet

293150230

$1.21
