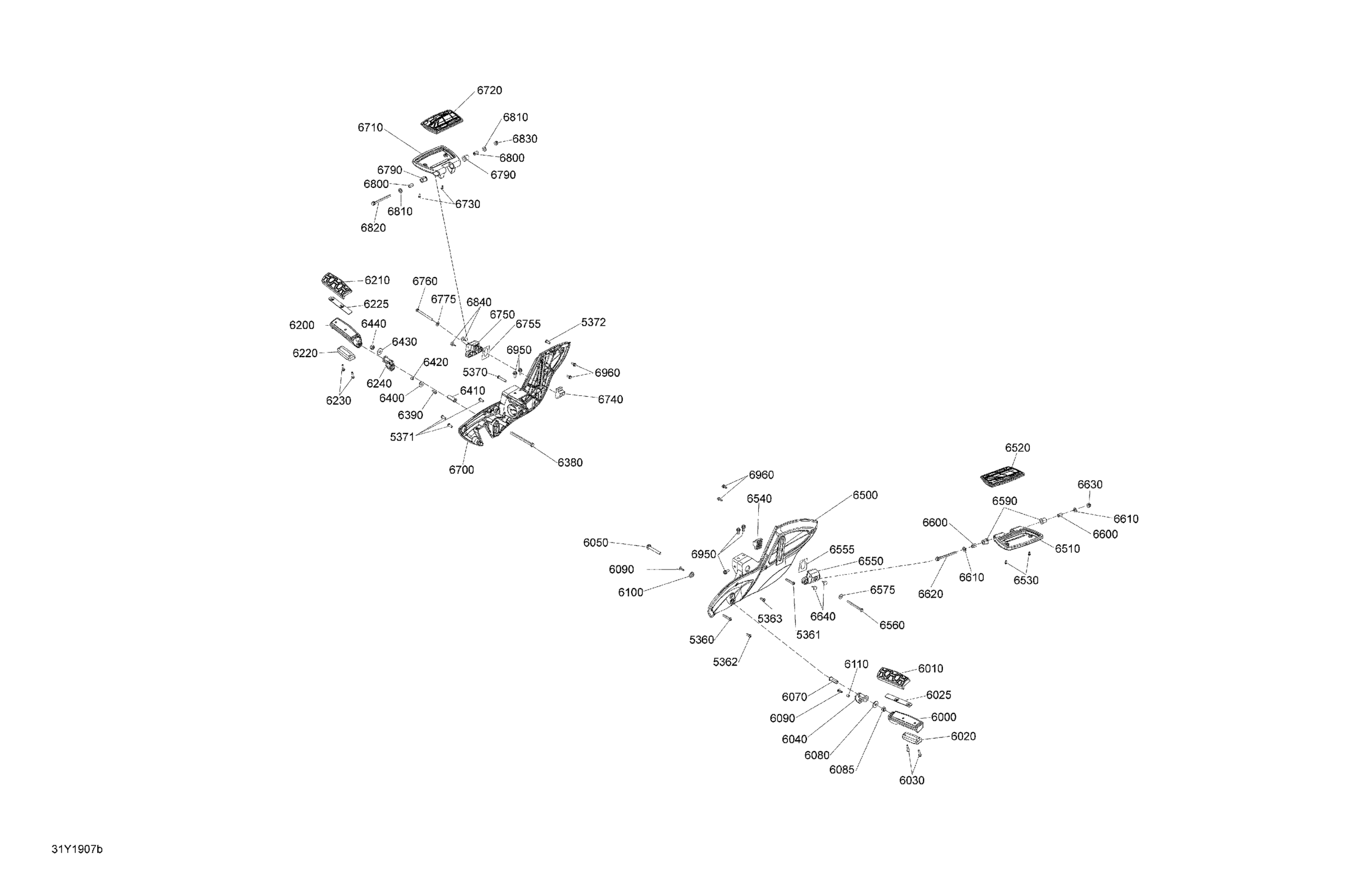

Can-Am RT STD SE6, 2019 Body And Accessories Footrest Diagram

#

Description
Price

5360

Socket Screw M8 X 45

205484560

$2.00

5361

Socket Screw M8 X 45

205484560

$2.00

5362

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5363

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5370

Socket Screw M8 X 45

205484560

$2.00

5371

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5371

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5372

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

6000

Carbon Black, LH FRT Footpeg

705011129

$62.00

6010

LH Front Footpeg Pad | Model-RT STD

705003732

$40.00

6020

Vibration Dampener | Model-RT STD

705003730

$49.00

6025

Front Pad Plate | Model-RT STD

705003731

$18.00

6030

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

6040

LH Rubber Bushing | Model-RT STD

705003616

$8.00

6050

Hex. Screw M10 X 70, Scotch Grip

207507046

$6.08

6070

Inner Bushing | Model-RT STD

706201151

$21.00

6080

Flat Washer 10 mm, Stainless

234002600

$1.85

6085

Elastic Stop Nut M10

232500416

$1.56

6090

Torx Screw M6 X 20

250000722

$1.34

6100

Grommet

705003932

$2.75

6110

Bushing

709000162

$13.83

6200

Carbon Black, RH FRT Footpeg

705011130

$62.00

6210

RH Front Footpeg Pad | Model-RT STD

705003245

$40.00

6220

Vibration Dampener | Model-RT STD

705003730

$49.00

6225

Front Pad Plate | Model-RT STD

705003731

$18.00

6230

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

6240

RH Rubber Bushing | Model-RT STD

705003615

$7.00

6380

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

6390

Torx Screw M6 X 20

250000722

$1.34

6400

Grommet

705003932

$2.75

6410

Inner Bushing | Model-RT STD

706201151

$21.00

6420

Bushing

709000162

$13.83

6430

Flat Washer 10 mm, Stainless

234002600

$1.85

6440

Elastic Stop Nut M10

232500416

$1.56

6500

Black LH Footrest Support | Package S SM6

705011149

$410.00

6510

Carbon Black, Rear Footrests | Model-RT S

705011155

$135.00

6520

LH Rubber Rear Pad

705007461

$50.00

6530

Allen Plastite Screw #12

250000099

$2.31

6540

Adjuster Block

705003013

$44.00

6550

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

6555

Film, Protective

705014173

$7.00

6560

Hex. Screw M8 x 90

207189060

$3.68

6575

Spring Washer M8

234281704

$2.00

6590

Rubber Bushing

705003018

$10.00

6600

Bushing

705002153

$11.06

6610

Washer

503183800

$3.20

6620

Hex. Flange Screw M8 X 110

230681034

$4.28

6630

Hex. Flange Elastic Nut M8

233281434

$1.74

6640

Rubber Stopper

708000759

$3.61

6700

Black RH Footrest Support | Package S SM6

705011152

$410.00

6710

Carbon Black, Rear Footrests | Model-RT S

705011155

$135.00

6720

RH Rubber Rear Pad

705007472

$49.00

6730

Allen Plastite Screw #12

250000099

$2.31

6740

Adjuster Block

705003013

$44.00

6750

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

6755

Film, Protective

705014173

$7.00

6760

Hex. Screw M8 x 90

207189060

$3.68

6775

Spring Washer M8

234281704

$2.00

6790

Rubber Bushing

705003018

$10.00

6800

Bushing

705002153

$11.06

6810

Washer

503183800

$3.20

6820

Hex. Flange Screw M8 X 110

230681034

$4.28

6830

Hex. Flange Elastic Nut M8

233281434

$1.74

6840

Rubber Stopper

708000759

$3.61

6950

Hex Screw Washer Head M8 X 20

207582054

$2.61

6960

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56
