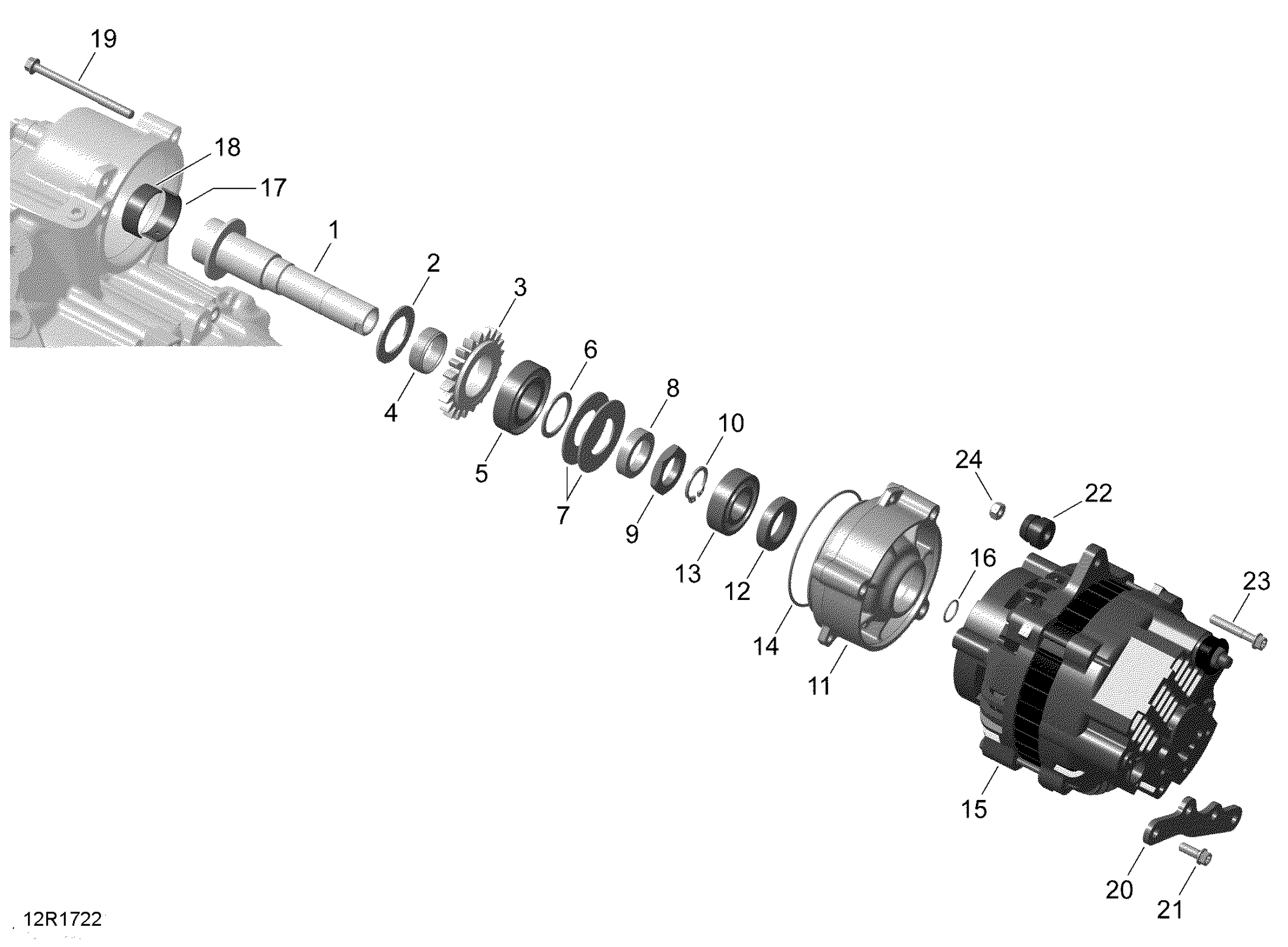

Can-Am RT STD SE6, 2019 Alternator Diagram

#

Description
Price

1

Alternator Shaft Ass'y | Includes 1 to 10

420637124

$600.00

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Retaining Ring

420945665

$5.00

11

Alternator Flange

420210610

$130.00

12

Oil Seal

420930267

$27.66

13

Ball Bearing

420932660

$26.00

14

O-Ring

420950490

$13.58

15

Alternator Ass'y | Includes 15 to 16

420685760

$680.00

16

O-Ring

420430603

$12.00

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Torx Flange Screw M6 X 75

420440657

$4.28

20

Alternator Support

420651710

$11.00

21

Torx Flange Screw M6 X 16

420440162

$3.11

22

Isolator

420201170

$16.00

23

Torx Flange Screw M6 X 35

420440274

$0.83

24

Lock Nut M6

420242371

$3.68
