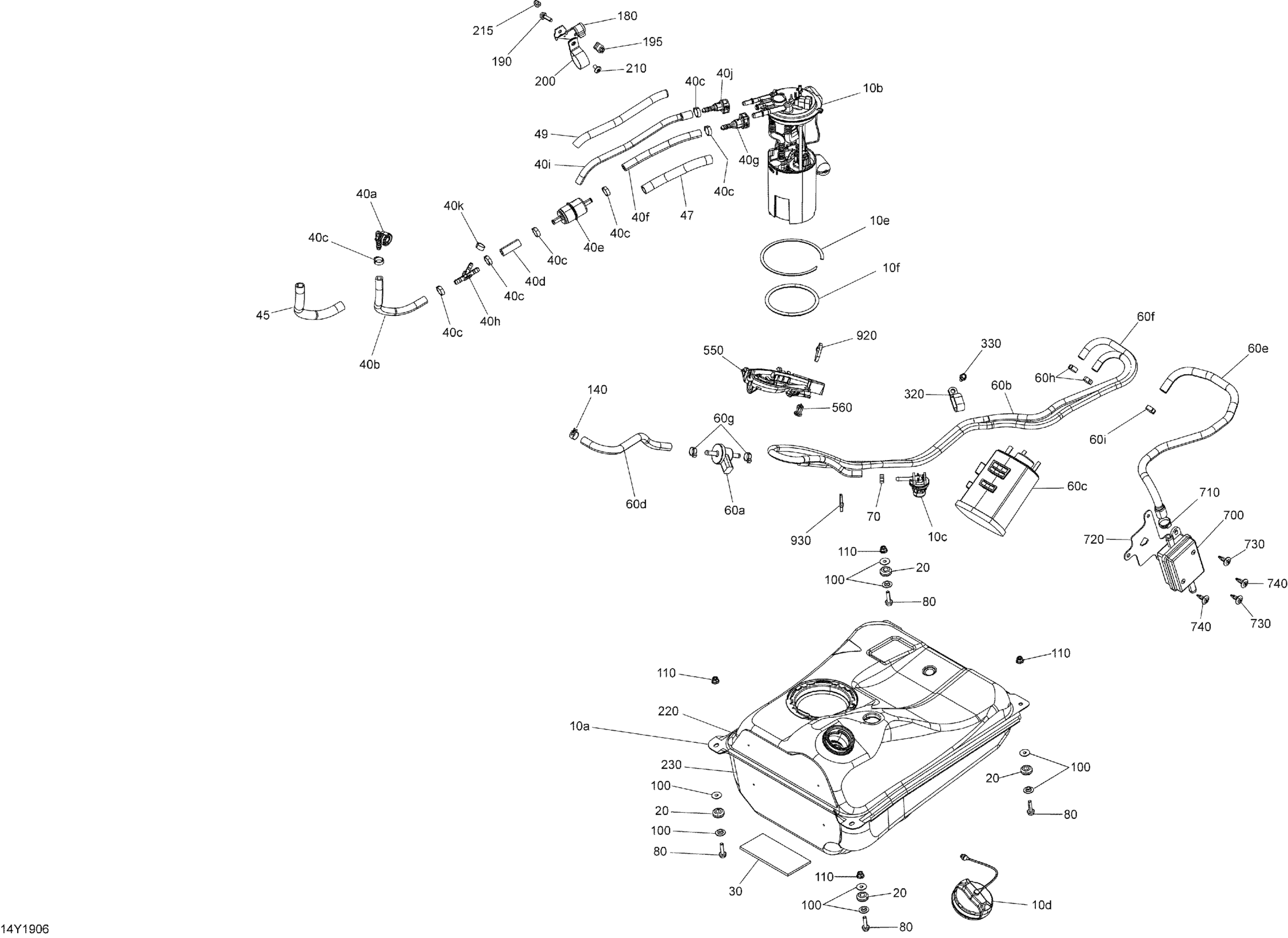

Can-Am RT STD SE6, 2019 Fuel System Diagram

#

Description
Price

10a

Fuel Tank

709001447

$600.00

10b

Fuel Pump Module

709000370

$372.00

10c

Rollover Valve

709000413

$52.28

10d

Gaz Cap

709000683

$16.00

10e

Seal Kit

219800248

$39.00

10f

Seal Kit

219800248

$39.00

20

Grommet

709000582

$4.38

30

Carpet

709000130

$14.00

40a

Elbow Fitting 90°

293710105

$10.58

40b

Fuel Line 7.9 mm, Meter

709000264

$16.00

40c

Oetiker Clamp

293650125

$2.69

40d

Fuel Line 7.9 mm, Meter

709000265

$13.00

40e

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$20.00

40f

Fuel Line 7.9 mm, Meter

709000264

$16.00

40g

Female Quick Fitting Ass'y

709000684

$15.00

40h

Kit Y Fitting This part replaces 709000453.

219800628

$49.00

40i

Hose, 275MM

709000776

$16.00

40j

Quick Connect Pipe Fitting

293710192

$12.00

40k

Oetiker Clamp

293650046

$2.33

45

Tubing 16 Mm 1000Mm Long

219704408

$6.23

47

Protector Tube, 16 mm

513033231

$11.12

49

Was 409901800 Tubing (13 mm)

219704400

$9.40

60a

Bleed Valve

709000443

$69.20

60b

Hose, 880MM

709000656

$32.00

60c

Vapor Canister

709000090

$87.66

60d

Hose, 275MM

709000657

$13.00

60e

Formed Hose

709000523

$27.00

60f

Hose, 1275MM

709000658

$30.00

60g

Crimp Clamp, 15.3-706R

293650047

$2.64

60h

Oetiker Gear Clamp

293650025

$2.46

60i

Oetiker Clamp

293650140

$2.15

70

Oetiker Gear Clamp

293650025

$2.46

80

Hex. Flange Screw M6 X 25

207662544

$0.53

100

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

140

Universal Spring Clamp

513033029

$5.11

180

Fuel Filter Support

709000452

$19.00

190

Hex. Flange Screw M6 X 20

207662044

$1.66

195

Panel Nut M6 X 1.0

250100198

$1.73

200

Open Clamp

513033047

$4.88

210

Torx Truss Screw M6 X 12

250000767

$1.66

215

Domed Nut M6

232361493

$1.77

220

Reflective Sheet

709000157

$21.00

230

Reflective Sheet

709000340

$29.00

320

Open Clamp

709000057

$5.52

330

Hex. Flange Screw M6 X 12

210261250

$1.56

550

Hose Support

709000814

$7.00

560

Tuflok Plastic Rivet

293150230

$1.21

700

Air Filter

709000524

$46.12

710

Spring Clamp

513033865

$4.00

720

Filter Support

709000526

$13.00

730

Tuflock Phillips Plastic Screw

414745900

$1.30

740

Tuflock Phillips Plastic Screw

414745900

$1.30

920

Tie-Rap 180 mm

414115200

$0.09

930

Tie-Rap 180 mm

414115200

$0.09
