Description

Price

10>10k

Carbon Black, Secondary Mufller | Includes 10 to 10p

219800492

$954.00

10>10k

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT LTD

219800440

Unavailable

10a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

10a

Chrome Heat Shield | Model-RT LTD

707601383

$122.00

10b

Panel Nut M6 X 1.0

250100198

$1.73

10c

Black, Flat Washer 6 mm

234061670

$1.00

10c

Stainless Flat Washer M6

234061600

$0.25

10d

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10d

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

10e

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

10f

Panel Nut M6 X 1.0

250100198

$1.73

10g

Black, Flat Washer 6 mm

234061670

$1.00

10h

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10i

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

10i

Chrome, Trim Mufller Rear | Includes 10m to 10m1

707602605

$175.00

10j

Black, Flat Washer 6 mm

234061670

$1.00

10j

Stainless Flat Washer M6

234061600

$0.25

10k

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

10k

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

20

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

707602866

$1,197.00

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

40

Exhaust Manifold | Includes 40 to 40j

707601922

$770.00

50

Hex. Flange Nut M8

233081416

$1.63

60

Exhaust Seal

707601985

$8.00

70

Exhaust Clamp

707600980

$23.05

80

Exhaust Clamp

707600980

$23.05

90

Exhaust Gasket

514054174

$27.66

140

Anti-Vibration Rubber

293830162

$13.00

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.20

160

Washer 10 mm

506150000

$2.63

170

Hex. Flange Nut M10

233101600

$4.39

190

Bushing | Includes 240d to 240d1

503189282

$4.18

220

Spring

415107100

$6.20

350

Anti-Vibration Rubber

707600702

$8.34

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hex. Flange Screw M6 X 12

210261250

$1.56

460

Oxygen Sensor

707600872

$115.67

470

Tie-Rap 180 mm

414115200

$0.09

500

Heat Shield interior

707603641

$54.00

510

Heat Shield Exterior

707603642

$54.00

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

530

Flat Washer M6, Stainless

234062600

$0.64

540

Panel Nut M6 X 1.0

250100198

$1.73

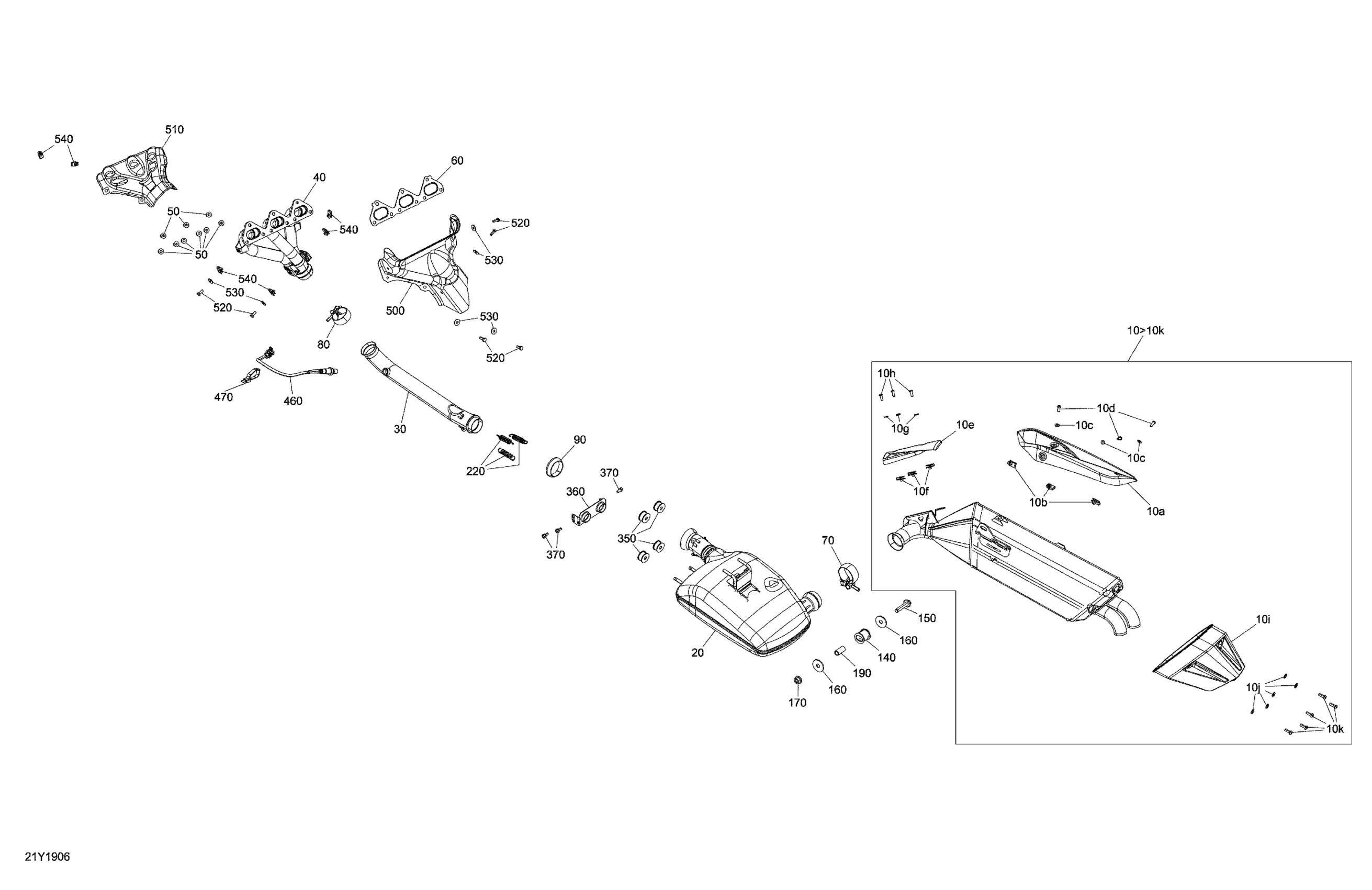

Can-Am RT STD SE6, 2019 Exhaust System Diagram

Carbon Black, Secondary Mufller | Includes 10 to 10p

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT LTD

Carbon Black, Heat Shield | Includes 10b to 10b2

Chrome Heat Shield | Model-RT LTD

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Stainless Flat Washer M6

Black, Socket Screw, M6 X 16 S.Grip

Stainless, Socket Screw, M6X16 S.Grip

Carbon Black, Heat Shield | Includes 10g to 10g2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

Chrome, Trim Mufller Rear | Includes 10m to 10m1

Black, Flat Washer 6 mm

Stainless Flat Washer M6

Black, Socket Screw, M6 X 16 S.Grip

Stainless, Socket Screw, M6X16 S.Grip

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

Exhaust Tuned Pipe | Includes 30 to 30d

Exhaust Manifold | Includes 40 to 40j

Hex. Flange Nut M8

Exhaust Seal

Exhaust Clamp

Exhaust Clamp

Exhaust Gasket

Anti-Vibration Rubber

Hex. Flange Screw M10 X 50, Scotch Grip

Washer 10 mm

Hex. Flange Nut M10

Bushing | Includes 240d to 240d1

Spring

Anti-Vibration Rubber

Front Bracket | Includes 360 to 360b1a

Hex. Flange Screw M6 X 12

Oxygen Sensor

Tie-Rap 180 mm

Heat Shield interior

Heat Shield Exterior

Hex. Screw M6 X 16, Scotch Grip

Flat Washer M6, Stainless

Panel Nut M6 X 1.0
