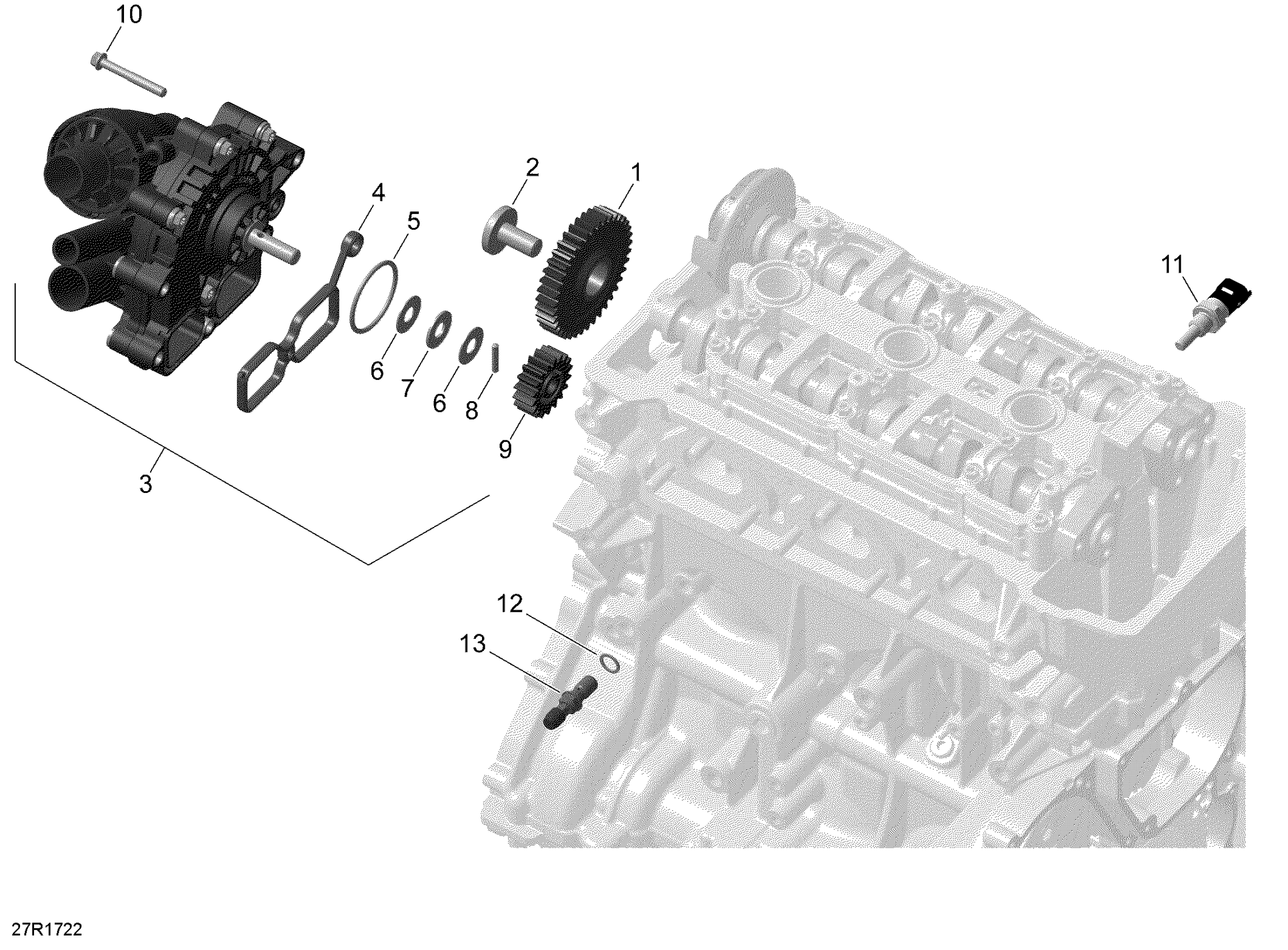

Can-Am RT STD SE6, 2019 Engine Cooling Diagram

#

Description
Price

1

Drive Gear 39 Teeth

420435370

$38.00

2

Flat Head Screw M12 X 1.5

420441365

$6.00

3

Water Pump | Includes 3 to 9

420686012

$285.00

4

Gasket

420431970

$12.00

5

O-Ring

420450220

$6.00

6

Thrust Washer

420626790

$4.60

7

Needle Bearing

420632305

$19.20

8

Needle Pin

420232425

$1.00

9

Water Pump Gear

420435300

$21.00

10

Torx Flange Screw M6 X 45

420440324

$0.81

11

Temperature Sensor

278002895

$31.82

12

Oil Seal

420230150

$2.94

13

Bleeder Screw M10 X 1

420441630

$14.85
