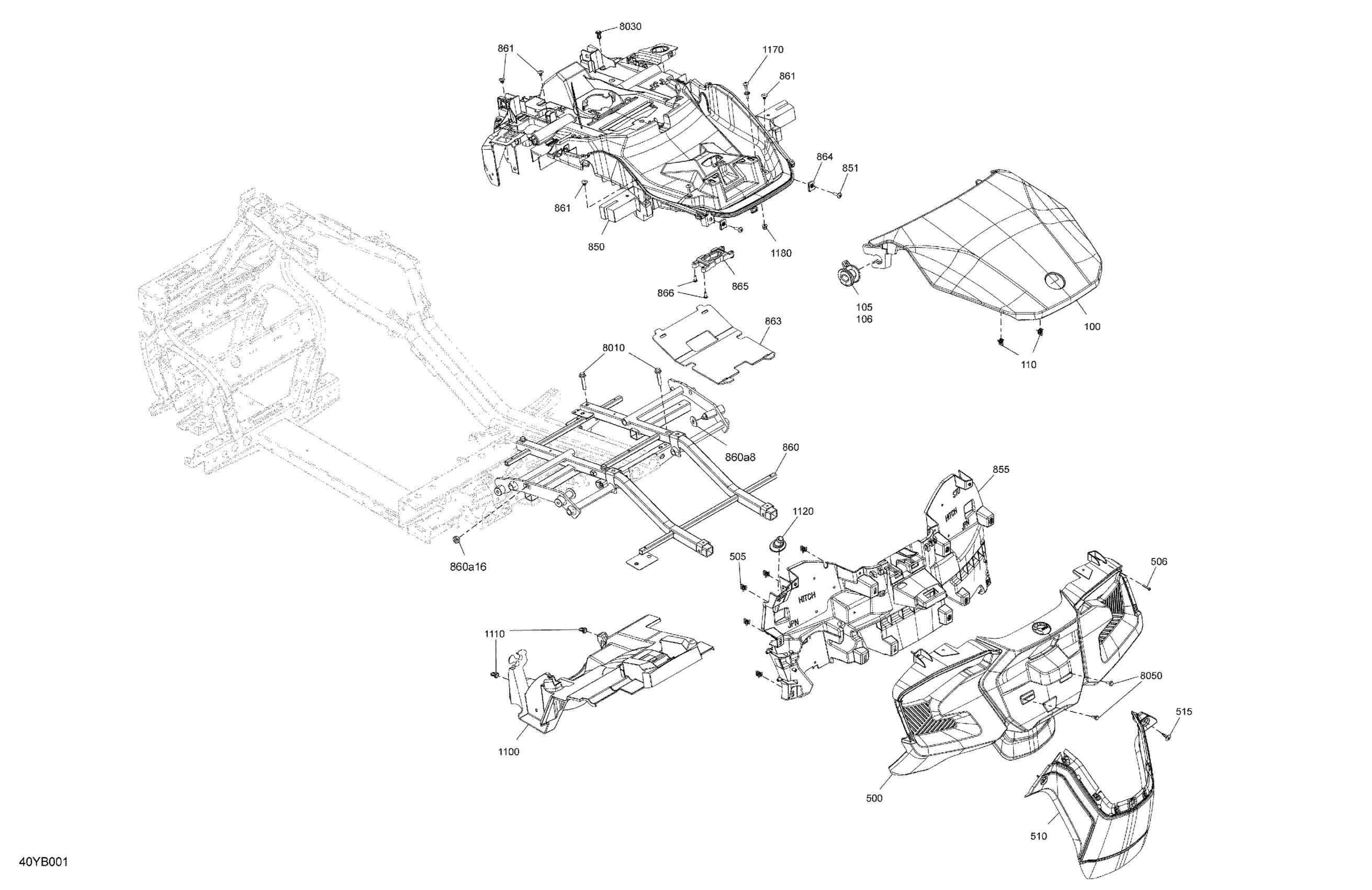

Can-Am RT - Petrol Metallic, 2022 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

100

Petrol, Rear Fairing

708003074

$255.00

105

LH Anchorage Socket

708400404

$3.00

106

RH Anchorage Socket

708400441

$3.00

110

Edge Clip

517302785

$0.70

500

Rear Fender

708302949

$205.00

505

Edge Clip

517302785

$0.70

506

Hex. Flange Screw K40 X 25

241142560

$2.17

510

Rear Fender Extention

708301747

$205.00

515

Tuflock Phillips Plastic Screw

414745900

$1.30

850

Rear Box Support

708303979

$110.00

851

Torx Truss Screw M6 X 20

250000705

$1.74

855

Rear Cargo Structure

708303308

$105.00

860

Rear Frame | Included 860 to 860a16

708303883

$350.00

860a8

Flat Washer 10 mm, Stainless

234002600

$1.85

860a16

Hexagonal Nut

233701400

$0.57

861

Pop Rivet 3/16"

293150103

$0.54

863

Rubber Protector

708400407

$15.00

864

Panel Nut M6 X 1.0

250100208

$1.07

865

LinQ Fastener

708303172

$20.00

866

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

1100

Rear Wheel Arch

708303061

$57.00

1110

Tuflok Plastic Rivet

293150230

$1.21

1120

Antenna Cap

708303169

$22.00

1170

Striker

708303392

$4.00

1180

Hex. Flange Elastic Nut M6

233261494

$1.26

8010

Hex. Flange Screw M8 X 40

207684054

$2.06

8030

Tuflok Plastic Rivet

293150230

$1.21

8050

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
