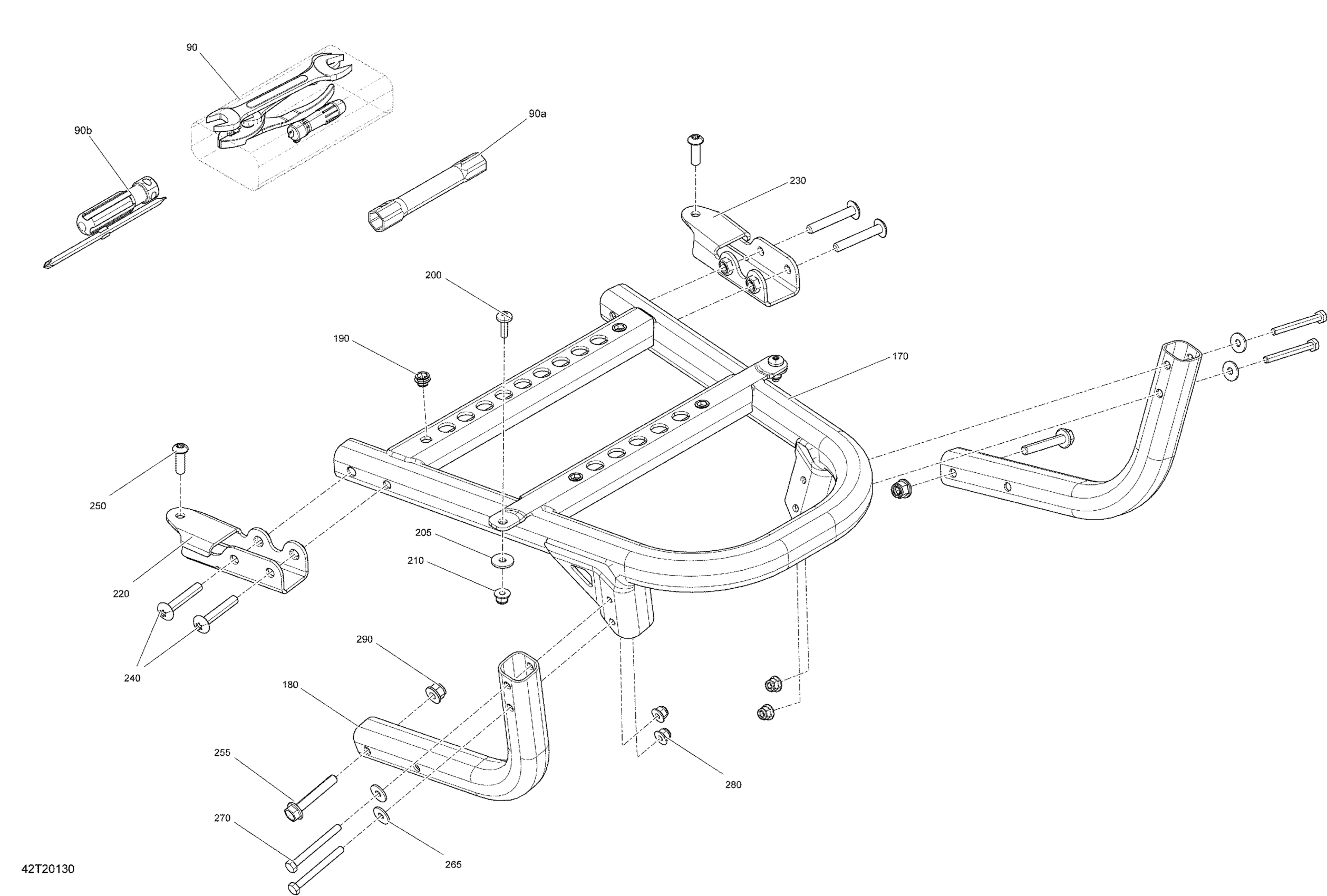

Can-Am Renegade T 1000 EFI - T Regulation, 2020 Front Storage Compartment Diagram

Description

Price

Tool Kit

704700168

$44.99

90a

Socket Wrench 14/16MM

529000085

$6.99

90b

Screw Driver

529000021

$3.99

170

Rear Bumper Ass'y

715004153

$115.35

180

Rear Tube

705004981

$32.28

190

Insert Half Hex Body M6 x 1.0

250100199

$2.54

200

Torx Screw M6 X 20

250000712

$1.74

205

Flat Washer

224061201

$1.11

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

LH Front Bracket

705004977

$32.28

230

RH Front Bracket

705004978

$32.28

240

Torx Screw M8 X 50 S.GRIP

250000844

$5.54

250

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

255

Hex. Flange Screw M8 X 50

207685044

$1.39

265

Flat Washer 6 mm

234062410

$0.64

270

Hex. Screw M6 X 60

207066044

$0.56

270

Hex. Flange Screw M6 X 60

250000778

$3.61

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

280

Hex. Flange Elastic Nut M6

233261494

$1.26

290

Hex. Flange Elastic Nut M8

233281414

$1.14
