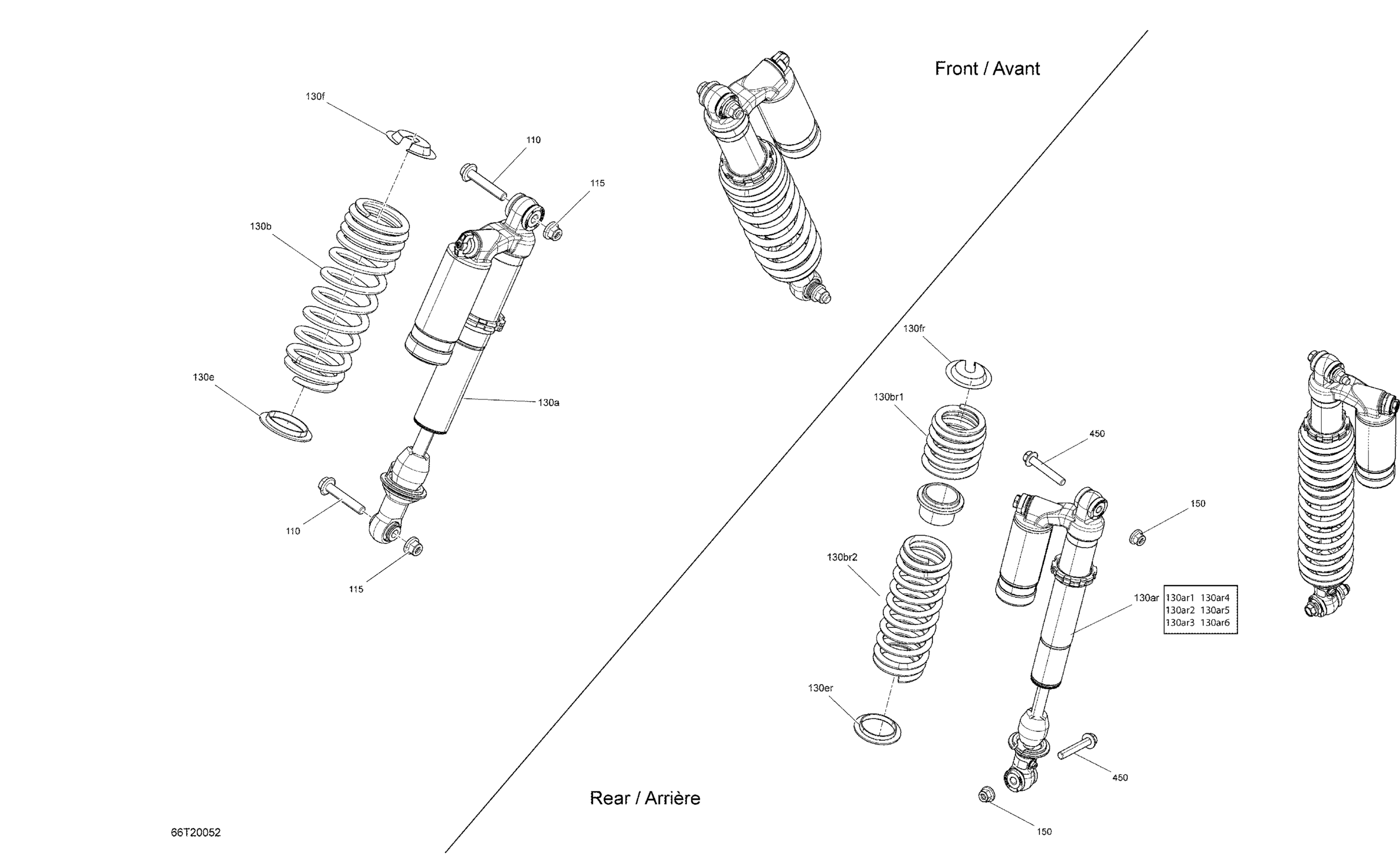

Can-Am Outlander 1000R EFI - XT_XTP_XXC - 2020 Shocks - XXC Diagram

Description

Price

110

Hex. Flange Screw M10 X 55

207605546

$1.74

115

Hex. Flange Elastic Nut M10

233201436

$1.74

130a

Front Shock Absorber | Includes 130a to 130a5

706204836

$679.99

130b

Red Spring | Liquid Gold

706203419

$93.25

130e

Spring Guide

503187500

$7.37

130f

Cap

706200785

$4.28

130ar

Rear Shock Absorber | Includes 135a to 135a5

706004492

$679.99

130br1

Compression Spring

706003677

$89.52

130br2

Red Spring | Liquid Gold

706003236

$68.63

130er

Spring Guide

503187500

$7.37

130fr

Cap

706200785

$4.28

150

Hex. Flange Elastic Nut M10

233201436

$1.74

450

Hex. Flange Screw M10 X 6

207606046

$3.38
