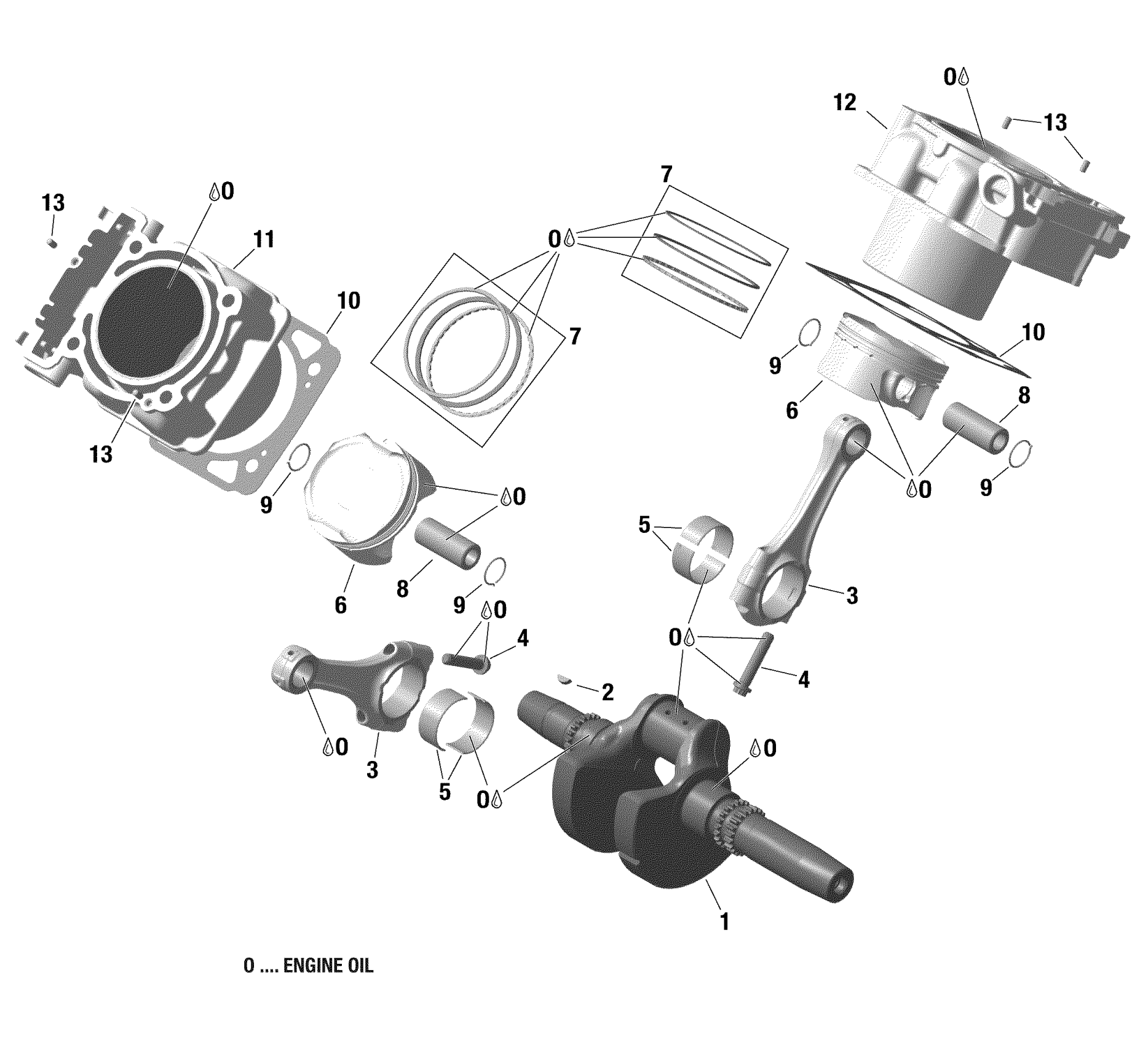

Can-Am Outlander MAX 6X6 - 1000 EFI - 2020 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

Crankshaft

420219736

$805.19

2

Woodruff Key 4 X 5

420246570

$3.19

3>4

Connecting Rod Ass'y | Includes 3 to 4

420217563

$252.21

4

Connecting Rod Screw M9 X 1

420641475

$16.39

5

Plain Bearing

420233726

$16.39

6>7

Piston Ass'y, 90.955 mm | Includes 6 to 7

420685248

$170.12

7

Piston Ring Set | 400HO

420296774

$80.57

8

Piston Pin

420216351

$25.99

9

Piston Circlip

420245436

$4.33

10

Gasket

420630210

$12.04

11

Cylinder Front

420413111

$462.66

12

Cylinder Rear

420413116

$462.66

13

Drive Pin 5 X 10

420929650

$1.34
